PUZZLE-M801

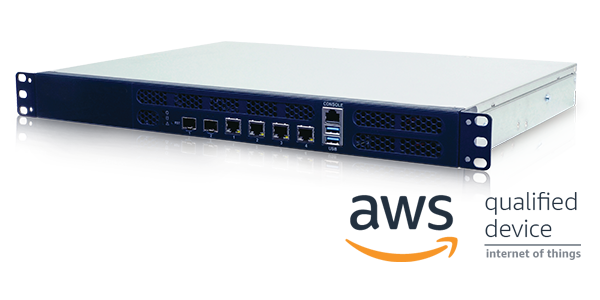

1U Rackmount Network Appliance with Marvell® Armada® 8040 ARM v8 A72 quad-core System-on-Chip

PUZZLE-M801 Network Appliance
PUZZLE-M801 Network Appliance interface front
PUZZLE-M801 Network Appliance interface
  • PUZZLE-M801 Network Appliance
  • PUZZLE-M801 Network Appliance interface front
  • PUZZLE-M801 Network Appliance interface
» Marvell® ARMADA® 88F8040 high-performance quad-core System-on-Chip processor
» 1 x 288-pin DIMM, DDR4 2400MHz, 16GB (ECC)
» 2 x 10GbE SFP+ via Marvell® ARMADA® 88F8040, 4 x GbE RJ-45 via Marvell 88E1512P
» 2 x USB 3.2 Gen 1 (5Gb/s), 1 x RJ-45 console, 1 x M.2 B key (SATA & USB 3.2 Gen 1 (5Gb/s)) with SIM holder
» 1 x PCIe x16 slot (PCIe x2 signal)
» Support open source software, such as pfSense® and OPNsense®.

Hardware Spec.

System
CPU Marvell® Armada® 8040 ARM v8 A72 4C, System-on-Chip (SoC) up to 2.0GHz
Memory 1 x DDR4 2400MHz Non-ECC UDIMM
Memory Max. Up to 16 GB
Cooling method / System Fan 2 x Cooling Fans with Smart Fan
Physical Characteristics
Rack Height 1U
Dimensions (LxWxH) (mm) 320x430x44.2
Net Weight 5 kg
Storage
Storage 1 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps)
1 x M.2(NGFF) Internal (SATA 6Gbps & USB3.1 Gen1)
1 x eMMC 32GB
I/O Interface
Ethernet 2 x SFP+ 10 GbE SFP+
4 x LAN 1 GbE RJ45
I/O Interface 2 x External USB 3.2 Gen1x1 USB3.1 Gen1 TypeA
2 x Internal USB 2.0 Pin header
Expansion 1 x PCIe x16 PCIe Gen3 x2 signal
1 x M.2(NGFF) M.2 B Key (3042/2260) (SATA 3.0 and USB 3.2 Gen 1) Support SATA SSD or 4G LTE module (USB signal)
Power
Input 100 V ~ 240 V
Power Supply 250W
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE / FCC
OS Support
OS Support Ubuntu linux-4.4.52-armada-17.10

Ordering Information

PUZZLE-M801-A1/8G-R10 1U Rackmount Network Appliance with Marvell Armada 8040 procrssor, 8GB DDR4, one 256GB SSD, four 1GbE , two 10GbE via SFP+, one PCIe expansion, RoHS
PUZZLE-M801-A1-R10 1U Rackmount Network Appliance with Marvell Armada 8040 procrssor, one DDR4 slot, four 1GbE , two 10GbE via SFP+ , one PCIe expansion, RoHS

Package Contents

Package Content
  • .1 x Power cord

  • .2 x Rack mounting ears

  • .6 x Screws for rack mounting ears

  • .USB to console cable (Option)

  • .RS-232 to console cable (Option)
