High Performance with Low Power
Intel® Celeron® J6412/N6210 On-board SoC

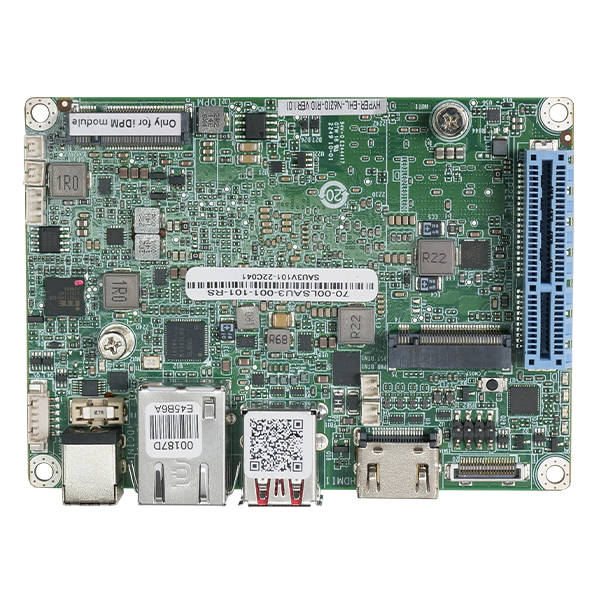

Equipped with Intel® Celeron® J6412/N6210 processor and 4GB on-board LPDDR4X, the HYPER-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation, it improves up to 1.7x on CPU and up to 2x on graphics, and gets up to 74% higher benchmark score. With the feature of low power and excellent throughput, the HYPER-EHL can benefit IoT edge computing by saving lots of energy while maintaining high computation.
Intel® Celeron® J6412/N6210 processor is available and supported for an extended period (based on Intel IOTG Roadmap). This long-term availability can benefit integrators who are looking to maximize their return on investment.
PCI Express Gen3 Slot Allows
Extensive I/O and Function Expansion
The HYPER-EHL features a PCIe Gen3 x4 (x4 signal) slot, which is a new design of IEI 2.5" single board computer to provide easy integration of PoE cards, video capture cards, I/O cards or the compatible IEI riser cards for more function expansions. IEI riser cards are available with different orientations and configurations, offering great flexibility and expandability. Each of the riser card came with a metal holder for enhancing stability, not only the riser card itself but also the expansion card installed on it.
Dual Display Outputs Support Graphics in 4K
The integrated Intel® UHD Graphics, featuring max. 16 EUs, up to 2x performance improvement and 4K support, makes the HYPER-EHL have the ability to drive a maximum resolution of 4kp30 on two simultaneous displays through the HDMI™ 1.4 port and the IEI-specific iDPM slot.
2.5GbE Network Enables Efficient Data Transfer
The RJ45 LAN port provides 2.5GbE connectivity by the integrated Intel® I225V controller. It accelerates overall network performance, delivers lightning-fast speed, and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of edge IoT to communicate between devices efficiently.
NVMe SSD via M.2 PCIe Gen3
Ensures Fast and Stable Data Transfer
SSD is widely used in industrial applications to provide reliable data storage due to its features of shock and temperature resistance, long lifetime and high stability. The equipped M.2 2242 M-key socket comes with PCI Express® Gen3 x2 bandwidth and supports up to 16Gbps data-transfer speeds, making them the perfect choice for installing NVMe SSD to provide fast data access in rugged environment.
Low-profile SATA 6Gb/s Port
with Data and Power Integrated
SATA 6Gb/s SSD or HDD is supported through the iSATA connector that provides both SATA and SATA power (+5V) signals in a small footprint. This low-profile connector can save space in system integration while enabling high-speed data transfer between devices at the edge.
Riser Card (R2S)
Riser Card (R4S)
Riser Card (L2S)
Riser Card (L4S)
|LPDDR4x-3200Gbps 4GB,up to 8GB
|Dimensions (LxWxH) (mm)
|100mm x 72mm
|1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2)
|1 x SATA : iSATA 6Gb/s
|1 x HDMI™ : up to 4096x2160 @ 30Hz
|1 x iDPM : support iEi eDP/ LVDS/ VGA module
1 x LAN -
LAN1: Intel® I225V 2.5GbE controller
|2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)
|1 x Internal RS-232/422/485 : 1x9 pin, P=1.25
|2 x Internal USB 2.0 : 2x4 pin, P=2.0
|1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2)
|1 x PCIe x4 (PCIe Gen3 x4)
(Intel® Celeron® J6412 CPU with 4 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled)
ATX/AT power supply
Support AT/ATX mode
|5% ~95%, non-condensing
|PICO-ITX SBC supports Intel® two-core Celeron® N6210 1.2GHz on-board SoC, with 4GB LPDDR4x memory on board default,with HDMI™,iDPM,M.2 M key,USB 3.2,iSATA 6GB/s,COM,PCIe x4 for riser card and RoHS
|PICO-ITX SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC, with 4GB LPDDR4x memory on board default, with HDMI™,iDPM,M.2 M key,USB 3.2,iSATA 6GB/s,COM,PCIe x4 for riser card and RoHS
