Panel PC & Monitor

IEI panel PCs & monitors offer cost-effective, stable and easy to use solution to collect, transfer, process and manage data.
比較狀態 :
已設定.要比較機種數 :
已設定.要比較機種 :
列表區塊.Now 位置狀態 :
列表區塊.單位區塊寬 :
列表區塊.Now X 位置 :
列表區塊.目標 X 位置 :
顯示框寬 :
列表寬 :

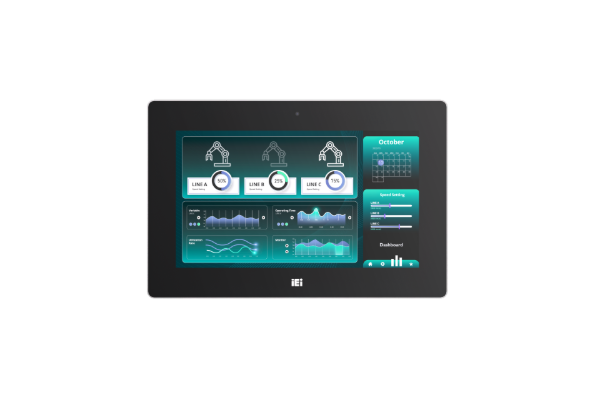

Panel PC para Industria Pesada

PPC Series

*8"~18.5" heavy industrial Panel PC

*IP65 front panel protection

*Aluminum die-casting front bezel

*Slim bezel ideal for panel mouting and rack mounting

*PCAP 10-point multi-touch or resistive touch window

*IEEE 802.3 bt PoE PD available

Intel® Haswell Platform
CPU / Chipset
Display
Features

PPC-F15A-H81

Intelligent Industrial Panel PC
LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
LCD Size:15”(4:3)
Brightness(cd/m2):400
Max Resolution:1024 (W) x 768 (H)
LCD Size:15”(4:3)
Brightness(cd/m2):400
Max Resolution:1024 (W) x 768 (H)

PPC-F17A-H81

Intelligent Industrial Panel PC
LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
LCD Size:17”(5:4)
Brightness(cd/m2):350
Max Resolution:1280 (W) x 1024 (H)
LCD Size:17”(5:4)
Brightness(cd/m2):350
Max Resolution:1280 (W) x 1024 (H)
Intel® Bay Trail Platform
CPU / Chipset
Display
Features

PPC-F08B-BT

8” Fanless Panel PC with Intel® Bay Trail Solution
Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
LCD Size:8”(4:3)
Brightness(cd/m2):500
Max Resolution:800(W) x 600(H)
LCD Size:8”(4:3)
Brightness(cd/m2):500
Max Resolution:800(W) x 600(H)

PPC-F10B-BT

5.7”/8”/10.4” Fanless Intel® Bay Trail Solution
Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
LCD Size:10.4”
Brightness(cd/m2):400
Max Resolution:800(W) x 600(H)
LCD Size:10.4”
Brightness(cd/m2):400
Max Resolution:800(W) x 600(H)

PPC-F12B-BT

12” Fanless Intel® Bay Trail Solution
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
LCD Size:12.1""""(4:3)
Brightness(cd/m2):600
Max Resolution:1024 (W) x 768 (H)
LCD Size:12.1""""(4:3)
Brightness(cd/m2):600
Max Resolution:1024 (W) x 768 (H)

PPC-F15B-BT

15” Fanless Intel® Bay Trail Solution
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
LCD Size:15""""(4:3)
Brightness(cd/m2):400
Max Resolution:1024 (W) x 768 (H)
LCD Size:15""""(4:3)
Brightness(cd/m2):400
Max Resolution:1024 (W) x 768 (H)

PPC-F17B-BT

17” Fanless Intel® Bay Trail Solution
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
LCD Size:17""""(5:4)
Brightness(cd/m2):350
Max Resolution:1280 (W) x 1024 (H)
LCD Size:17""""(5:4)
Brightness(cd/m2):350
Max Resolution:1280 (W) x 1024 (H)

PPC-F19B-BT

19” Fanless Intel® Bay Trail Solution
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
LCD Size:19” (5:4)
Brightness(cd/m2):350
Max Resolution:1280 (W) x 1024 (H)
LCD Size:19” (5:4)
Brightness(cd/m2):350
Max Resolution:1280 (W) x 1024 (H)
Intel® Whiskey Lake-U Platform
CPU / Chipset
Display
Features

PPC-F15D-ULT5

15” 8th gen Intel® Whiskey Lake-U Industrial Panel PC
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
LCD Size: 15”
Brightness(cd/m2): 450
Max Resolution: 1024 x 768
LCD Size: 15”
Brightness(cd/m2): 450
Max Resolution: 1024 x 768

PPC-F17D-ULT5

17” 8th gen Intel® Whiskey Lake-U Industrial Panel PC
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
LCD Size: 17”
Brightness(cd/m2): 350
Max Resolution: 1280 x 1024
LCD Size: 17”
Brightness(cd/m2): 350
Max Resolution: 1280 x 1024

PPC-FW15D-ULT5

15.6” 8th gen Intel® Whiskey Lake-U Industrial Panel PC
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
LCD Size: 15.6”
Brightness(cd/m2): 400
Max Resolution: 1366 x 768
LCD Size: 15.6”
Brightness(cd/m2): 400
Max Resolution: 1366 x 768

PPC-FW19D-ULT5

18.5” 8th gen Intel® Whiskey Lake-U Industrial Panel PC
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz, Intel® Whiskey Lake-U
LCD Size: 18.5”
Brightness(cd/m2): 400
Max Resolution: 1366 x 768
LCD Size: 18.5”
Brightness(cd/m2): 400
Max Resolution: 1366 x 768
