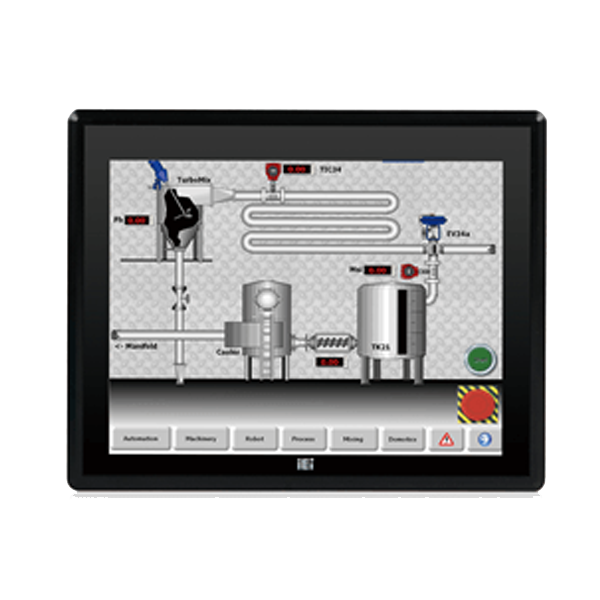

PPC-F17A-H81

Intelligent Industrial Panel PC

» Scalable Intel® H81 chipset supports LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Projected capacitive multi-touch
» Dual full-size PCIe Mini card expansion
» AC/DC power input options (DC model by build to order manufacturing)

Hardware Spec.

Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 350
Contrast Ratio 800:1
LCD Size 17”(5:4)
Max Resolution 1280 (W) x 1024 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -10°C~50°C (14°F~122°F)
Storage Temperature -20°C~60°C (-4°F~140°F)
I/O Interface
I/O Ports and Switches 2 x RJ-45 LAN Port
2 x USB 3.0
4 x USB 2.0
1 x HDMI™ output
4 x RS-232
1 x RS-422/485
1 x VGA output
1 x AC/DC power plug (DC model is by build to order manufacturing)
1 x AT/ATX switch
1 x Clear CMOS
1 x Reset button
1 x Power switch
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.26 x 0.26
Viewing Angle (H-V) 170° / 160°
Physical Characteristics
Cutout Dimensions 323 x 390
Dimensions (LxWxH) (mm) 341.4 x 408.4 x 73.8
Power
Power Supply AC input ATX power supply
220W power supply
Input: 90VAC-264VAC, 50/60Hz
Output (max.): 3.3V@10A, 5V@14A, 12V@14A, -12V@0.3A
Touch
Touch Controller 5-wire resistive type single touch window (Penmount 6000), 3H
Touch Screen 2-point projected capacitive touch window (EETI EXC7200), 6H
Weight
Weight 7.5/10.7 (kg)

Ordering Information

PPC-F17AA-H81i-i5/4G/R-R15 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset, Core i5 Quad Core i5-4570S Processor (6M Cache, up to 3.60 GHz), TDP 65W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622C, resistive touch window with AG coating, R15
PPC-F17AA-H81i-P/4G/R-R15 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset, Intel® Pentium® Processor G3420 (3M Cache, 3.20 GHz), TDP 53W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622C, resistive touch window with AG coating, R15

Package Contents

Package Content
  • 1 x Power Cord (Depends on shipping region)

  • 1 x Screw Kit
