32102-045700-100-RS

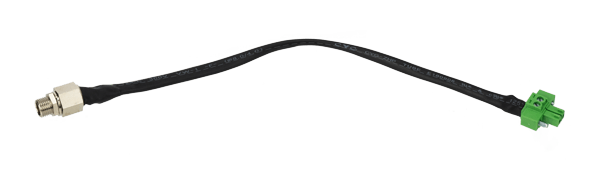

Female DC connector to 2-pin terminal block connectors power cable

» 18 AWG fine copper wires with pre-made DC jack power socket
» No soldering required, easy to use
» Product Length: 200 mm

Hardware Spec.

General
Output Connector Connector 1: lockable female DC connector Ø5.5/Ø2.5
Connector 2: 2-pin screw terminal block P=3.5 180°
Dimensions
Dimensions Length: 200 mm

Ordering Information

32102-045700-100-RS WIRE CABLE;POWER CABLE;;2;200mm;18AWG;(A)DC JACK 5.5*2.5;(B)TERMINAL BLOCK 2P P=3.5 180°;;;;;;;;;;;;SHANGHAI YING YU;RoHS
