AFL3P-W10MSR-U

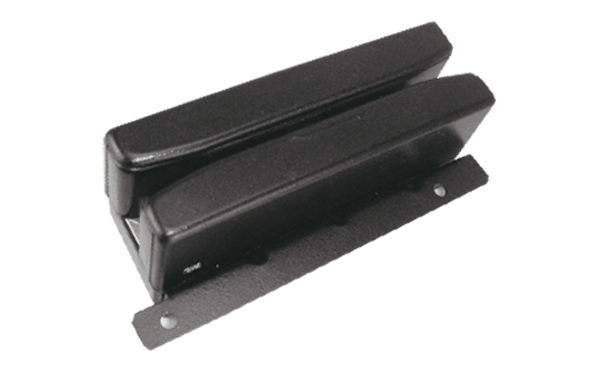

Magnetic card reader with mounting bracket

End of Life

End of Life Notice

* Effective Date: 2021/12/22

• Magnetic card reader with mounting bracket
• Scan Rate: 100-1000mm/sec
• Magnetic Card: IISO 7810-7813 and JISII
• Tracks T1&T2&T3: Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters
• Life Cycle: 300,000 passes

Hardware Spec.

Environment
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 70°C
Input
Voltage 5V DC USB
General
MTBF 24,000 hours
Dimensions 90.0mm X 29.00mm X 38.00mm
Material
Material Plastic
Weight
Weight 61.2 g (net weight)
Key Features
Key Features Magnetic card reader with mounting bracket
Scan Rate: 100-1000mm/sec
Magnetic Card: IISO 7810-7813 and JISII
Tracks T1&T2&T3: Decording Density T1/T2/T3: 210/75/210 BPI Capacity T1/T2/T3: 79/40/107 Characters
Life Cycle: 300,000 passes

Ordering Information

AFL3P-W10MSR-U-R10 Magnetic card reader with USB interface, for AFL3-08A-BT/AFL3-W10A-BT/AFL3-12A-BT/AFL3-W15A-BT/AFL3-W15B-H81, R10
