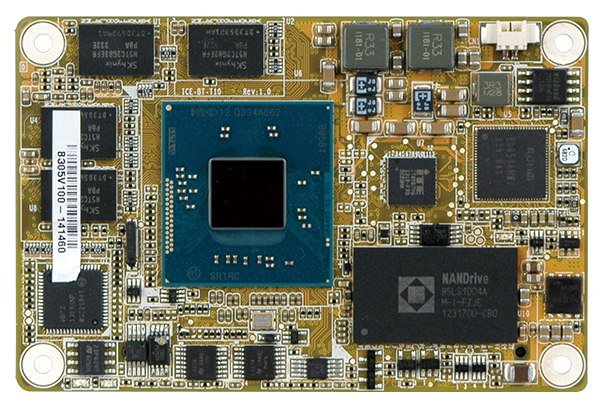

ICE-BT-T10

COM Express Rev 2.1 Mini Size Type 10 Module, Intel® 4th Generation Atom™ Processor,

  • Overview

    ● Intel® 22nm Atom™ on-board SoC supported
    ● Type 10 connector pinout according to COM.0 R2.1
    ● Supports 2 GB 1066/1333 MHz DDR3L memory
    ● Optional soldered down 4 GB SSD
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support wide range operating temperature: -40°C to +85°C
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
      Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
      Memory2 GB soldered down 1066/1333 MHz DDR3L memory
      Memory Max.8GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)84 X 55
      Net Weight150g
      Storage
      Storage2 x SATA :signal to baseboard
      Optional soldered down SSD up to 64 GB (SATA port 1)
      I/O Interface
      Display Output1 x VGA :up to 2560x1600@60Hz
      2 x Display Port :1 x DDI DisplayPort/HDMI/DVI (DP up to 2560x1600@60Hz / HDMI up to
      1920x1080@60Hz)
      1 x DDI: Embedded DP (up to 2560x1600@60Hz)
      EthernetDescription: Intel® I210-AT GbE controller (Intel® I210-IT GbE controller with W2 sku)
      AudioDescription: High-definition Audio interface to baseboard
      I/O Interface4 x Internal USB 2.0 :singnal to basedoard
      1 x Internal USB 3.2 Gen1x1 :singnal to basedoard
      Expansion3 x PCIe x1 :singnal to basedoard
      Power
      Power Consumption12V@0.43A, Vcore_12V@0.9 A (Intel® Atom™ E3845 CPU, 2 GB 1333 MHz DDR3L memory)
      Environment
      Operating Temperature-40°C ~ 85°C
      Storage Temperature-40°C ~ 85°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      ICE-BT-T10-E38451W2-R10 COM Express Basic Type 10 module supports Intel® Atom™ Quad-Core Processor E3845(10W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, -40°C ~ 85°C and RoHS
      ICE-BT-T10-E38251W2-R10 COM Express Basic Type 10 module supports Intel® Atom™ Dual-Core Processor E3825(6W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, -40°C ~ 85°C and RoHS
      ICE-BT-T10-E38251-R10 COM Express Basic Type 10 module supports Intel® Atom™ Dual-Core Processor E3825(6W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, RoHS
      ICE-BT-T10-E38151-R10 COM Express Basic Type 10 module supports Intel® Atom™ Songle-Core Processor E3815(5W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, RoHS
      ICE-BT-T10-E38451-R10 COM Express Basic Type 10 module supports Intel® Atom™ Quad-Core Processor E3845(10W), On-board 2GB DDR3L, VGA, DDI, GbE, SATA, USB 3.0 and HD Audio, RoHS
    • Package Contents

      • 1 x ICE-BT-T10 single board computer

      • 1 x Heatsink

      • 1 x QIG
