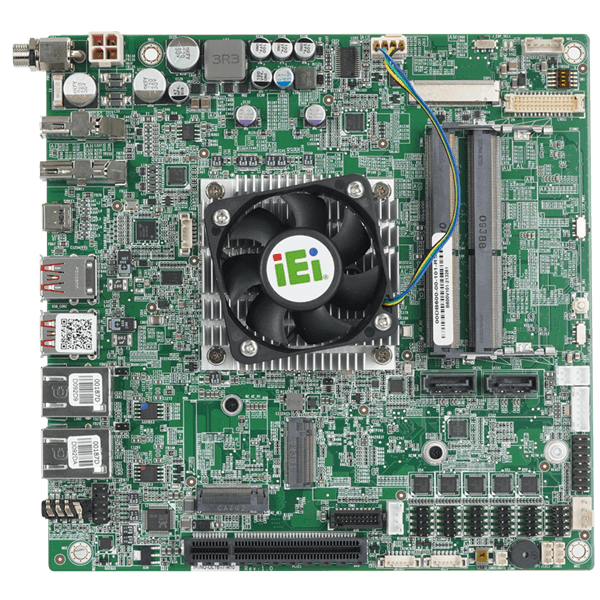

tKINO-ULT6

Thin Mini-ITX SBC supports 11th Gen. Intel® Core™ Processor Family (Tiger Lake-UP3), 9~36V DC input, Quadruple Independent Display, SATA 6Gb/s, Dual Intel® 2.5GbE, USB4, M.2, HD audio and RoHS

  • Overview

    ● Thin Mini-ITX form factor with 11th Gen. Intel® Tiger Lake-UP3 Processor support DDR4-3200 memory
    ● Wide range 9~36V DC Input
    ● Support quadruple independent displays (HDMI, DP, eDP/LVDS, USB4)
    ● Dual Intel® 2.5GbE LAN
    ● M.2 A key for WIFI+Bluetooth (PCIe x1/USB 2.0), M.2 M key for Storage (PCIe x2/SATA)
    ● PCIe x8 Gen 4.0 slot (x4 signal)
  • Features


    Breaking the Boundaries of Performance

    The Best Thin Mini-ITX Bring Industry-leading, Graphics and AI performance

    tKINO-ULT6


    Thin Mini-ITX form factor with 11th Gen. Intel® Core™ Processor Family (Tiger Lake-UP3)

    11th Generation Intel® Core™ mobile processors with Iris Xe graphics

    IEI-tKINO-ULT6_tigerlake-CPU-embedded-computer


    11th Gen Tiger Lake-UP3 CPU & Graphic Performance

    Tiger Lake is Intel's codename for the 11th generation Intel Core mobile processors based on the new Willow Cove Core microarchitecture, manufactured using Intel's third-generation 10 nm process node known as 10SF ("10 nm SuperFin"). Tiger Lake replaces the Ice Lake family of mobile processors, representing an Optimization step in Intel's process–architecture–optimization model. Tiger Lake processors launched in 2020 are part of the Tiger Lake U family and include dual-core and quad-core 9 W (7-15 W) TDP and 15 W (12-28 W) TDP models.

    V.S 2019 Whiskey Lake U processor:

    • offer ~22% better single threaded
    • ~ 32% better multi-threaded
    • 3D performance : 3.5x times better performance over Whiskey Lake U processor


    V.S 2017 Kaby Lake U processor:

    • offer ~41% better single threaded
    • ~ 95% better multi-threaded
    • 3D performance : 3.1x times better performance over Kaby Lake U processor


    USB4 higher transfer speeds, improved bandwidth & backward compatibility

    USB 4 features of IEI Embedded Computer
    • Two-lane operation with up to 40 Gbps operation using the USB Type-C connection
    • More efficient sharing between data and display protocols
    • Backward compatibility with USB 3.2, USB 3.1, USB 3.0, USB 2.0, and even Thunderbolt 3.

    2.5GbE LAN

    • 2.5 times faster
      2.5GbE is 2.5 times faster than standard Ethernet (1GbE), increasing network performance to boost productivity.
    • Works with existing cables
      No special cables or connectors are required to take advantage of 2.5GbE. Simply use your existing CAT5e cables as normal with your new 2.5GbE infrastructure.
    • More affordable
      If you can’t budget a 10GbE upgrade at this time, the more affordable 2.5GbE provides a notable improvement in current Ethernet speeds.

    Application Fields

    Digital Signage Application

    Digital Signage

    smart retail store

    Smart Retail Store

    Surveillance for face recognition

    Surveillance

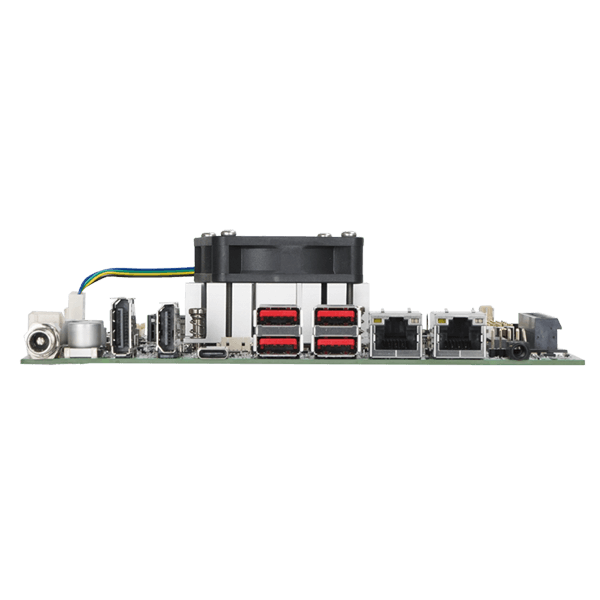

    I/O Interface

    Dimension of IEI tKINO-ULT6 Mini-itx tiger lake CPU Industrial Motherboard

    Dimensions

    Dimension of IEI tKINO-ULT6 Mini-itx tiger lake CPU Industrial Motherboard
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor Mini-ITX Motherboard
      System
      CPU 11th Gen. Intel® mobile Tiger Lake-UP3 on-board processor
      Intel® Core™ i7-1185G7E (up to 4.4GHz, quad-core, 12M Cache, TDP=28/15/12W)
      Intel® Core™ i5-1145G7E (up to 4.1GHz, quad-core, 8M Cache, TDP=28/15/12W)
      Intel® Core™ i3-1115G4E (up to 3.9GHz, dual-core, 6M Cache, TDP=28/15/12W)
      Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP=15W)
      Memory 2 x SO-DIMM DDR4 3200MHz, system maximun up to 64GB
      Memory Max. Up to 64GB
      Cooling method / System Fan 1 x CPU Cooler
      Physical Characteristics
      Dimensions (LxWxH) (mm) 170mm x 170mm
      Net Weight GW:900g / NW:400g
      Storage
      Storage 1 x M.2(NGFF)
      2 x SATA
      I/O Interface
      Display Output 1 x Display Port
      1 x eDP
      1 x HDMI
      1 x LVDS
      Ethernet 2 x LAN: 2.5GbE LAN (Intel® I225-V)
      Audio 1 x Front Audio(2x5-pin)
      HD Audio: Realtek ALC888S HD audio codec
      1 x Line out
      1 x Mic
      I/O Interface 1 x DIO: 8-bit digital I/O (2x5 pin)
      5 x External USB 3.2 Gen2x2: 4 x USB 3.2 Gen2, 1 x USB 4
      4 x Internal RS-232(2x5 pin, P=2.0)
      1 x Internal RS-232/422/485(2x5 pin, P=2.0) (RS-485 support AFC)
      1 x Internal RS-422/485(2x5 pin, P=2.0) (RS-485 support AFC)
      4 x Internal USB 2.0(2x4 pin, P=2.0)
      1 x PS/2(1x6 pin)
      Expansion 2 x M.2(NGFF): 1 x M.2 2230 A key (PCIe x1/USB 2.0), 1 x M.2 2242/2280 M key (PCIe x2/SATA)
      1 x PCIe x8: Open-ended Slot(with x4 Gen4.0 signal)
      Other Features
      TPM 1 x TPM 2.0 connector (2x10 pin) (SPI interface)
      Power
      Input 9~36V DC input
      1 x Internal power connector (2x2 pin)
      1 x External DC power Jack (Ø5.5mm)
      Power Consumption 12V@6.48A (Intel® Core™ i7-1185G7E up to 4.4GHz CPU with 16GB (8GB x 2) DDR4-3200 memory running in 2.8GHz)
      Environment
      Operating Temperature -20°C ~ 60°C
      Storage Temperature -30°C ~ 70°C
      Humidity 5% ~ 95%, non-condensing
      Certifications
      Safety & EMC CE/FCC compliant
    • Ordering Info.

      Item No. Description
      tKINO-ULT6-i7-R10 Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Core™ i7-1185G7E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS
      tKINO-ULT6-i5-R10 Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Core™ i5-1145G7E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS
      tKINO-ULT6-i3-R10 Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Core™ i3-1115G4E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS
      tKINO-ULT6-C-R10 Thin Mini-ITX SBC supports Intel® 11th Gen Tigerlake-UP3 Mobile Celeron® 6305E Proccessor, 9~36V DC input, Quadruple Independent Display, HDMI, DP, eDP, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2, HD audio and RoHS
    • Package Contents

      • 1 x tKINO-ULT6 SBC with CPU cooler

      • 1 x SATA cable

      • 1 x I/O shielding

      • 1 x QIG
