IOWA-LX

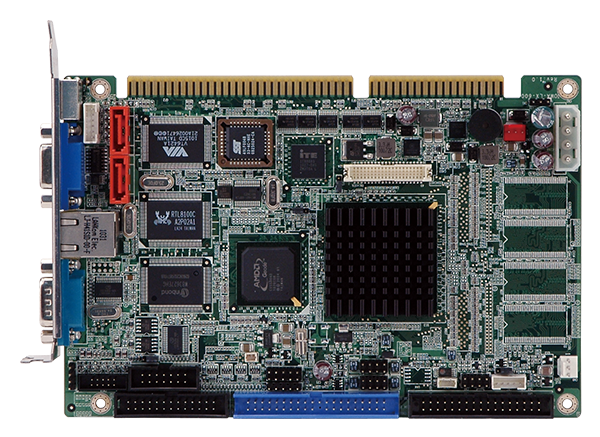

Half-size Pure ISA CPU Card with On-board AMD Geode™ LX600 Processor (366 MHz), 128KB L2 cache, On-board 128MB Memory

  • Overview

    ● ISA CPU card with on-board AMD Geode™ LX600 processor (366 MHz), 128KB L2 cache
    ● Flexible on-board DDR SDRAM and one SO-DIMM slot
    ● Enchanced TTL, RS-232, RS-422/485 and USB 2.0 interfaces for extened connectivities
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerN/A
      Environment
      Humidity10% ~ 95%, non-condensing
      Operating Temperature-10ºC ~ 60ºC
      Expansion Slots
      Expansion SlotsISA bus supported via golden finger
      I/O Interface
      AudioRealtek ALC203 with AC’97 codec
      Digital I/O8-bit digital I/O, (4-bit input/4-bit output)
      DisplaySingle HD VOP 2.0 output
      1920x1440 CRT output
      1600x1200 TFT output
      Ethernet10/100Mbps Realtek RTL8100C Ethernet controller
      I/O Interface
      I/O Interface1 x KB/MS
      1 x LPT
      1 x RS-232
      1 x RS-422/485
      1 x VGA
      1 x Internal RS-422/485
      2 x Internal RS-232
      4 x Internal USB 2.0
      Power
      Power consumption5V@1.51A, 5VSb@0.09A
      (On-board AMD Geode™ LX 600 CPU 366MHz with 128MB 200MHz onboard
      DDR memory and 512MB 333MHz DDR memory)
      Storage
      Storage1 x CF Type II
      1 x FDD
      1 x IDE
      2 x SATA with RAID 0/1 function
      System
      ChipsetAMD Geode™ CS5536
      CPUAMD Geode™ LX600 processor (366MHz), 128KB L2 cache
      CPU SocketOn Board
      Memory Max.On-board 128MB (max.) 200/266MHz DDR SDRAM supported
      One 200-pin 512MB (max.) 200/266MHz DDR SDRAM supported
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255sec. system reset
    • Ordering Info.

      Item No. Description
      IOWA-LX-600S-R10Half-size pure ISA CPU card with on-board AMD Geode™ LX 600 processor at FSB 366MHz, 128KB L2 cache, 128MB memory on board include VGA, LAN, USB2.0, SATA, CF, COM, LPT and Audio, RoHS
      IOWA-LX-600-R10Half-size pure ISA CPU card with on-board AMD Geode™ LX 600 processor at FSB 366MHz, 128KB L2 cache, 128MB memory on board include VGA, LAN, USB2.0, CF, COM, LPT and Audio, RoHS
    • Package Contents

      • 1 x IOWA-LX-600 single board computer

      • 1 x Audio cable (P/N: 19800-000111-RS)

      • 1 x IDE flat cable (P/N: 32225-002000-200-RS)

      • 1 x KB/MS Y cable (P/N: 32006-000300-100-RS)

      • 1 x USB cable (P/N: 19800-003100-300-RS)

      • 1 x Mini jumper pack

      • 1 x One Key Recovery CD

      • 1 x QIG (Quick Installation Guide)

      • 1 x Utility CD
