• Overview

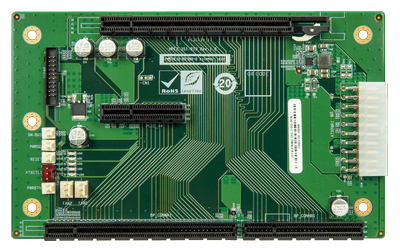

    5-slot PICMG 1.3 backplane for half-size SBC, with one PCIe x16 Slot and one PCIe x4 Slot, RoHS
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Power
      Input 1* ATX power connector (20pin)
      Dimensions
      Dimensions 175.23 x 107.19 (mm)
      Total Slot
      Total Slot 3
      Expansion Slots
      PCIe x 16 1
      PCIe x 4 1
      PSU Type
      PSU Type 20 pin ATX
      Chassis
      Chassis PAC-400AI
      RACK-500AI
      PR-1500G
    • Ordering Info.

      Item No. Description
      HPE2-3S1-R10 5-slot PICMG 1.3 backplane for half-size SBC, with one PCIe x16 Slot and one PCIe x4 Slot, RoHS
