IVS-110-AL

Vehicle Fleet Management System

  • Overview
    ● Intel® Apollo Lake processor
    ● Dual SIM slot
    ● Optional 3G/Wi-Fi
    ● 16 x DI/DO
    ● 1 x HDMI (lockable), 1 x VGA
    ● Built-in GPS function
    ● E-Mark certification
    ● Built-in OBD-II/J1939
    ● IP4X protection

  • Features

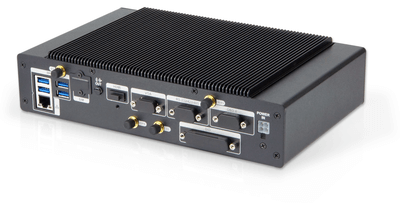

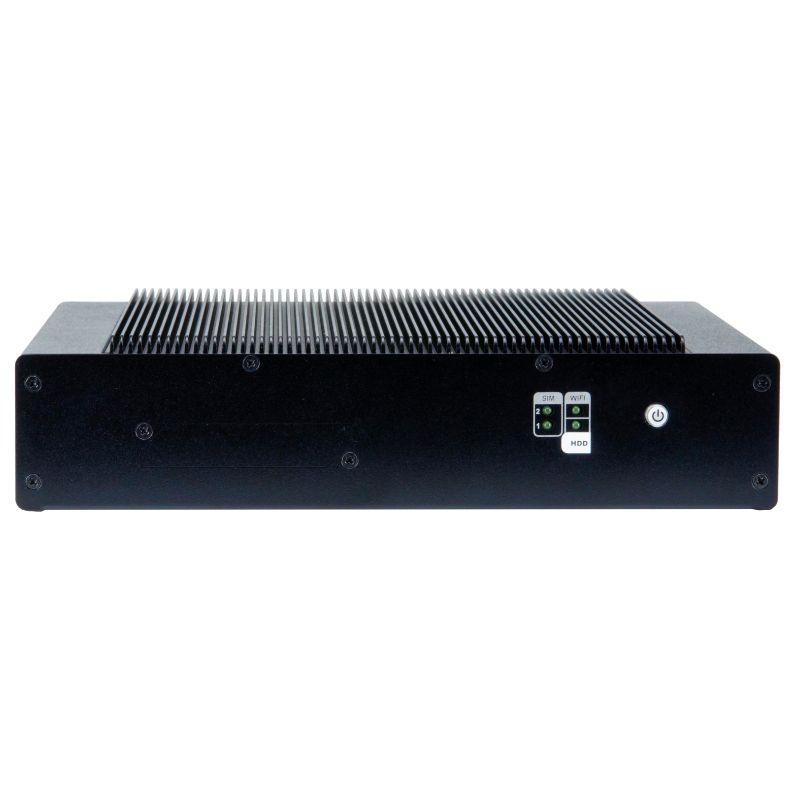

    IVS-110-AL in-vehicle-computer

    IVS-110-AL in-vehicle computer for fleet management tracking system

    fleet-management-tracking-system

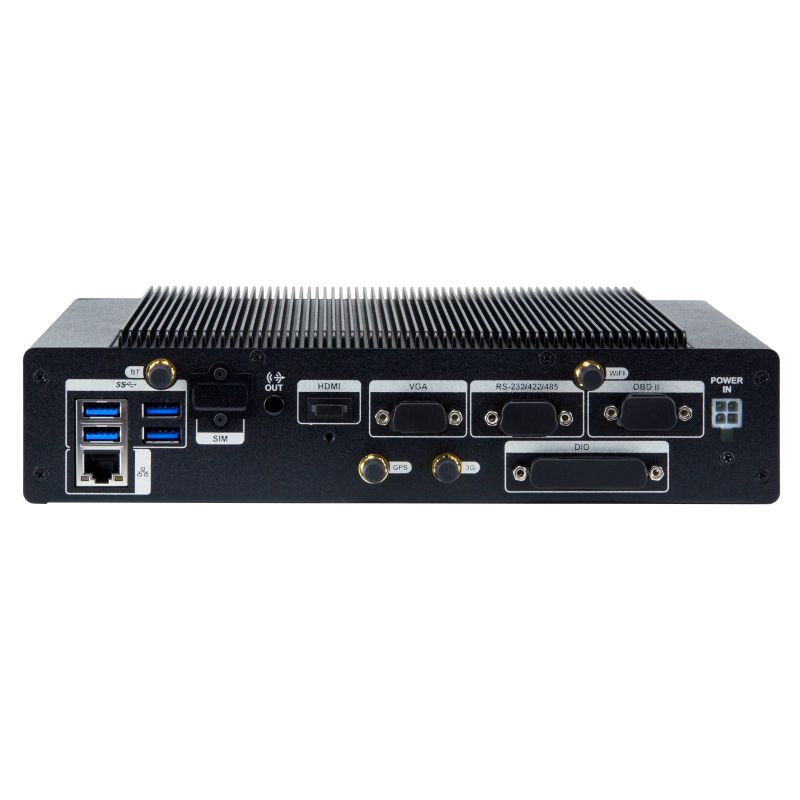

    Fully Integrated I/O

    IVS-in-vehicle-computer-IO

    Dimensions (Unit: mm)

    ivs-110-AL in-vehicle computer dimension

    In-Vehicle Computer Introduction : IVS Series

    The IVS series in-vehicle computer is designed with reliable performance for harsh environments. Rich I/O ports are provided to connect with multiple peripheral devices in vehicle for different applications.

    in-vehicle-computer-for-public-transportation-video-surveillence

    Wide Range Temperature

    IEI fanless product series has leading-edge thermal design and has been tested under extreme temperature conditions in order to ensure that IEI fanless products can work in any harsh environment.

    ivs-in-vehicle-computer-operating-temperature
    in vehicle box pc with e-mark

    E-mark Certification

    All vehicles, vehicle parts, and electronic products for the car must be enforced EMC testing. IEI IVS and IKARPC In-Vehicle series product all get E-Mark certification which are required for the European market.

    Vibration and Shock Resistance

    In-vehicle systems must be able to withstand the shock and vibration that comes with driving a vehicle. IEI transportation series meet the requirement for different environments and has passed particular verification dependent on MILSTD-810G 514.5 standard, EN61373 for railway market, EN60721 for in-vehicle market.

    MIL-STD-810F IEI vehicle box pc
    MIL-STD-810F IEI vehicle box pc-2
    in-vehicle-box-pc-power-management

    Particular Power Solution

    We design wide power input to prevent surge when starting engine. We develop power management for users. For in-vehicle market, we design wide DC input and ACC power to ensure users can operate the system well.

    vehicle box pc power management solution

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor *CPU: Intel® Atom™ x7-E3950 Processor (quad-core 2.0GHz, 12W TDP)
      *Chipset: SoC
      *System Memory: 1 x 204-pin DDR3L SO-DIMM. 4GB pre-installed
      *Communication
      WLAN: PCIe Mini Wi-Fi 802.11 a/b/g/n/ac (optional)
      Bluetooth: BT 4.0/3.0+HS (combo with WLAN optional module)
      WWAN: PCIe Mini WCDMA/HSDPA/HSUPA (optional)
      GPS: On board GPS
      *Safety/EMC: CE/FCC/E-Mark/IP rating : IP 4X compliant
      *Supported OS: Microsoft® Windows 10 IoT Enterprise
      I/O Interface
      I/O Ports 4 x USB 3.0
      1 x RJ-45 PCIe GbE by Intel® I211
      1 x RS-232/422/485 (BIOS configuration)
      1 x 16-bit digital I/O (8-bit input / 8-bit output)
      1 x DB9 OBD-II/J1939
      2 x Display -
      >> 1 x VGA (Up to 1920 x 1200 @ 60 Hz)
      >> 1 x HDMI (Up to 3840 x 2160 @ 30 Hz)
      1 x Audio line out
      2 x on board SIM card slot
      Expansion Slots
      Expansion Slots 1 x Full/Half-size PCIe Mini slot (reserved for WWAN)
      1 x Full/Half-size PCIe Mini slot (reserved for mSATA or E-window)
      1 x Half-size PCIe Mini slot (reserved for WLAN)
      System
      Cooling method / System Fan Fanless
      Drive Bays *Hard Drive: 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
      *mSATA / eMMC:
      1 x mSATA (PCIe Mini Slot)
      1 x eMMC 5.0 (reserved)
      Physical Characteristics
      Construction Extruded aluminum alloy
      Mounting Wall mount / VESA 100
      Color
      Color Black
      Dimensions
      Dimensions 261 x 170 x 60 (WxHxD) (mm)
      Weight
      Weight 2.4 kg / 3.8 kg (Net/Gross)
      Environment
      Operating Temperature Operating: -30°C ~ +70°C with air flow
      Storage: -40°C ~ 80°C
      Humidity 10% ~ 95%, non-condensing

    • Ordering Info.

      Item No. Description
      IVS-110-AL-E3/4G-R10 Fanless embedded system with Intel® Atom™ x7-E3950 (12W) Processor with 4GB DDR3L pre-installed memory, on board GPS, HDMI, VGA, one GbE LAN, one 2.5" SATA HDD bay, two SIM slots, RoHs

    • Package Contents

      • 1 x Screw pack

      • 1 x SATA Cable

      • 2 x Wall Mount Kit
