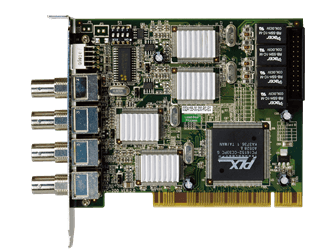

PCI video Capture Card with Four Video Input Channels, Total 120 fps@720x480 (NTSC)

  • Overview

    ● Single card 4-channel composite video (NTSC/PAL) solution
    ● PCI Rev 2.1 compliance interface
    ● Compatible with Windows 98 SE, ME, 2000, XP / Linux kernel 2.4
    ● NTSC: Up to 120 fps per channel
    ● Supports multiple cards up to 16 channels video/audio input
    ● External GPIO daughter board with 4 inputs and 4 outputs (optional)
    ● SDK available for customer to create customized applications
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Dimension119.91 mm x 106.68 mm
      Capture Interface
      Alarm I/OGPIO daughter board with 4 inputs and 4 outputs(IVC-200G-RS-R20 only)
      Card IDDIP switch selectable with LED for ID indication
      Interface Type1 x PCI(Rev 2.1 compliance)
      Video Input4 x Video Input Channel(composite video NTSC, PAL and SECAM auto sensing)
      4 x Video Input-BNC
      Operating Temperature0°C ~ 60°C (32°F~140°F), non-condensing
      Multiple Card Support4cards, 16 channels, QVGA (320 x 240), Total Frame (NTSC/PAL):480/400 fps
      Video Loss Detectionyes
      Power Consumption15W, 3A@5V (with relay)
      Software Support
      SDK1 x Windows
      1 x Linux
      OS Support1 x Microsoft Windows XP
      Operating System(Windows 98 ,SE, ME)
      1 x Linux Ubuntu
      1 x Linux Kernel(2.4)
      1 x Microsoft Windows 2000
      System Requirement
      CPUx86 compatible computer
      Graphic CardDirectX compatible VGA card supporting YUV overlay mode
      Video Processing
      Video Chipset4 x Conexant Fusion BT878A
      Video Compression1 x Software Compression
      Video Input Resolution720 x 480 (NTSC/PAL/SECAM)
      704 x 576 (PAL/SECAM)
      720 x 576 (PAL/SECAM)
      720 x 480 (PAL/SECAM)
      720 x 288 (NTSC/PAL/SECAM)
      720 x 240 (NTSC/PAL/SECAM)
      640 x 480 (NTSC/PAL/SECAM)
      640 x 288 (NTSC/PAL/SECAM)
      640 x 240 (NTSC/PAL/SECAM)
      352 x 288 (NTSC/PAL/SECAM)
      352 x 240 (NTSC)

      *NTSC: Up to 120 fps per channel
      *PAL/SECAM: Up to 100 fps per channel
    • Ordering Info.

      Item No. Description
      IVC-200-RS-R204 channels Video Capture Card;NO GPIO,RoHS
      IVC-200G-RS-R204 channels Video Capture Card;With GPIO,RoHS
    • Package Contents

      • 1 x IVC-200G-RS-R20

      • 1 x GPIO daughter board with cable

      • 1 x QIG
