• Overview

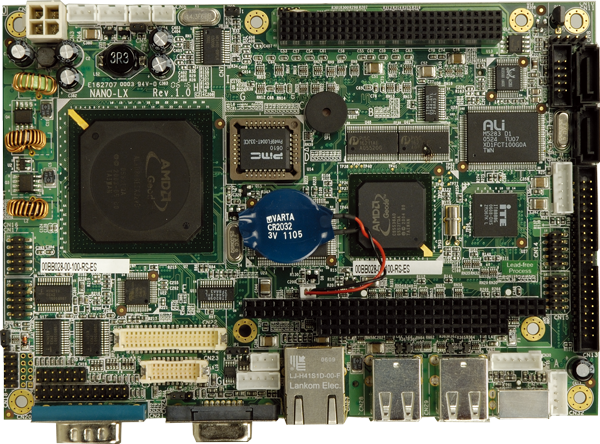

    ● EPIC form factor AMD LX800 processor embedded board with RoHS compliant
    ● DDR 400 MHz SO-DIMM SDRAM up to 1 GB
    ● VGA, 24-bit TTL, and 18-bit single-channel LVDS
    ● SATA RAID 0, 1, JBOD function support
    ● Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      CPUAMD Geode™ LX800 (500 MHz) processor
      ChipsetAMD Geode LX800 + AMD CS5536
      MemoryOne 200-pin 400/333 MHz DDR SDRAM SO-DIMM
      Memory Max.1GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)115 X 165
      Net Weight350g
      Storage
      StorageDescription: 1 X IDE
      2 x SATA VIA VT6421A RAID 0,1 function support
      1 x CF Type II Card
      I/O Interface
      Display Output1 x VGA :up to 1920x1440@60Hz
      1 x TTL :24-bit single-channel (up to 1600x1200@60Hz)
      1 x LVDS :18-bit singel-channel (up to 1280x1024@60Hz)
      Ethernet1 x LAN :10/100Mbps Realtek RTL8100C
      AudioDescription: Realtek ALC203 with AC’97 codec
      I/O Interface1 x External RS-232
      5 x Internal RS-232
      1 x Internal RS-232/422/485
      4 x External USB 2.0
      4 x Internal USB 2.0
      1 x PS/2
      1 x LPT
      Power
      Power Consumption12V@0.92A (AMD LX800
      with 400 MHz 256MB DDR RAM)
      Power Supply12V only DC input
      1 x Internal power connector (2x2 pin)
      support AT/ATX mode
      Environment
      Storage Temperature0°C ~ 60°C
      Operating Shock-10°C ~ 70°C
      Humidity5% ~ 95%, non-condensing
      Certifications
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      NANO-LX-800-R12 EPIC SBC,AMD LX800 500MHz Processor,VGA/LVDS/TTL,LAN,SATA and Audio,RoHS
    • Package Contents

      • 1 x NANO-LX single board computer 2 x RS-232 port cable

      • 1 x Audio cable

      • 2 x SATA cable

      • 1 x IDE flat cable 44p/44p 1 x Mini iumper pack

      • 1 x KB/MS Y cable

      • 1 x Power cable

      • 1 x QIG

      • 1 x SATA power cable
