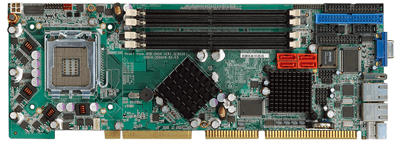

WSB-9454

Full-size PICMG 1.0 CPU Card supports LGA 775 Intel® Core™2 Duo, Pentium® D, Pentium® 4 and Celeron® D Processors

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Supports LGA 775 Intel® Core™2 Duo, Pentium® 4, Pentium® D and Celeron® D processors with 533 MHz, 800 MHz or 1066 MHz FSB
» Dual core processors combined physically
» Enhanced technology for better power consumption
» Intel® EMT64 Technology supports future 64-bit OS appliance
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® 945G+ ICH7
Memory Max. Four 240-pin 1 GB (max.) 667 MHz, 533 MHz or
400 MHz dual-channel DDR2 SDRAM DIMMs
supported (system max. 4 GB)
CPU Socket LGA 775
I/O Interface Ethernet
Digital I/O 8-bit Digital I/O (4-bit input/4-bit output)
Display VGA integrated in Intel® 945G
DVI by Silicon Image SIL1362
(WSB-9454DVI only)
Audio 5.1 channel AC’97 audio kit with Realtek
ALC655 codec
7.1 channel HD audio kit with Realtek ALC888
supports dual audio streams
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, noncondensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
6 x Internal USB 2.0
1 x KB/MS
1 x LPT
1 x USB 2.0
1 x VGA

Ordering Information

WSB-9454-R40 PICMG 1.0 CPU Card supports Intel LGA775 Core 2 Duo,Pentium 4/D,Celeron D with FBS 533/800/1066MHz processor include VGA,Dual PCIE GbE,USB 2.0 and SATA II,RoHS
