- Heavy Industrial Panel PC
- ...
SHIELD-185
» Intel Atom® X7433RE / X7835RE Processor
» 10~28V wide voltage input
» 304 stainless steel housing
» Pre-installed with high-performance 8GB DDR5 memory, up to 16GB
» Optional WiFi 6E and Bluetooth® 5.2
» Optional High-speed transmission fiber optic module
» M12 fully waterproof interface

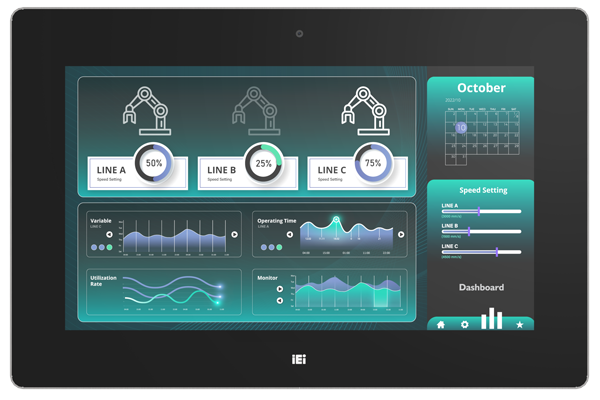

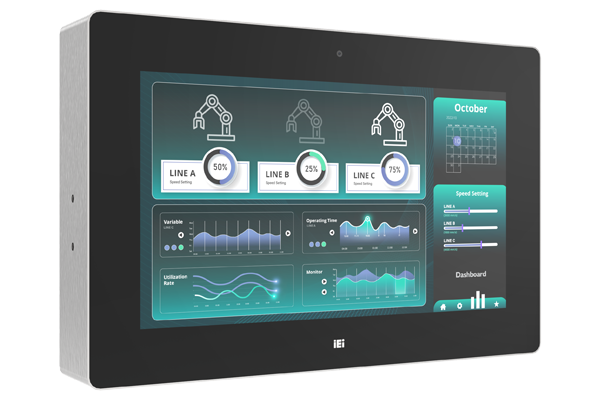

18.5" IP66 Stainless Steel Panel PC, Built for Hygienic Environments
IEI Shield-185 is a rugged 18.5" stainless steel panel PC designed for high-standard applications such as food processing, beverage production, cold chain, medical, and biotechnology industries. It supports wide temperature operation from -30°C to 55°C and delivers 24/7 reliable performance, making it ideal for both hot and freezing environments. The fully enclosed stainless steel housing offers protection against water and dust on all six sides, meeting strict industry demands for hygiene and durability.
IP66 Waterproof
MIL-STD-810G Shock Test
High Bandwidth Long Distance
with Optical Fiber
18.5” 1920 x 1080 TFT-LCD
with 178° Wide Viewing Angles
-30°C ~ 55°C
Extended Temperature
Wide Range DC Input
304 Stainless Steel
Anti-Corrosion
Dual
2.5Gbe LAN
Power-Efficient Performance for AI and Graphics
Powered by Intel Atom® Processors x7000RE Series Processors, the SHIELD-185 delivers improved performance and stability for device applications. With support for up to eight E-cores, Intel UHD Graphics with up to 32 execution units (EUs), and deep learning inference capabilities, it is ideal for industries requiring superior computing power while DDR5 memory ensures fast and efficient data processing. Intel Time-Coordinated Computing (Intel TCC) enables predictable, smooth operation for latency-bound workloads in food processing industry.
304 Stainless Steel Strong Corrosion Resistance
Crafted from premium stainless steel, the SHIELD-185 features a non-toxic, easy-to-clean surface, providing outstanding corrosion resistance. This is designed to maintain structural integrity even in moisture-rich and chemically intense settings.

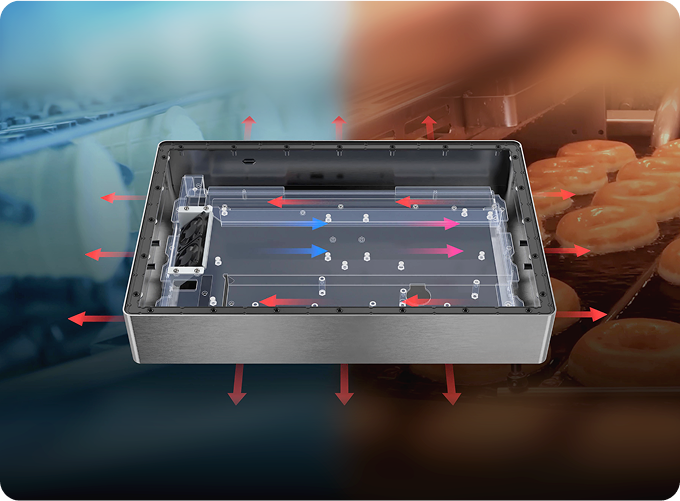

-30°C to 55°C Resilience for Extreme Food Processing Environments
The SHIELD-185 features an internal bumper-like thermal structure that prevents deformation and withstands extreme conditions. Its rugged casing enhances heat retention, reducing thermal dissipation challenges in freezing environments. This ensures longevity and low maintenance, making it a reliable solution for extreme conditions.
Responsive 10-Point PCAP Multi-Touch for Enhanced User Interaction
Features a 10-point multi-touch PCAP panel, allowing seamless operation even in demanding environments. It is designed to work with gloves and water, ensuring high usability in hygienic settings. Additionally, the 7H scratch-resistant surface hardness enhances durability, while anti-glare and anti-UV features provide optimal visibility in bright industrial environments.

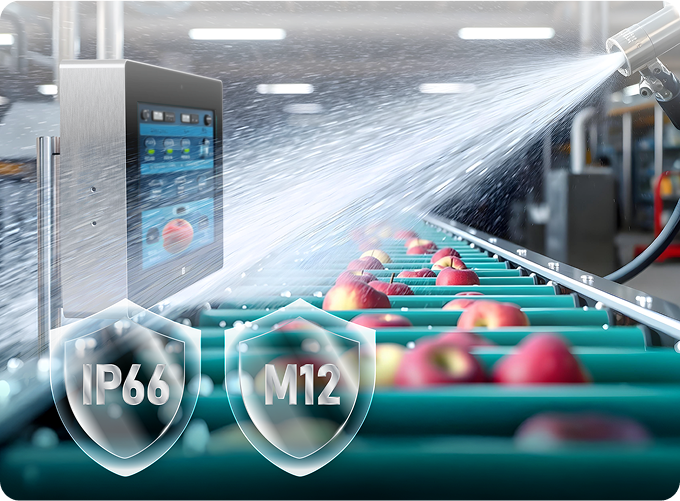

IP66-Rated Enclosure for Protection Against Dust and High-Pressure Water Jets

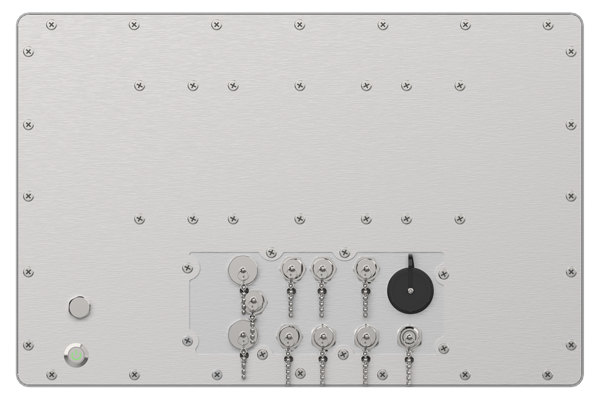

With an IP66 rating, the SHIELD-185 offers comprehensive waterproof protection, preventing damage from water and contaminants. Also, with the waterproof M12 and M20 connectors, it ensure secure and reliable data transmission, even in wet or hazardous conditions.
Isolated IIoT-Centric Connectivity
By integrating isolated I/O protection, the system is safeguarded against electrical surges, electromagnetic interference (EMI), and voltage spikes, which are common in industrial environments with heavy machinery and automation equipment. This ensures stable data transmission and prevents system failures, minimizing disruptions to food production lines.
Optical Fiber Flexible for Fast Industry 4.0 Deployments
Designed for industrial efficiency, the SHIELD-185 features optical fiber connectivity, offering:
- High bandwidth for high-speed data transmission
- Low signal attenuation for long-distance communication (up to 40KM)
- Anti-electromagnetic interference for stable connectivity
- High security for critical industrial data applications
High-Speed, High-Capacity Data Agregation M.2 SSD Expansions
With versatile M.2 SSD slots (PCIe & SATA), the system ensures fast data handling and stable performance, even in humid or greasy food processing environments.
- 1x M.2 2280 M-Key (PCIe Gen3 x2)
- 1x M.2 2242/2280 M-Key (PCIe Gen3 x1 + SATA)
- 1 x M.2 3052/3080 B-Key (PCIe Gen3 x1 + USB 3.0 x1)
Tilt-and-Rotate Yoke Mount for Optimized Viewing
A yoke mount features a frame connected to a panel PC, allowing smooth tilt and rotation adjustments. Ideal for industrial and space-limited workstations, it supports flexible repositioning for optimal viewing comfort.

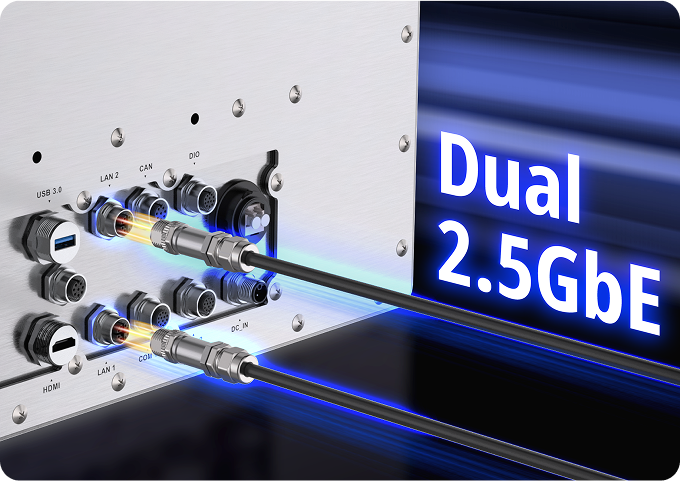

Dual 2.5GbE High Speed Ethernet
Intel® I226-IT Dual LAN (RJ45) provides stable, high-speed connectivity for industrial applications, offering network redundancy, minimizing downtime, and enhancing reliability in mission-critical environments.
Expand Workspaces with Dedicated HDMI Output
The SHIELD features an HDMI interface, allowing users to extend their workspace to a second display with up to 4K resolution
Applications
I/O Interface
Dimensions
Hardware Spec.
| System | |
|---|---|
| CPU |
Intel Atom® x7433RE Processor 6M Cache, up to 3.40 GHz / TDP 9w Intel Atom® x7835RE Processor 6M Cache, up to 3.40 GHz / TDP 12w |
| Memory Ext. | 1 x SO-DIMM DDR5-4800, up to 16GB (Pre-installed 8GB) (ECC supported) |
| Storage |
1 x M-Key 2280 (PCIe Gen3 x2) for M.2 SSD 1 x 128GB Emmc (optional) |
| Communication | |
| Wireless | IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (optional) |
| I/O Interface | |
| Ethernet | 2 x 2.5GbE LAN via Intel I226-IT |
| Expansion |
1 x M.2 M-Key 2242/2280 (PCIe Gen3 x1 + SATA) 1 x M.2 B-Key 3052/3080 (PCIe Gen3 x1 + USB 3.0 x1) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe Gen3 x1 + USB 2.0 x1) for optional WIFI/BT module |
| Power | |
| Power Supply | DC 10 ~ 28V |
| Environment | |
| Operating Temperature | -30°C~55°C@50%RH |
| Safety & EMC | CE, FCC (Class A) |
| Humidity | 10% ~ 90% (non-condensing) |
| Storage Temperature | -40°C ~ 70°C |
| IP Level | Fully IP66 |
| Physical Characteristics | |
| Color | silver |
| Mounting | Yoke / VESA 100mm |
| LCD | |
| Size | 18.5” |
| Resolution | 1920 x 1080 (16:9) |
| Brightness (cd/m2) | 500 cd/m² |
| Contrast Ratio | 1000 : 1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.213 (H) x 0.213 (V) |
| Viewing Angle (H-V) | 178°/178° |
| Backlight MTBF | 50000 hours |
| Touch | |
| Touch Screen | PCAP with USB interface (anti-UV/AR coating) |
| Touch Controller | ILI2520 |
| Other Features | |
| Camera | 1 x Camera (Wide-viewing angle) |
| I/O Interface | |
| I/O Interface | 1 x CAN-bus (with 2.0 kV isolation) |
| 1 x DC Input Jack | |
| 1 x GPIO (with SMbus (1.6 KV isolation)) | |
| 1 x HDMI™ (1.4b) | |
| 2 x LAN (2.5GbE) | |
| 1 x Power Switch | |
| 1 x RS-232 (with 2.0 kV isolation) | |
| 1 x RS-232/422/485 (with 2.0 kV isolation) | |
| 1 x USB 2.0 | |
| 1 x USB 3.2 Gen1x1 | |
Ordering Information
| SHIELD-185-R4C-R10 | 18.5" 500cd/m² 1920x1080 Panel PC with Intel® Atom x7835RE Processor, TDP 12W, Preinstalled with 8GB DDR5, PCAP touch, 10~28V DC, 304 Stainless Steel Chassis, Full body IP66 Rated with water-proof Connectors , R10 |
|---|---|
| SHIELD-185-R3C-R10 | 18.5" 500cd/m² 1920x1080 Panel PC with Intel® Atom x7433RE Processor, TDP 9W, Preinstalled with 8GB DDR5, PCAP touch, 10~28V DC, 304 Stainless Steel Chassis, Full body IP66 Rated with water-proof Connectors , R10 |
Package Contents
| Package Content |
|
|---|
