Din-rail Embedded System

DRPC Series

Fanless DIN Rail embedded system.
*User friendly installation design.
*OLED indicator function
*Fully integrated I/O
CPU
Chipset
I/O
Expansion

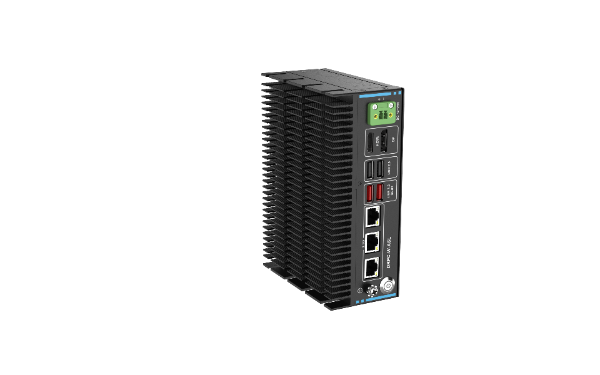

DRPC-130-AL Din-rai Industrial Embedded System

DRPC-130-AL

Fanless DIN-Rail Embedded System
Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
SoC
SoC
●USB:4 x USB 3.0
●Ethernet:2 x RJ-45 (PCIe GbE by Intel® I211 controller)
●COM Port:4 x RS-232/422/485
●Digital I/O:8-bit digital I/O , 4-bit input / 4-bit
●CAN-Bus:1 x DB-9 w/ 2.5kV Isolation protection, supporting 2-port CAN-bus
●Display:2 x HDMI 1.4b
●USB:4 x USB 3.0
●Ethernet:2 x RJ-45 (PCIe GbE by Intel® I211 controller)
●COM Port:4 x RS-232/422/485
●Digital I/O:8-bit digital I/O , 4-bit input / 4-bit
●CAN-Bus:1 x DB-9 w/ 2.5kV Isolation protection, supporting 2-port CAN-bus
●Display:2 x HDMI 1.4b
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
IEI DRPC-230-ULT5 Fanless Din-rail Embedded System

DRPC-230-ULT5

Fanless DIN-Rail Embedded System with Intel® Core™ CPU
Intel® Whiskey Lake Core™ i5-8365UE
Intel® Whiskey Lake Celeron™ 4305UE
Intel® Whiskey Lake Core™ i5-8365UE
Intel® Whiskey Lake Celeron™ 4305UE
SoC
SoC
●6 x USB 3.2 Gen2 (DRPC-230-ULT5-C/8G/S-R10 has 4 x USB 3.2 Gen2 & 2 x USB 2.0)
●Ethernet:
3 x RJ-45
2 x PCIe GbE by Intel® I211 controller
1 x PCIe GbE by Intel® I219 controller
●COM Port:
4 x RS-232/422/485 with AFC (DB-9)
2 x RS-232 (RJ45)
●Digital I/O:
8-bit digital I/O , 4-bit input / 4-bit
●Display:
1 x HDMI 1.4b (lockable)
1 x DP
●TPM:
1 x TPM 2.0 (optional)
●6 x USB 3.2 Gen2 (DRPC-230-ULT5-C/8G/S-R10 has 4 x USB 3.2 Gen2 & 2 x USB 2.0)
●Ethernet:
3 x RJ-45
2 x PCIe GbE by Intel® I211 controller
1 x PCIe GbE by Intel® I219 controller
●COM Port:
4 x RS-232/422/485 with AFC (DB-9)
2 x RS-232 (RJ45)
●Digital I/O:
8-bit digital I/O , 4-bit input / 4-bit
●Display:
1 x HDMI 1.4b (lockable)
1 x DP
●TPM:
1 x TPM 2.0 (optional)
●M.2:
1 x 2230 A key (PCIe/ USB2.0)
Celeron SKU: 1 x 2230 A key (PCIe)
●PCIe Mini:
1 x Full-size (PCIe/ USB 3.0/ SATA)
●Backplane:
1 x PCIe by 4
(No backplane signal for Celeron SKU)
●M.2:
1 x 2230 A key (PCIe/ USB2.0)
Celeron SKU: 1 x 2230 A key (PCIe)
●PCIe Mini:
1 x Full-size (PCIe/ USB 3.0/ SATA)
●Backplane:
1 x PCIe by 4
(No backplane signal for Celeron SKU)
