Fanless DIN-Rail Embedded System

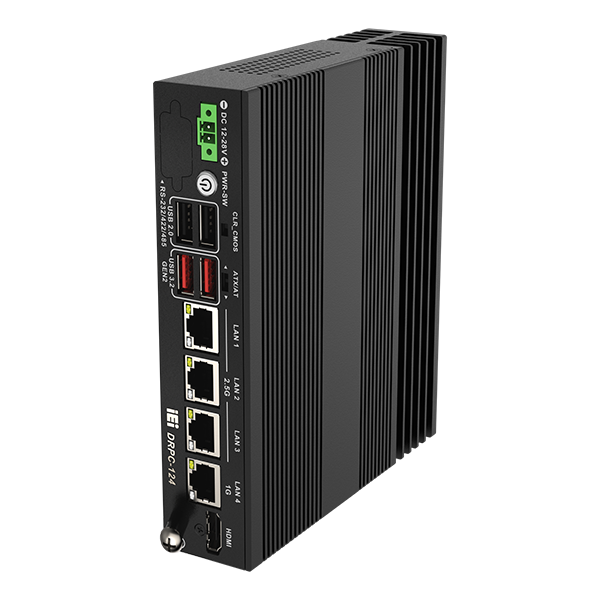

DRPC-124 Front right side
DRPC-124 Front right side
DRPC-124 Front
  • DRPC-124 Front right side
  • DRPC-124 Front right side
  • DRPC-124 Front
  • DRPC-124 DIN
» Compact Industrial Mini PC
» Fanless system
» Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» Four GbE LAN
» CE/FCC compliant

Ultra-slim four-port Ethernet DIN-Rail PC, ensuring efficient workflow in industrial and commercial environments

The DRPC-124 is a super-slim DIN rail mountable device that is only 3.5 cm wide, which is 40% smaller than its predecessor, allowing you to optimize your installation space and efficiency. Powered by Intel® Celeron® Processor J6412 and equipped with extensive network interfaces, 12-24V DC power input, and a rigid -10°C to 50°C operating temperature, it masterfully caters to a wide range of industrial/commercial applications including virtual router, motion control, and machine vision deployments.

Optimized for Improved Efficiency and Performance with Intel® Celeron® Processor

Powered by an Intel® Celeron® J6412 quad-core CPU, backed by Intel® UHD Graphics, the DRPC-124-EHL delivers excellent processing and graphical competencies, while maintaining power-efficient operations. Bolstered by 8 GB LPDDR4x on-board memory for multitasking demands, the DRPC-124-EHL ensures dependable and cost-effective performance to meet escalating edge computing needs.


Intel® Celeron® J6412 quad-core processor (up to 2.60 GHz)


LPDDR4x onboard 8GB RAM (customizable up to 16GB)

Ultra Slim, Easy Installation in Limited Space

Weighing only 1.7lbs with dimensions 199 mm (L) x 119 mm (W) x 35 mm (D), this compact design is created by optimizing the cooling structure and I/O simplification, resulting in a 30% reduction in installation area (compared to our conventional model). It has achieved the most space-saving size in the industry, making the DRPC-124 ideal for areas with restricted space such as wall enclosures, internal machinery, and collaborative robots, enhancing workspace usage without trading off performance.

Versatile Mounting Ways

With versatile mounting solutions, the DRPC-124 offers an easy m ethod for integration into your workspace.

Quadruple LAN Ports Adoption for Varied Applications

Featuring a array of four distinct Local Area Network (LAN) por ts, this inventive network strategy illustrates a smart configur ation to markedly augment both safety and productivity.

EtherCAT Motion Controller

Micro Firewall Appliance

Device to Device Connection

Serving as an EtherCAT (Ethernet for Control Automation Technology) controller for automated machines, the DRPC-124-EHL fuses a sole Intel™ I210IT Gigabit Ethernet controller tailored for EtherCAT technology, enabling instantaneous communication and delivering exact control.

The DRPC-124-EHL provides ideal hardware foundations for profes sional firewall appliance utilization in an enterprise field and even in harsh environments, such as factory automation, telecommunication, building automation, and transportation. Four physically independent Ethernet ports allow you to segment your entire network into four regions.

It provides rich 1GbE and 2.5GbE network interfaces to satisfy a wide range of deployment needs. No need to purchase an additional switch to expand Ethernet ports. High-resolution, rapid-response image capture via IP cameras, instantaneous sensors, and other data-heavy devices benefit from the improved efficiency and reliability delivered by a direct network connection.

Supports Up to Two PCIe Gen3 SSDs

The DRPC-124-EHL accommodates three storage entities within its compact system, assigning one drive for the operation system, a distinct drive for application software and the rest for backup objectives. Furthermore,it allows you to install dual PCIe Gen3 x2 SSDs, which can achieve twice the data transfer speeds of the previous PCIe Gen2 link.

Fanless Chassis with Effective Trim Heatsink Design

To streamline the system footprint, IEI formulated a compact passive cooling structure to attain the objective, not only minimizing the frame size but also channeling heat from the hot spot to cast out fins towards the DIN rail for extended thermal dispersion.

2-Step Easy Upgrade SSD

Users need only unscrew and lift the chassis cover to access the memory module, storage drives, and wireless card for easy upgrades.

4K HDMI ® 1.4b Output

Can Handle Anything Under 1080p Doesn't handle 4K beyond 30 Hz

Bandwidth: 10.2 Gbps

Color Depth: 8 Bit

  • Audio Channel: 8
  • 1080p (FHD) 60 Hz
  • 2160 (UHD) 30 Hz
  • 1080p 3D 120 Hz

Industrial Grade Design

The DRPC-124-EHL Series sustains its efficiency and dependability even in rigorous industrial conditions.

  • Wide temperature range in operation: -10°C to 50°C
  • Wide voltage input: 12V DC ~ 28V DC input
  • DC in margin protection ±5%

Multiple Port Design


Optional Accessories


Power Adapter & Power Cord

Mounting Kit

Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • Chipset:
  • System Memory:
    LPDDR4x on board 8GB (MAX 16GB)
  • Power:
    2-pin Terminal block: 12-28V DC
  • Consumption:
    12V@3.05 (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
  • USB:
    2 x USB 3.2 Gen2
    2 x USB 2.0
  • Ethernet:
    1 x GbE by Intel® I210-AT controller
    3 x 2.5 GbE by Intel® I225-V/I226-V controller
  • Display:
    1 x HDMI™ 1.4B
  • COM Port:
    1x RS-232/422/485 (DB9)(Optional)
  • TPM:
    Support Intel PTT
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2242 B-key (PCIe Gen3 x2)
    1 x 2242 B-key (SATA)
    1 x 2280 M-key (PCIe Gen3 x2)
Cooling method / System Fan Fanless
Drive Bays eMMC 5.1 (Optional) (MOQ, please contact with sales account manager)
Buttons 1 x Power button
1 x Clear CMOS
Indicators 1 x Power LED
Physical Characteristics
Construction Extruded aluminum alloy
Color Black
Dimensions 159 x 132.5 x 35 (mm)
Weight 0.78KG /1.2kg
Operating Temperature -10°C ~ 50°C with 0.7M/S air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration 10-500 Hz,1.04 Grms, random, 1 hr/axis
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis
Safety & EMC CE, FCC, UKCA
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

DRPC-124-EHL-JC-R10 Fanless System with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x GbE Lan, 3 x 2.5GbE Lan, 1 x HDMI, 12-28V DC, RoHS

Package Contents

Package Content
  • 1 x DIN-rail mounting kit

  • 1 x Screw pack

  • 1 x SATA cable with power cable
