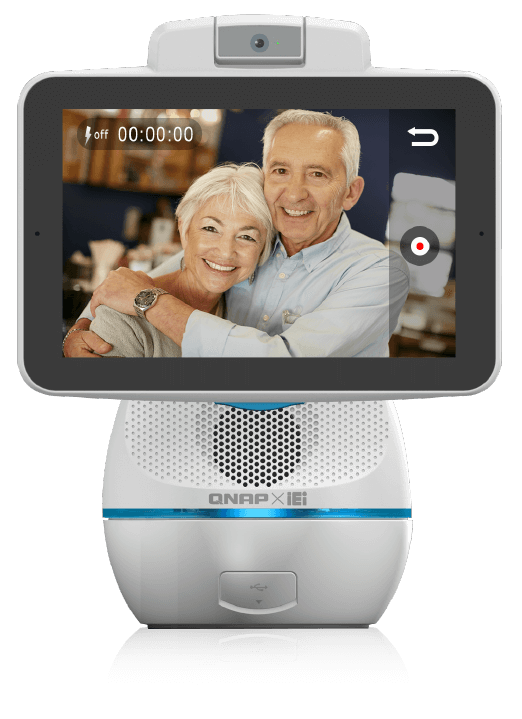

IEI introduces the AfoBot, an assistant robot with 8” screen, to offer an open, flexible and affordable way to develop innovative devices with state-of-the-art components and to design applications based on Android 6.0 platform that can quickly be transformed into final solution.

Create More Possibilities with AfoBot by Your Apps

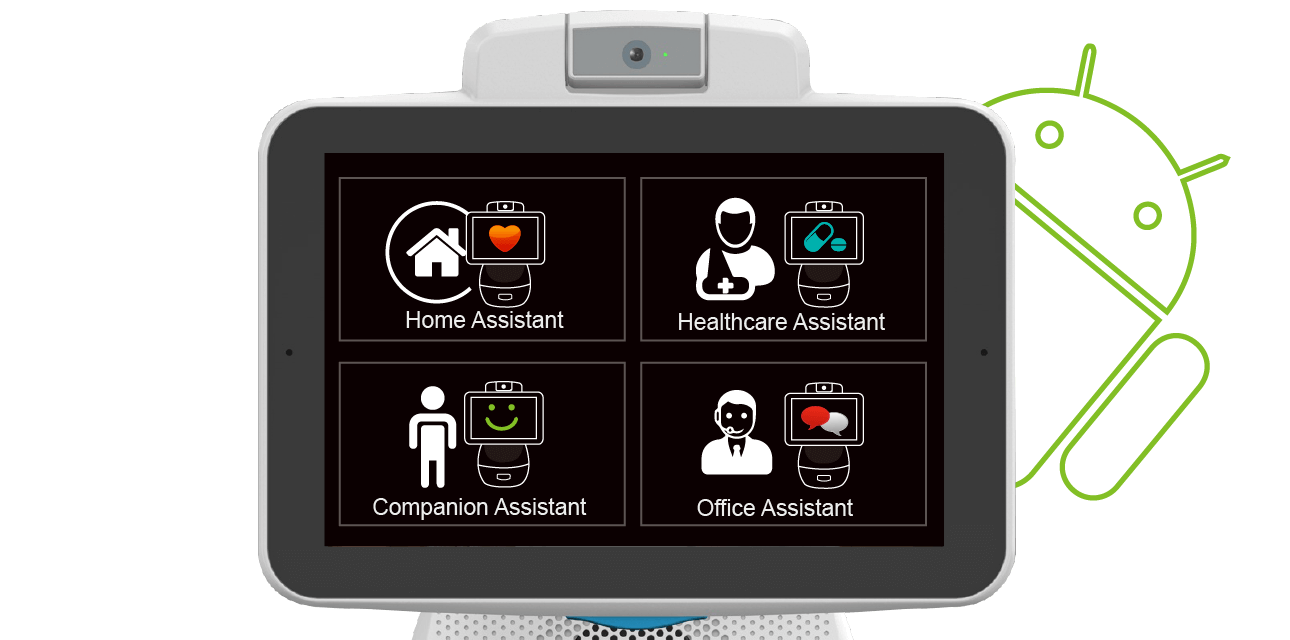

AfoBot with Android Open Development Platform

AfoBot has its SDK for the Android 6.0 platform to enable developers, content creators, and service providers to build apps and value-added experiences for home, office, retail and healthcare industries.

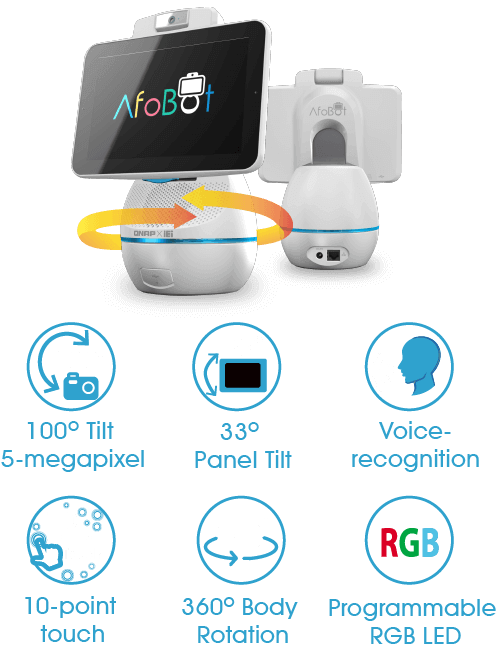

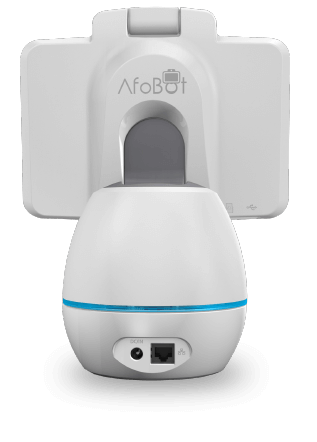

Clean and Clear Design for Multifunctional Application

Wireless Mobility

Sleek and compact design makes AfoBot a convenient device to any environments. With its built-in wireless functions, you can place AfoBot in the living room and use it as a multi-function remote controller to control your home devices, or use it as a conference control terminal that can improve your meeting efficiency.

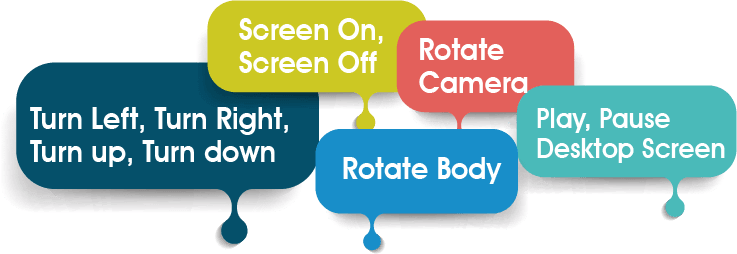

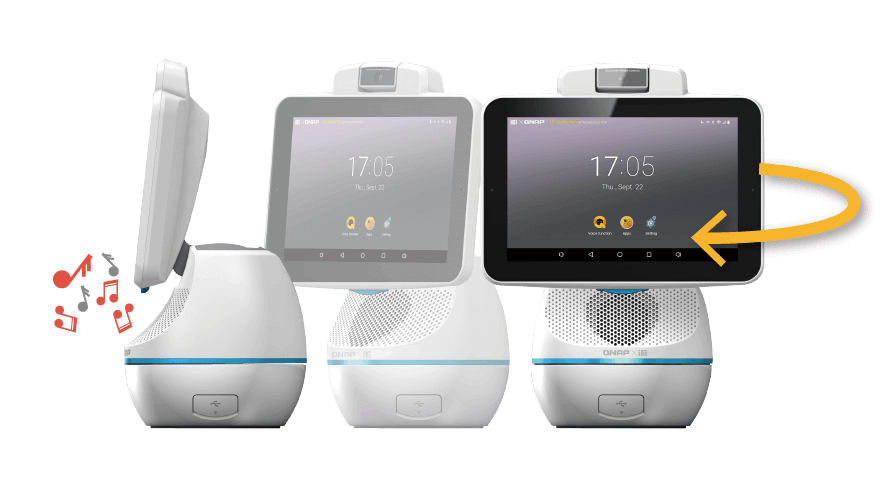

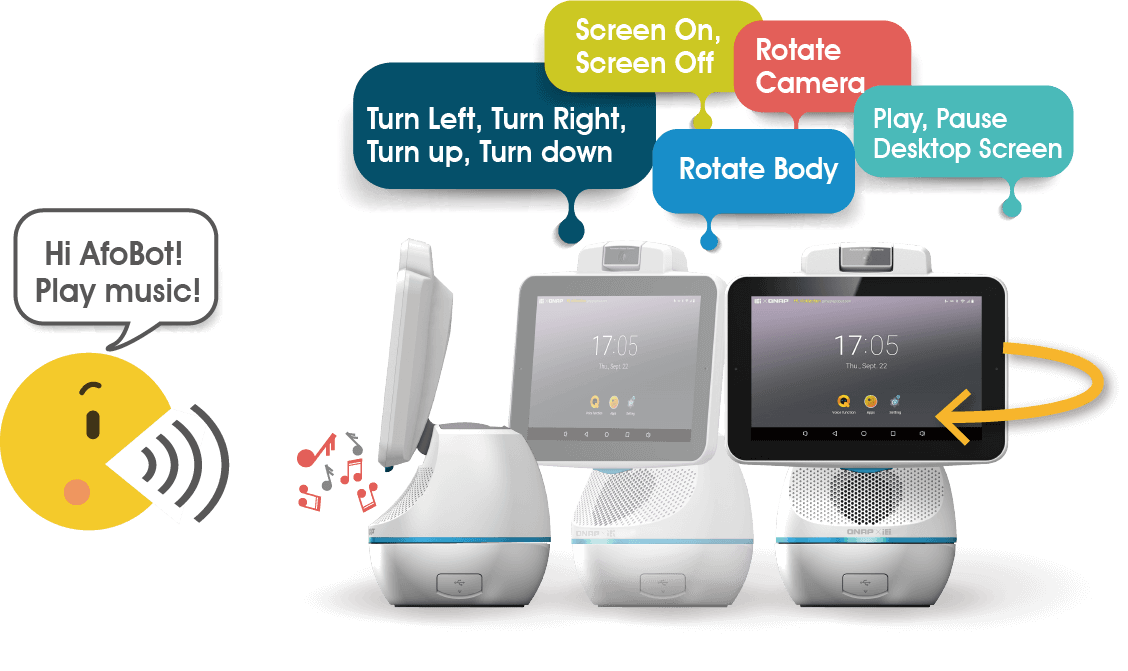

Voice-Activated Robot

You can talk to AfoBot just like talking with your friends and family. AfoBot provides hands-free voice control, and enables you to launch programs, commands and actions via voice commands - you can ask or command. AfoBot will look for information and get results or responses instantly.

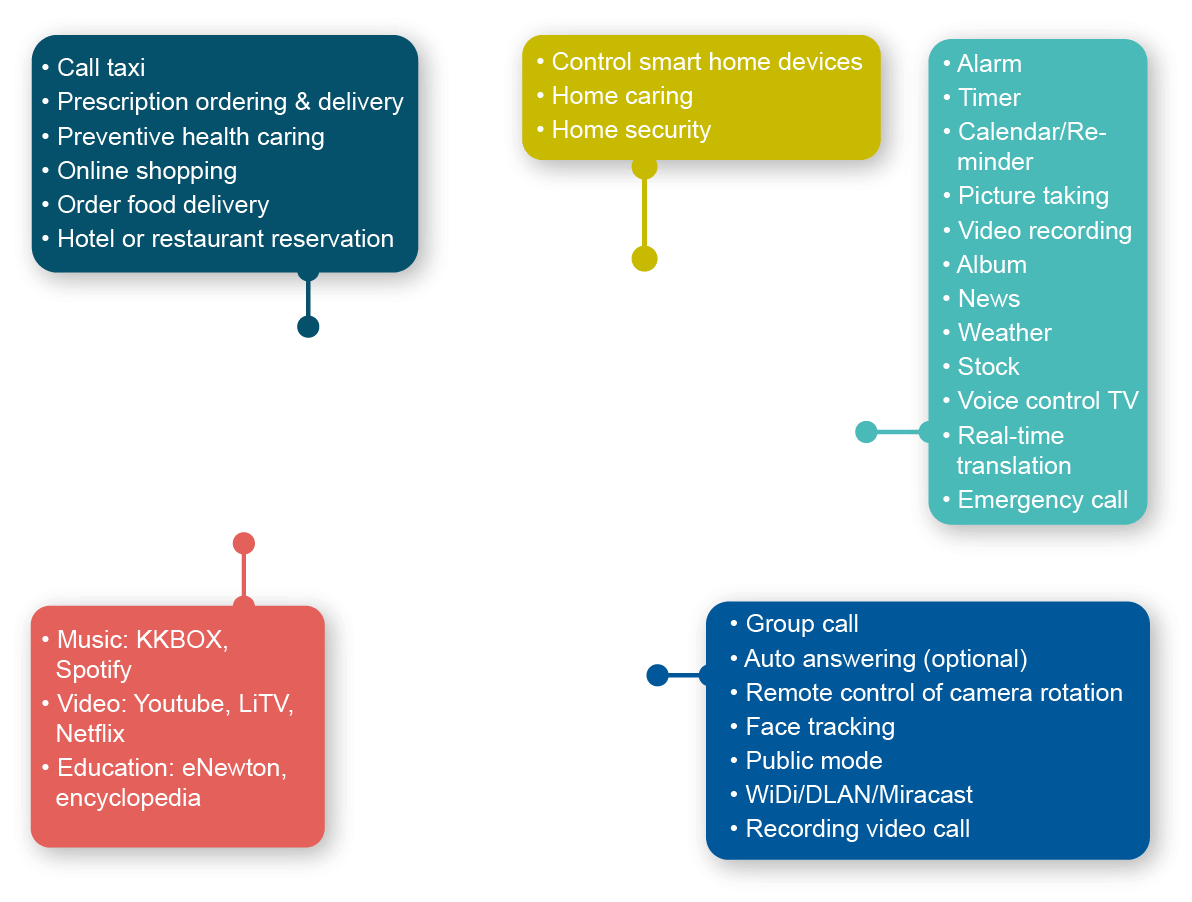

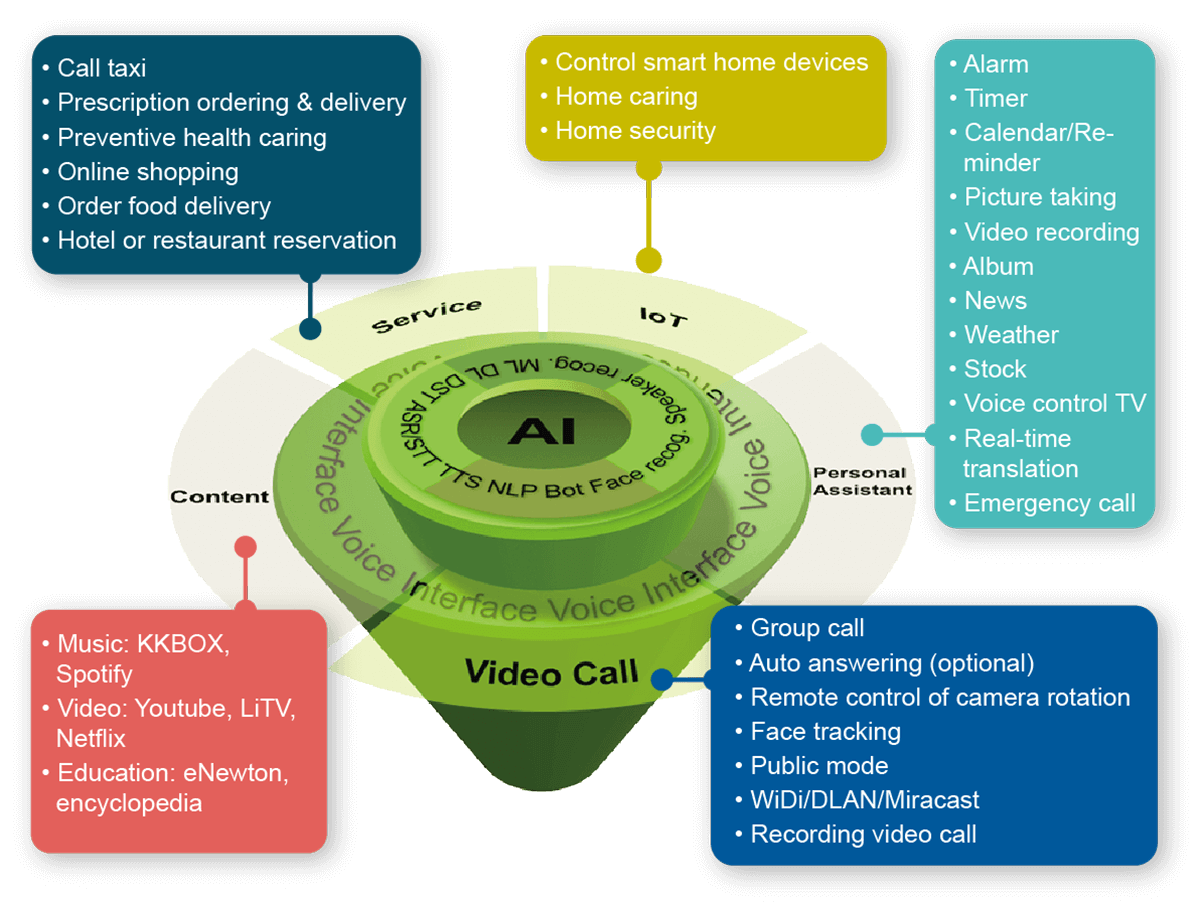

The Value of Software & Hardware Integration with AfoBot

Customize Your AfoBot

In addition to the basic hardware and Android 6.0 platform, IEI offers ODM service. Based on your demand, we could change the housing colors, logo, or pre-install your app (APK). Meanwhile, we also offer a motion control SDK and demonstration kit to let our customers utilize AfoBot in more field application such as distance learning and transnational Tell Us Your Demands!

Standard Specifications

The following table lists the spec of AfoBot, which is differentiated into two versions, with or without lithium battery. If you need more information about ODM project, please kindly contact us with the inquiry form.

Specifications

Model AfoBot

Display

8” TFT LCD with 1280 x 800 Full HD

Processor

8-core Cortex-A53 SoC

Touch Screen

Projected capacitive touch screen with 10-point multi-touch

Memory

On-board 2 GB LPDDR3

Video Codec

4K*2K H.264/H.265, 4K*2K@60Hz

Storage

On-board 32GB eMMC

1 x microSD card slot

Wireless Connectivity

Wi-Fi 802.11 a/b/g/n dual band

Wi-Fi Direct for Miracast

Bluetooth 4.0, BLE support

Wi-Fi access point

Power Adapter

AC Input: 100-240V AC, 50/60Hz

DC Output: 12V 2.5A

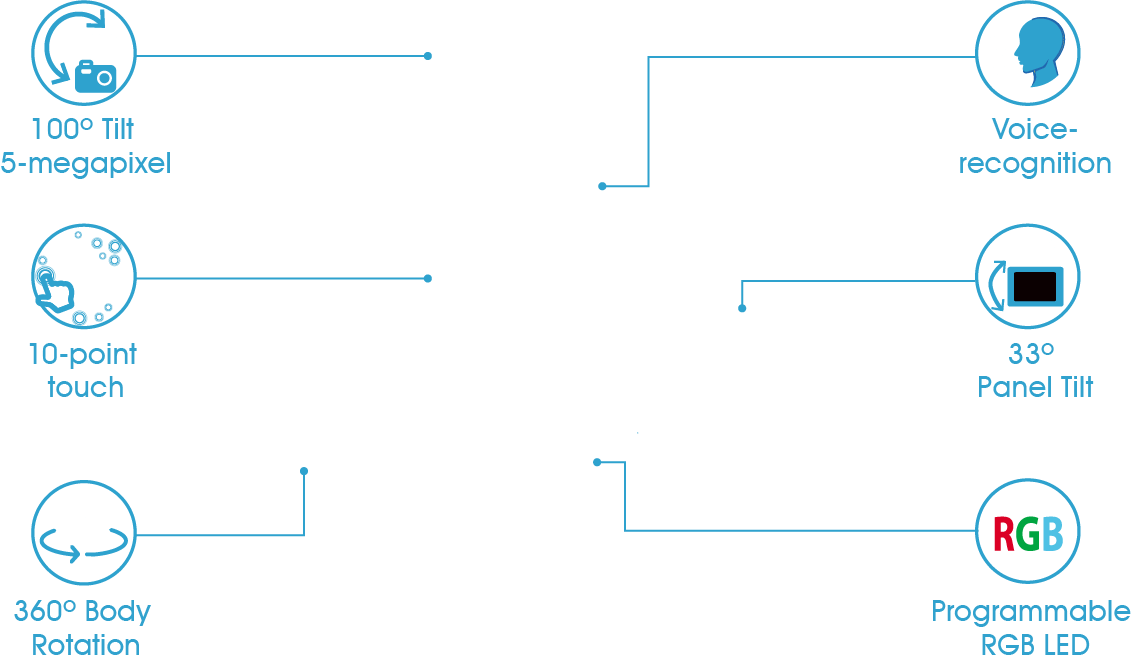

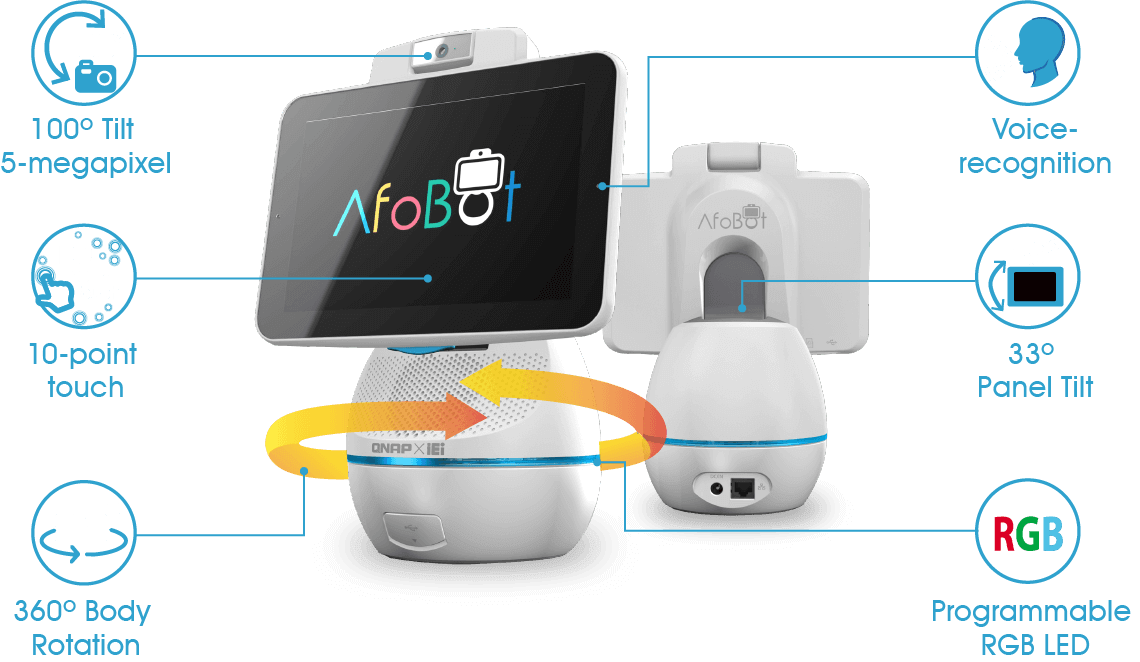

Motion

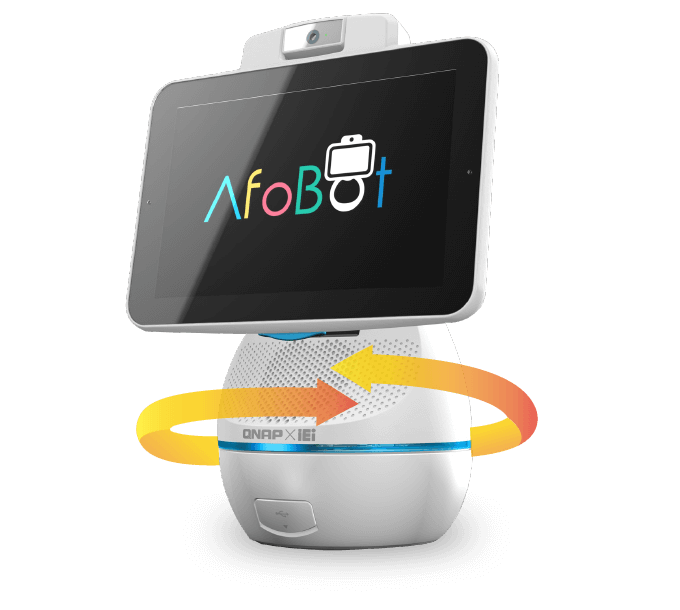

Body: 360° horizontal pan (motorized)

Camera: 100° tilt (motorized)

Panel: 33° tilt (manual)

I/O Interface

1 x USB2.0 Type C

1 x USB2.0 Type A

1 x GbE LAN

Camera

5-megapixel camera, F2.2, FOV103º

Audio

2 x Digital microphone

5W 4Ω stereo reflective speaker

Echo cancelling, noise reduction and auto gain control

Operating System

Host: Android 6.0

Client APP: Android / iOS

Color

Pantone White and pantone 312C

Size

271 mm x 213 mm x 136 mm

Weight

1730g

Certificate

CE, FCC Class B and BSMI

Battery

Lithium Ion; 5200mAH; 3.7V; battery run time: 5 hrs

Ordering Information

Part No. Description

AfoBot-F08A-AD6-TW-R21

8” Assistant Robot with 8-core Cortex-A53 SoC, Wi-Fi 802.11 a/b/g/n ,BT 4.0, 5MP webcam, PCAP touch, onboard 32GB eMMC,Android 6.0, Conexant CX20921, Wifi code: TW, R21

AfoBot-F08A-AD6-BATTW-R21

8” Assistant Robot with 8-core Cortex-A53 SoC, Wi-Fi 802.11 a/b/g/n ,BT 4.0, 5MP webcam, PCAP touch, onboard 32GB eMMC,Android 6.0, 5200AH 1S2P Li-ion battery, Conexant CX20921, Wifi code: TW, R21

AfoBot-F08A-AD6-EU-R21

8” Assistant Robot with 8-core Cortex-A53 SoC, Wi-Fi 802.11 a/b/g/n ,BT 4.0, 5MP webcam, PCAP touch, onboard 32GB eMMC,Android 6.0, Conexant CX20921, Wifi code: EU, R21

AfoBot-F08A-AD6-BATEU-R21

8” Assistant Robot with 8-core Cortex-A53 SoC, Wi-Fi 802.11 a/b/g/n ,BT 4.0, 5MP webcam, PCAP touch, onboard 32GB eMMC,Android 6.0, 5200AH 1S2P Li-ion battery, Conexant CX20921, Wifi code: EU, R21
