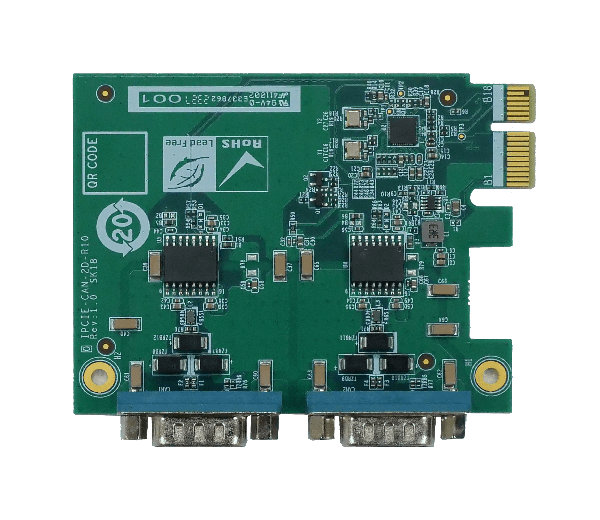

» PCIe card supports 2 x Independent CAN ports
» Up to 1 Mbps transmission speed
» Support 16 MHz CAN controller frequency
» Two CANBus (DB9) port module with isolating
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor |
PCI Express® x1 Protocol: CAN 2.0 A/B |
| System | |
| Chipset |
Fintek F81601 (PCIe to CAN), Chipanalog CA-IS3062 (CAN Transceiver) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 70mm x 90mm |
| Net Weight | GW: 120g / NW: 80g |
| I/O Interface | |
| I/O Interface | 2 x CAN-bus/OBD-II : 2.0B port with isolation |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
| Card Slot Interface | |
| PCIe | PCIe x1 |
Ordering Information
| IPCIE-CAN-2D-R10 | PCIe x1 card supports 2-Port CAN Bus with Isolation Protection, RoHs |
|---|
Package Contents
| Package Content |
|
|---|
