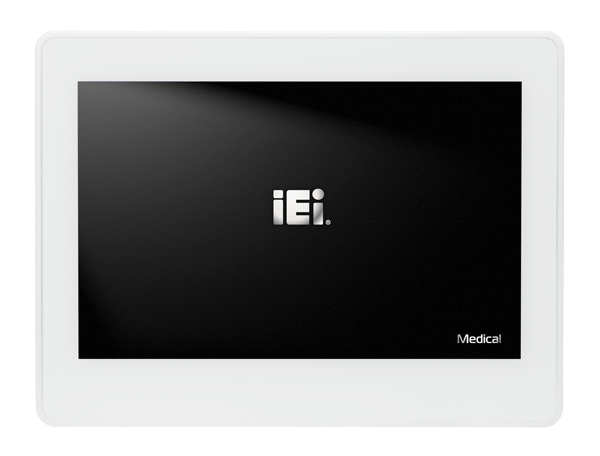

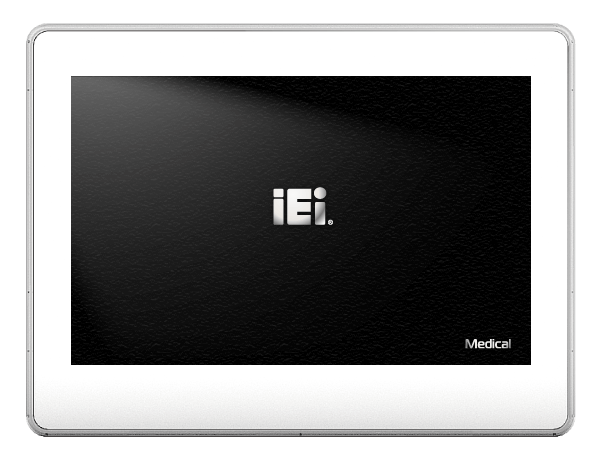

IASO-W10B-N6210
IEI Product Introduction
Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP)
CPU TDP 6.5W
Either lower power consumption at the same performance, or higher performance at equal TDP
Integrated gigabit Ethernet (2.5GbE)
Hard real-time—even via standard Ethernet
Up to a 1.7x improvement in single-thread performance
Processor performance boost
Up to a 1.5x improvement in multi-thread performance generation over generation
Processor performance boost
Up to 2x performance improvement in graphics over previous generation
Doubling graphics speed for immersive experiences

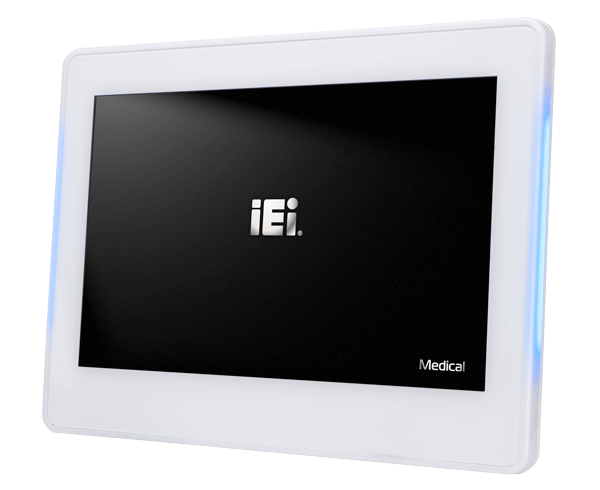

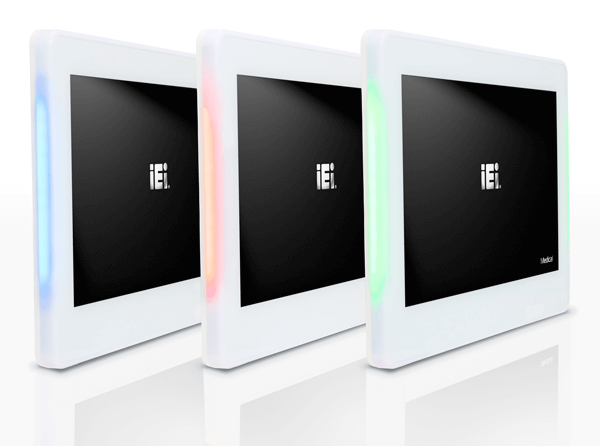

Programmable LED Light
Bars on Both Sides
1LED light bars on both sides
Bright and simple outlook with programmable LED lights on both sides. The colorful light and display can be adjusted according to use conditions.
2 Usage scenarios
It can be used to detect the status light signal, or to warn the ward aisle.
3 Programmable LEDs
Each light bar has 10 programmable RGB LEDs with IEC62471 certification.
4 Translucent front frame
The front frame is made of translucent material to make the frame light and thin.
Color Codes for Safety Signs
IEC60601-1-8:General requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems.
ANSI Z535.1-2017:A standard that describes the color codes that can be used on accident prevention signs, labels, and tags. This also includes the marking and location of first aid equipment, fire extinguishers, trip/slip hazards, and other potential hazards or safety equipment.
IEC60601-1-8 | ANSI Z535.1-2017 | ||
---|---|---|---|
Red |
Flashing | High priority alarm condition:Immediate action to prevent injury. | Fire protection equipment and apparatus,danger signs, containers of flammable liquids,lights at barricades, stop button/switches. (PMS 186) |
Not flashing | Warning:Avoidance of a HAZARDOUS SITUATION which could cause death or serious injury | ||
Yellow |
Flashing | Medium priority alarm condition:Prompt action to prevent injury. | Specific physical hazards(including falling, tripping and striking) and designating caution(including cabinets, cans and containers for explosives,corrosives or unstable materials).(PMS 109) |
Not flashing | Caution:Avoidance of a HAZARDOUS SITUATION which could cause minor or moderate injury or equipment damage. | ||
Green |
Ready for use | Safety information and first aid or safety equipment.(PMS 335) | |
Orange |
The significance of these colors may be defined by the end-user. | Signs and equipment designating dangerous or energized machines/equipment.(PMS 151) | |
Blue |
The significance of these colors may be defined by the end-user. | Information not immediately safety-related(i.e. property policies including safety gear requirements).(PMS 285) | |
Purple |
The significance of these colors may be defined by the end-user. | The significance of purple may be defined by the end-user, but purple(or the combination of purple and yellow) has become the de facto standard for radiation hazards.(PMS 259) | |
Gray
|
The significance of these colors may be defined by the end-user. | The significance of these colors may be defined by the end-user. |
RFID Reader (optional)
An RFID dual-band card is capable of reading both 125 kHz and 13.56 MHz credentials.
Hidden RFID Reader
Hidden RFID Reader
Frequency | Range | Cost | Memory | Penetration of Materials |
Data Rate | Reader Cost | Read Multiple Tags |
Applications | |
---|---|---|---|---|---|---|---|---|---|
LF | 125 - 134.2 KHz |
0.2 - 2m | Typ. 3GBP | Typ. 64 bits | V. Good | Slow | 50 - 500 GBP | Poor | Animal Tags. Vehicle Immobilisers. Industrial Applications |
HF | 13.56 MHz | Up to 1m | Typ. 0.50GBP | Typ. 2048 bits | Good | Fast | 50 - 3000 GBP | Good | Item Tracking. Access Control. Smart Labels |
10-Point Touch Screen with Optical Bonding
10-Point touch screen with 6H surface scratch resistance supports control with multiple layers of surgical gloves. Optical bonding can dramatically reduce the internal reflections, help improve the brightness and contrast ratio of the display, enhance system ruggedness, and strengthen shock and vibration resistance.
-
LCD Humid & Dust ProtectionPanel
-
Anti-UV
-
Medical glove touch
-
Reduced Weight
-
Better Visibility
-
Enhanced Durability
-
Optical Bonding
-
Precise Touch Control
Power over Ethernet (optional)
Providing efficient power with less cabling for best performance.
1GbE supporting PoE
(ErP is not supported in PoE mode)
IASO-W10B-N6210 compliant
with IEEE802.3at Class 4 & IEEE 802.3bt Class 5
Class | PSE Output(W) | PD Input(W) | PoE Type | Standard |
---|---|---|---|---|
0 | 15.4 | 12.95 | 1 | IEEE 802.3af |
1 | 4 | 3.84 | 1 | |
2 | 7 | 6.49 | 1 | |
3 | 15.4 | 12.95 | 1 |
4 | 30 | 25.5 | 2 | IEEE 802.3at |
5 | 45 | 40 | 3 | IEEE 802.3bt |
Class | PSE Output(W) | PD Input(W) | PoE Type | Standard |
---|---|---|---|---|
6 | 60 | 51 | 3 | IEEE 802.3bt |
7 | 75 | 62 | 4 | |
8 | 90 | 73 | 4 | IEEE 802.3bt |
Before
After
Class | PSE Output(W) |
PD Input(W) |
PoE Type |
Standard |
---|---|---|---|---|
0 | 15.4 | 12.95 | 1 | IEEE 802.3af |
1 | 4 | 3.84 | 1 | |
2 | 7 | 6.49 | 1 | |
3 | 15.4 | 12.95 | 1 |
4 | 30 | 25.5 | 2 | IEEE 802.3at |
5 | 45 | 40 | 3 | IEEE 802.3bt |
Class | PSE Output(W) |
PD Input(W) |
PoE Type |
Standard |
---|---|---|---|---|
6 | 60 | 51 | 3 | IEEE 802.3bt |
7 | 75 | 62 | 4 | |
8 | 90 | 73 | 4 | IEEE 802.3bt |
Before
After
AI Audio Analytics Workflow
IASO-W10B-N6210 provides fully deep learning-based, top-quality AI audio analytics. Real-time detect emergencies in the hospital lounge/ward, including under-staffed areas, restricted areas and surveillance blind spots. Notify staffs to enable faster response and reduce rescue time.
In-Wall Mounting
Easy maintenance – just removing five screws for disassembly
IASO-W10B-N6210 can be embedded in or on the wall.
* NOTE: To avoid damage, do not install the IASO-W10B-N6210 in a fully sealed space.
In-Wall Mounting
Easy maintenance – just removing five screws for disassembly
IASO-W10B-N6210 can be embedded in or on the wall.
* NOTE: To avoid damage, do not install the IASO-W10B-N6210 in a fully sealed space.

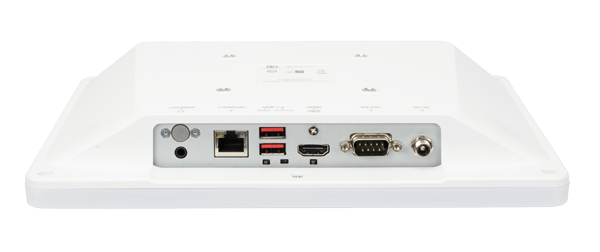

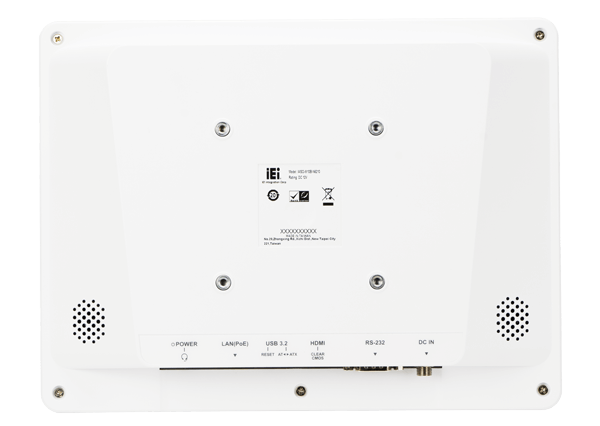

I/O Interface
Power button
1GbE supporting PoE (ErP is not supported in PoE mode)
2 x USB 3.2 Gen 1 (5Gbps)
HDMI™
RS-232
Audio jack (TRRS)
Reset button
AT/ATX switch
Clear cmos
12V DC jack
Dimensions
Hardware Spec.
Form factor | |
---|---|
Form factor |
|
System | |
Cooling method / System Fan | Fanless |
CPU | Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP) |
SSD | 1 x M.2 2242 M key (PCIe/SATA signal) |
Communication | |
Bluetooth | BT v5.0 (M.2 2230 A-E key) |
Wi-Fi | IEEE 802.11ax 2T2R module (Wi-Fi 6E) |
I/O Interface | |
Ethernet | 1 x Intel® I225 Ethernet Controller |
Audio | AMP 1W + 1W (internal speaker) |
RAM | 1 x DDR4 SO-DIMM slot |
Power | |
Input |
12V DC jack Class 5 (IEEE802.3bt) PD device w/ full loading taken on I/O |
Power adapter | 65W medical grade power adapter |
Environment | |
Operating Temperature | -20°C – 40°C |
Operating Vibration | 1G |
Operating Shock |
Operating shock: 5G peak acceleration (11ms duration) Non-operating shock: 15G peak acceleration (11ms duration) |
Safety & EMC |
CE, FCC Class B Part18 EN 60601-1: 2006/A1:2013 (Edition 3.1) EN 60601-1-2: 2015 (Edition 4.0) |
Humidity | 10% – 95% (non-condensing) |
Storage Temperature | -20°C – 60°C |
IP Level | Front: IP65 |
Physical Characteristics | |
Mounting | Wall, Stand and Arm; VESA 75 compliant |
Dimensions (LxWxH) (mm) | 261 x 196.4 x 40 |
Net Weight | 1.49 kg |
Construction | Rear cover: ABS+PC plastic (ENH2900) |
Construction Front Panel | Front: PC |
LCD | |
Size | 10.1" (16:10) |
Resolution | 1280 x 800 |
Brightness (cd/m2) | 400 |
Contrast Ratio | 800:1 |
LCD Color | 16.7M (RGB 6-bit + Hi-FRC) |
Pixel Pitch (mm) | 0.1695 x 0.1695 |
Viewing Angle (H-V) | 178˚/178˚ |
Backlight MTBF | 30,000 (LED backlight) |
Touch | |
Touch Screen | Projected capacitive type with 10-point multi-touch and optical bonding |
Touch Controller | EETI |
Other Features | |
Audio | AMP 1W + 1W (internal speaker) |
LED Light Bar | 2 x LED light bar |
Microphone | 1 x Digital microphone |
I/O Interface | |
I/O Interface | 1 x AT/ATX Switch |
1 x Audio(jack (TRRS)) | |
1 x HDMI™(output) | |
1 x LAN(2.5GbE supporting PoE (with 1.5kV isolation)) | |
1 x Reset Button | |
1 x RS-232 | |
2 x USB 3.2 Gen1x1(5Gb/s) |
Ordering Information
IASO-W10B-N6210/4G-R10 | 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen |
---|---|
IASO-W10B-N6210/4G/PoE-R10 | 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen, IEEE802.3 PoE |
Package Contents
