Overview• AMD EPYC™ Embedded 3000 series processor High-Performance CPU System on Chip• Support 8 x GbE RJ-45 via BCM 5720, 4 x 10 GbE SFP+ and IEI Networking Module• 2 x 288-pin DIMM, 2 x DDR4 2666 MHz, UDIMM Up to 64GB / RDIMM Up to 128GB• 1 x RJ-45 Console, 2 x USB 3.1 Gen 1 (5Gb/s), LCM• 2 x 2.5” SATA 3.0 drive bay, 1 x M.2 B-Key (SATA 3.0, USB 3.2 Gen 1 (5Gb/s)), 1 x PCIe Mini card (PCIe 3.0, USB 2.0)• Support two PCIe x4 slots• Redundant PSUs
AMD is one of the top X86-based platform provider that offers high-performance, high-core-count processors with Secure Encrypted Virtualization and Secure Memory Encryption. The PUZZLE-A001 and the PUZZLE-A002 are 1U rack network terminals powered by AMD EPYC 3000 and R-series processor to deliver outstanding computing performance.
Empowered by AMD Platform
AMD EPYC™ Embedded 3000 Processors
This series leverages AMD’s advanced “Zen” architecture deliver up to a 52% improvement in instructions per clock (IPC) compared to legacy architectures. It designed with an onboard AMD Secure Processor off loading encryption, decryption operations, and executing for Crypto Co-processing that encrypts data before it feeds to the I/O, complemented with Hardware Validated Boot capabilities to ensure systems are booted from trusted software.
AMD Embedded R-Series SoC Processors
For compute-intensive workloads and complex algorithm processing, the AMD Embedded R-Series SOC enables system designers to leverage the benefits of 1.0-compliant Heterogeneous System Architecture (HSA) technology to boost parallel processing performance to new heights.

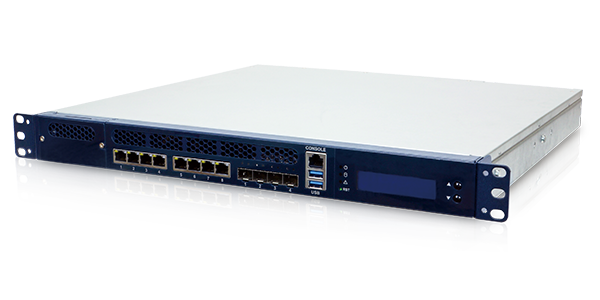

PUZZLE-A001 1U AMD Snowy Owl
Two PCIe x4 Slots
IEI PulM Network Module
Smart Fan Operation
Trusted Platform Module
Support Trusted Platform Module (TPM)
TPM (Trusted Platform Module) offers a broad portfolio of standardized security controllers to protect the integrity and authenticity of systems. With a secured key store and support for a variety of encryption algorithms, TPM security chips provide robust protection for critical data and processes through their rich functionality.
Spec Item Description System CPU AMD EPYC™ Embedded 3201 processor, 8C/8T, up to 3.10 GHz
AMD EPYC™ Embedded 3151 processor, 4C/8T, up to 2.90 GHz
Chipset Integrated in CPU Memory 4 x DDR4 2133/2666 MHz ECC or non-ECC UDIMM/ RDIMM Memory Max. UDIMM Up to 64GB
RDIMM Up to 128GB
Cooling method / System Fan 4 x Cooling Fans with Smart Fan Physical Characteristics Rack Height 1U Dimensions (LxWxH) (mm) 426x430x44.2 Net Weight 7 kg Storage Storage 2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps) 1 x M.2(NGFF) 2260/3042 B key (SATA and USB 3.2 Gen 1 (5Gb/s)) Support SATA SSD and 4G LTE module I/O Interface Ethernet 4 x SFP+ 10 GbE SPF+ ports(Integrated in CPU) 8 x LAN GbE RJ45 LAN ports (Broadcom BCM5720) I/O Interface 1 x External RS-232 Console 2 x External USB 3.2 Gen1x1 5Gb/s 1 x Internal USB 3.2 Gen1x1 5Gb/s 4 x Internal USB 2.0 Expansion 2 x PCIe x4 PCIe 3.0 x4 (FHHL) slot 1 x PCIe mini Card Slot PCIe 3.0, USB 2.0 Power Power Supply 300W, 100V~240V (Redundant power) Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% non-condensing Certifications Safety & EMC CE / FCC OS Support OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/Fedora EPEL
Item No. Description PUZZLE-A001-SO2/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3201 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS PUZZLE-A001-SO3/16G/R-R10 1U Rackmount Network Appliance with AMD EPYC™ Embedded 3151 processor, 16GB DDR4, two 256GB SSD, four 10 GbE SFP+, eight 1GbE, one PulM, two PCIe expansion, Redundant Power, RoHS
．2 x Power cord
．2 x Rack mounting ears
．6 x Screws for rack mounting ears
．USB to console cable (Option)
．RS-232 to console cable (Option)
．Slide rail (Option)
