Smart NIC is getting more and more important. Faster networking and data center impose too much networking overhead on the CPU cores, not a doubt, the compute virtualization, software-defined storage (SDS), and hyperconverged infrastructure (HCI) and other network applications, make this problem worse, as they create more east-west traffic.
Smarter NICs – IEI PulM series can resolve all this virtualization and packet processing faster, more efficiently, and at lower cost than standard CPUs. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.
IEI provides four brands of NIC from Aquantia, Intel, Broadcom, Mella-nox, and with 1G, 2.5G, 5G, 10G or 25G different kinds of speed.
Spec Item Description Physical Characteristics Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H) I/O Interface Ethernet 4 x SFP+ Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% RH, Non-condensing Certifications Safety & EMC RoHS/CE/FCC compliant Card Slot Interface PCIe PCIe 3.0 x8 Card Features Speed 1GbE/10GbE Controller Chip Intel® Ethernet Controller XL710-BM1

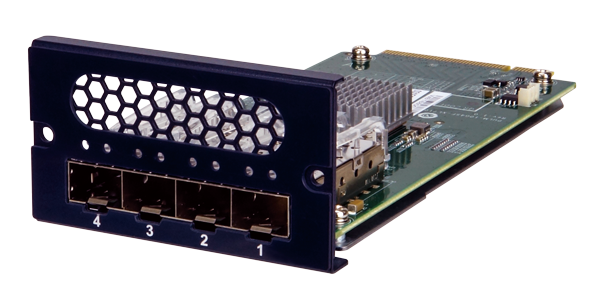

Item No. Description PulM-10G4SF-XL710-R10 Intel® Ethernet Controller XL710-BM1 based Network Interface Card with 4 x SFP+ by 1 PCIe 3.0 x 8 interface.
1 x PulM-10G4SF-XL710 module
1 x L-shaped T10 Plum Wrench
1 x QIG
