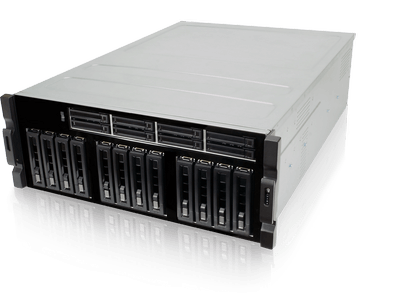

GRAND-C422-20D

AI training system with Intel® Xeon® W family processor and powerful PCIe expansion ability

  • Overview

    ●Intel® Xeon® W family processor supported
    ●6 x PCIe Slot, up to 4 dual width GPU cards
    ●Water cooling system on CPU
    ●Support two U.2 SSD
    ●Support one M.2 SSD M-key slot ( NVMe PCIe 3.0 x4 )
    ●Support 10GbE network
    ●IPMI remote management
  • Features

    AI training server system - GRAND-C422-20D

    GRAND AI Training Server System

    GRAND AI Training Server System inside

    Key features

    Expandable to Suit Your Needs

    • Support up to 4 GPU card expansion slots (dual-width PCIe x8) and 2 single-width expansion slots (PCIe x4) for max. expansion ability to meet computing needs.

    • Six backplane slots connected directly to the system host board to minimize latency.

    Expandable AI training server

    High-Speed Storage Transmission

    The U.2 SSD interface features high-speed, low-latency and low-power NVMe standard protocol, and PCIe 3.0 x4 channel. The theoretical transmission speed is up to 32Gbps, while SATA is only 6Gbps, which is 5 times faster than SATA.

    AI Training Sever with High-Speed Storage Transmission

    High Capacity Storage

    The GRAND-C422-20D supports M.2 NVMe SSD, U.2 SSD and SATA HDD/SSD. It has a built-in M.2 NVMe port and 20 HDD/SSD bays including two U.2 SDD slots. It supports M.2 solid-state disk which is the next-gen. small-sized form factor introduced by Intel® to offer better performance and power-saving.

    AI_training_server_Storage

    Water Cooling System

    IEI designs a higher-efficiency, compact water cooling system for the latest 14nm Intel® Xeon® Processor W family to cool the CPU and keep the high performance. The water cooling system can support up to 250W TDP.

    AI server with Water Cooling System

    Applications

    Hyper Converged Infrastructure

    Hyper converged infrastructure (HCI) is scale-out software-defined infrastructure that converges core data services on flash-accelerated, industry-standard servers, delivering flexible and powerful building blocks under unified management. Efficient, agile, flexible, and integrated, these systems allow for easy scale-out storage, cost-savings, and simplicity to manage your systems. It is the best solution for your data center.

    GRAND-c422-20d Hyper-converged-infrastructure

    AI Training System

    The GRAND-C442 is dedicated for AI training tasks based on its wide range of slot support for storage expansion, accelerator cards, video capture, Thunderbolt ™ or PoE add-on cards for unlimited data acquisition possibilities. In order to develop a useful training model, those existing and widely used deep learning training frameworks are recommended. IEI offers different accelerator cards to facilitate AI inference computing. By combining Mustang-F100-A10, Mustang-V100-MX8 and GPU cards with the GRAND-C422, a complete AI ready solution is easily achieved.

    AI deep learning software
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form Factor
      Form Factor4U, Rackmount
      System
      CPUIntel® Xeon® W Family Processors
      ChipsetIntel® C422
      Memory Max.Memory expandable up to: 256 GB (64 GB x 4)
      Cooling method / System Fan2 x Smart Fan (12cm 12V DC)
      Physical Characteristics
      Rack Height4U
      Dimensions (LxWxH) (mm)176.15 x 480.94 x 644
      Storage
      Storage8 x 2.5” SSD/HDD Bay
      12 x 3.5” HDD Bay
      1 x M.2(NGFF)
      20 x SATA
      2 x U.2
      I/O Interface
      Display Output1 x VGA
      Ethernet2 x LAN(1 x 1GbE RJ45 combo LAN ports / IPMI; 1 x 10GbE RJ45 LAN port)
      I/O Interface1 x External RS-232
      2 x External USB 2.0
      4 x External USB 3.0
      1 x Internal RS-232
      1 x Internal USB2.0
      1 x Internal USB3.0
      Expansion2 x PCIe x 4(PCIe 3.0)
      4 x PCIe x 8(PCIe 3.0)
    • Ordering Info.

      Item No. Description
      GRAND-C422-20D-S1A1-R1020-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2123 with C422 chipset, 32G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS
      GRAND-C422-20D-S1B2-R1020-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2133 with C422 chipset, 64G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS
      GRAND-C422-20D-S1C3-R1020-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2145 with C422 chipset, 128G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS
      GRAND-C422-20D-S1D3-R1020-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2155 with C422 chipset, 128G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS
      GRAND-C422-20D-S1E4-R1020-bay(3.5" x12, 2.5" x 8) 4U Rackmount, Intel® Xeon® W-2195 with C422 chipset, 256G DDR4 w/ECC, 6 x PCIe expansion slot, and 1600W redundant PSU, RoHS
    • Package Contents

      • Ethernet cable x 2

      • Power cord x 2

      • Flat head screw (for 3.5” HDD)

      • Flat head screw (For 2.5” HDD)
