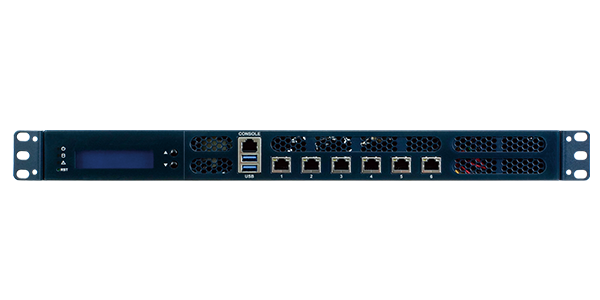

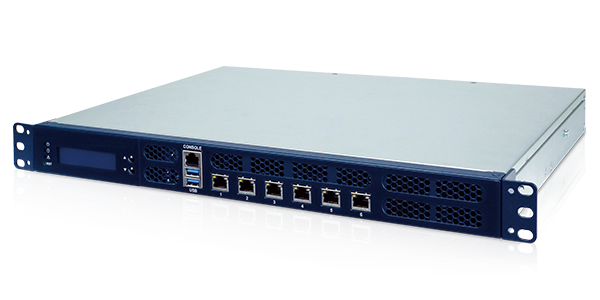

Overview● 8th Generation IntelCore. i7/i5/i3, Pentiumor Celeron Processor● Support 6 x GbE RJ45 via IntelI211● 2 x 288-pin DIMM, DDR4 2400MHz Non-ECC/RDIMM, up to 32GB● 1 x RJ45 Console, 2 x USB 3.0, LCM● 2 x 2.5” SSD/HDD Bay, 1 x M.2 A-Key (SATA, USB 3.0), 1 x PCIe mini card (PCIe, SATA)● Support PCIe x16
IEI PUZZLE series is the next generation product of network appliance which includes a broad portfolio of x86- based and ARM-based network platform built with the latest generation Intel, AMD, Marvell, NXP or Cavium processors, and Aquantia, Intel, Broadcom, Mellanox network interface controllers. These products are built for proprietary network appliance and uCPE (Universal Customer Premise Equipment).
PUZZLE Series Ecosystem
PUZZLE is about the uCPE consists of software virtual network functions (VNFs) running on a standard operating system hosted on an open server. An ideal uCPE deployment supports a multi-vendor multi-component construction and enables rapid development as well as open multi-vendor systems.
Next Generation Firewall (NGFW)
Unified Threat Management (UTM)
Intrusion Detection System (IDS)
Application Delivery Controller
AI Ready Solution
PUZZLE series are AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business.

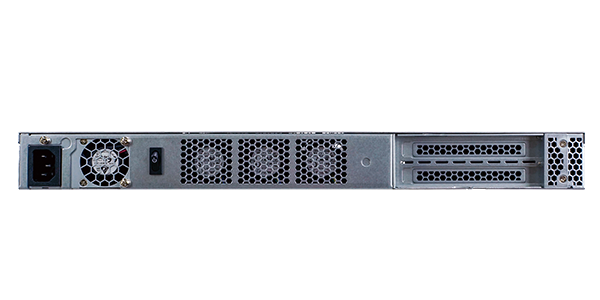

Two PCIe x4/x8 Full Height Expansion Slots
Standard PCIe Slots
PUZZLE-IN002 support One PCIe x16 slots.Support full height, 200mm length Standard PCIe card.
● AI accelerating Card: VPU, FPGA, GPU Card…etc.
● High Speed: 10GbE Card, Fiber Card
● I/O Card: Serial Port Card, USB Card, LAN Card…etc.
● Wireless Card: WiFi Card, mobile wireless card…etc.
● Storage Card: SAS, RAID card
Spec Item Description Form Factor Form Factor 1U System CPU Intel® PentiumGold G5400T Processor,
Intel® Gen8 Core™ i3-8100T processor
Chipset Intel® H310 Memory 2 x DDR4 2400MHz Non-ECC UDIMM Memory Max. up to 32 GB Cooling method / System Fan 4x Cooling Fans with Smart Fan Physical Characteristics Rack Height 1U Dimensions (LxWxH) (mm) 320x430x44.2 Net Weight 5 kg Storage Storage 2 x 2.5” SSD/HDD Bay support SATA 3.0 (6 Gbps) I/O Interface Ethernet 6 x LAN I/O Interface 1 x External RS-232 2 x External USB 3.2 Gen1x1 2 x Internal USB 2.0 Pin header Expansion 1 x PCIe x16 1 x PCIe mini Card Slot 1 x M.2(NGFF) A key (PCIe 3.0& USB 2.0) Other Features TPM 1 x TPM 2.0 Pin header Power Input 100 V ~ 240 V Power Supply 250W Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% non-condensing Certifications Safety & EMC CE / FCC OS Support OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/Fedora EPEL
Microsoft Windows 10
Item No. Description PUZZLE-IN002-R10
* A CPU heatsink must be purchased separately
1U Rackmount Network Appliance support Intel® Gen 8 Core™ i7, i5, i3, Pentium® or Celeron® processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS PUZZLE-IN002-PGT-R10 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS PUZZLE-IN002-PGT/8G-R10 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, 8GB DDR4, one 256GB SSD, and six 1GbE , one PCIe x16 expansion, RoHS PUZZLE-IN002-i3T-R10 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS PUZZLE-IN002-i3T/8G-R10 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 8GB DDR4, one 256GB SSD, six 1GbE , one PCIe x16 expansion, RoHS
．1 x Power cord
．2 x Rack mounting ears
．6 x Screws for rack mounting ears
．USB to console cable (Option)
．RS-232 to console cable (Option)
．CPU Heatsink (TDP:80W) (Option)
．CPU Heatsink (TDP:35W) (Option)
．HDMI cable (Option)
