  • Overview

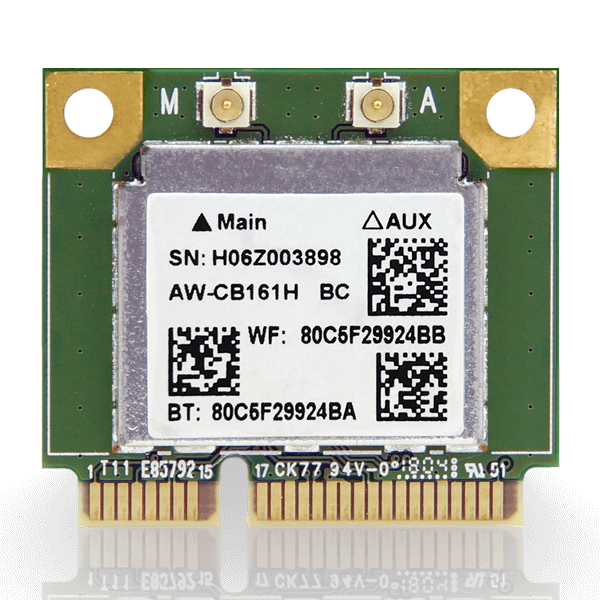

    ● Half size PCIe Mini card form factor
    ● High speed wireless connection up to 433.3Mbps transmit/receive PHY rate using 80MHz bandwidth
    ● Low power consumption and high performance
    ● Fully qualified Bluetooth 4.0
    ● Solid design with external antenna diversity
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      Form factorHalf size PCIe Mini card
      Environment
      Operating Temperature0°C ~ 70°C
      Dimensions
      Dimensions29.85mm x 26.65mm x 1.5 mm
      Weight
      Weight3.28g
      Compatible OS
      Compatible OSWindows 7/8, Linux kernel 3.18
      Standards
      StandardsIEEE 802.11a/b/g/n/ac, Wi-Fi compliant / Bluetooth4.0 Standard
      Controller Chip
      Controller ChipRealtek RTL8821AE
      Connectors
      Connectors2x standard U.FL Connector
      Frequency Range
      Frequency RangeWi-Fi: 2.4 GHz, BT: 2402MHz~2483MHz
      Modulation Type
      Modulation TypeWi-Fi:
      802.11a/g/n/ac: OFDM
      802.11b: CCK(11, 5.5Mbps), DQPSK(2Mbps), BPSK(1Mbps)
      BT:
      Header GFSK
      Payload 2M: 4-DQPSK
      Payload 3M: 8DPSK
      Receiver Sensitivity
      Receiver SensitivityWi-Fi:
      802.11a: less than -65 dBm (54M)
      802.11b: less than -76 dBm (11M)
      802.11g: less than -65 dBm (54M)
      802.11n @2.4GHz: less than -64 dBm (HT20 MCS7)
      802.11n @2.4GHz: less than -61 dBm (HT40 MCS7)
      802.11n @5GHz: less than -64 dBm (HT20 MCS7)
      802.11n @5GHz: less than -61 dBm (HT40 MCS7)
      802.11ac @5GHz: less than -51 dBm (VHT80 MCS9)
      BT: BER < 0.1% (Anritsu 8852B Tx -70 dBm)
    • Ordering Info.

      Item No. Description
      EMB-WIFI-KIT01-R201T1R wifi module kit for embedded system, IEEE802.11a/b/g/n/ac WiFi with Bluetooth 4.0/3.0+HS, 1 x wifi module, 2 x 250mm RF cable, 2 x Antenna, RoHS
      EMB-WIFI-KIT11-R201T1R wifi module kit for embedded system, IEEE802.11a/b/g/n/ac WiFi with Bluetooth 4.0/3.0+HS, 1 x wifi module, 2 x 400mm RF cable, 2 x Antenna, RoHS
