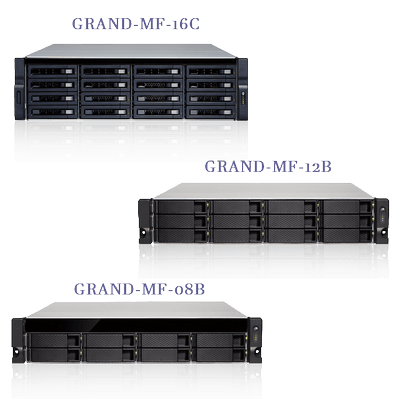

GRAND-MF

AMD R-Series RX-421ND quad-core 2.1 GHz processor, turbo core up to 3.4 GHz

End of Life

End of Life Notice

* Effective Date: 2020/06/16

» AMD R Series RX-421ND quad-core 2.1 GHz CPU (Turbo Core up to 3.4 GHz)
» 4 x DIMM Slots, Install up to 64 GB memory with 4 x 16GB DIMMs
» 1 x PCIe slot can support 10GbE network card
» Storage expandable, up to 1PB

Hardware Spec.

Form Factor
Form Factor 3U 2U, Rackmount
System
CPU AMD R-Series RX-421ND quad-core 2.1 GHz processor, turbo core up to 3.4 GHz
Memory 4 x UDIMM DDR4, up to 2400MHz
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Memory Max. 64GB (4 x 16GB)
Cooling method / System Fan GRAND-MF-16C : 4 x 92 mm, 12V DC
GRAND-MF-12B : 2 x 70 mm, 12V DC
GRAND-MF-08B : 2 x 70 mm, 12V DC
Physical Characteristics
Rack Height 3U 16bay
2U 12bay, 8bay
Dimensions (LxWxH) (mm) GRAND-MF-16C : 130 x 481 x 536 mm
GRAND-MF-12B : 89 x 482 x 534 mm
GRAND-MF-08B : 89 x 482 x 534 mm
Net Weight GRAND-MF-16C : 14.25 kg (31.42 lbs.)
GRAND-MF-12B : 10.71 kg (23.62 lbs.)
GRAND-MF-08B : 9.86 kg (21.74 lbs.)
Storage
Storage Description:(3.5"/2.5" SATA 6Gb/s HDDs/SSDs
GRAND-MF-16C: 16 Bay
GRAND-MF-12B: 12 Bay
GRAND-MF-08B: 8 Bay)
2 x M.2(NGFF)(2280/2260 SATA 6Gb/s SSDs)
I/O Interface
Ethernet 4 x LAN(Gigabit RJ45)
I/O Interface 4 x External USB 2.0
2 x External USB 3.0
Expansion 1 x PCIe x 4(PCIe Gen 3 x4)
Power
Power Supply 16C : 350W, 100-240V, 500W (x2), 100-240V (redundant)
12B : 350W, 100-240V, 300W (x2), 100-240V (redundant)
08B : 250W, 100-240V, 250W (x2), 100-240V (redundant)
Environment
Operating Temperature 0-40˚C
Humidity 5 ~ 95% RH non-condensing, wet bulb: 27˚C

Ordering Information

GRAND-MF-08B-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD RX-421ND, 250W single PSU, RoHS
GRAND-MF-08B-RP-R10 2U 8Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD RX-421ND, 250W redundant PSU, RoHS
GRAND-MF-12B-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD RX-421ND, 350W single PSU, RoHS
GRAND-MF-12B-RP-R10 2U 12Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD RX-421ND, 350W redundant PSU, RoHS
GRAND-MF-16C-R10 3U 16Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD RX-421ND, 350W single PSU, RoHS
GRAND-MF-16C-RP-R10 3U 16Bay front 3.5" HDD or SSD support, rackmount storage server system (Barebone) with AMD RX-421ND, 500Wredundant PSU, RoHS

Package Contents

Package Content
  • Ethernet Cable x 2

  • Power cord x 2

  • Flat head screws (For 2.5” HDD)

  • Flat head screws (for 3.5” HDD)
