  • Overview

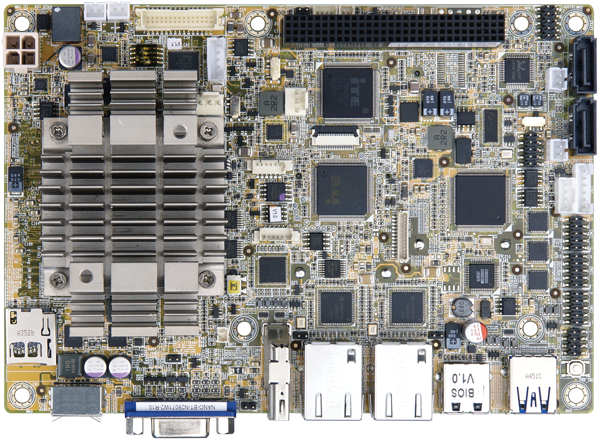

    ● EPIC SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC
    ● Supports dual independent display with LVDS, VGA and HDMI
    ● 1.35V DDR3L 1333/1066 MHz SDRAM support up to 8 GB
    ● Support IPMI 2.0 with iRIS-1010 module
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerN/A
      Display
      DisplayDual independent display
      VGA (up to 2560x1600 @ 60 Hz)
      HDMI (up to 1920x1080 @ 60 Hz)
      18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      Environment
      Humidity10% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C (NANO-BT-i1-XXXXXX-R11)
      -40°C ~ 85°C (NANO-BT-E38XX1W2-R11)
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
      1 x PCI/104 slot (PCI signal)
      1 x microSD slot (E38XX SKU only)
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      1 x Analog audio (2x5 pin)
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I210-AT PCIe controller with NCSI support
      LAN2: Intel® I211-AT PCIe controller
      I/O Interface
      I/O Interface1 x USB 3.0
      1 x USB 2.0
      1 x Internal RS-422/485
      2 x Internal USB 2.0
      3 x Internal RS-232
      Option
      iRIS1 x iRIS-1010 slot
      Power
      Power consumption12V@1.52A (Intel® Atom™ processor J1900 with one 8GB 1333 MHz DDR3 memory)
      Storage
      Storage2 x SATA 3Gb/s with 5V SATA power connector (no RAID)
      System
      CPUIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
      CPU SocketOn Board
      Memory Max.One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
      supports
      up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      NANO-BT-J19001-ECO-R11Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA , COM, Audio, ECO packing and RoHS
      NANO-BT-E38451W2-R11EPIC SBC supports Intel 22nm Quad-Core Atom E3845 1.91GHz (10W) on-board SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 3Gb/s, mSATA , COM, audio and RoHS, Extend operating temperature: -40°C ~ +85°C
    • Package Contents

      • 1 x NANO-BT single board computer with heatsink

      • 1 x Power cable 1 x One Key Recovery CD

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 2 x SATA with power cable kit

      • 1 x Utility CD
