HYPER-ASL

PICO-ITX SBC with Intel® Alder Lake-N/Amston Lake on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, M.2 M key, M.2 A key, USB 3.2, iSATA 6GB/s, COM, RoHS

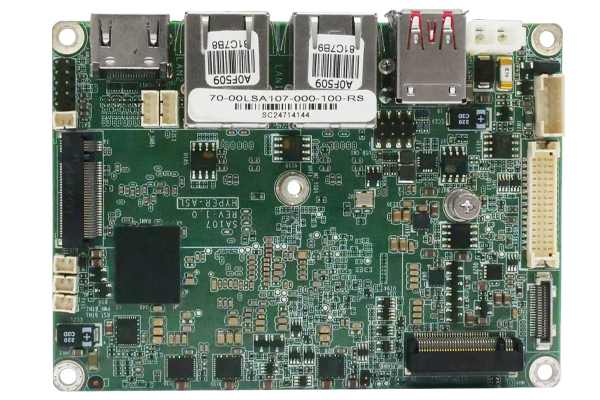

HYPER-ASL
HYPER-ASL-IO
HYPER-ASL-back
HYPER-ASL-left
  • HYPER-ASL
  • HYPER-ASL-IO
  • HYPER-ASL-back
  • HYPER-ASL-left
» PICO-ITX SBC with Intel® Alder Lake-N/Amston Lake on-board SoC
» On-board LPDDR5 8G pre-installed (system max. 16GB)
» Double displays with 1 x HDMI 2.0 and 1 x LVDS
» Support 2 x 2.5GbE with i226-V
» Support M.2 A Key and M.2 M key

Specifications

Hardware Spec.

Form Factor
Form Factor PICO-ITX
System
CPU Support Intel® Alder Lake-N/Amston Lake series processor.
Intel® Alder Lake-N N97 SoC on-board SoC
Intel® Amston Lake x7433RE on-board SoC
Intel® Amston Lake x7835RE on-board SoC
Memory Dual channal on-board LPDDR5 8G pre-installed (system max.16GB)
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 100mm x 72mm
Net Weight 250g
Storage
Storage 1 x M.2(NGFF) : 1 x M.2 M Key 2242 (PCIe Gen3 x2)
1 x SATA : iSATA 6Gb/s
I/O Interface
Display Output 1 x HDMI™ : up to 4K @ 30Hz
1 x LVDS : 24-bit dual-channel, up to 1920 x 1200
Ethernet 2 x LAN -
LAN1: Intel® I226-V 2.5GbE controller
LAN2: Intel® I226-V 2.5GbE controller
Audio 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin)
I/O Interface 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)
1 x Internal RS-232/422/485 : 1*9 pin, P=1.25, 90°
2 x Internal USB 2.0 (2x4 pin, P=2.0)
Expansion 2 x M.2(NGFF) -
1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242 (PCIe Gen3 x2)
Power
Power Consumption 12V@2.724A
(Intel® Alder Lake-N N97 with 8 GB 4800 MHz LPDDR5 memory, max. loading, EuP mode disabled)
Power Supply 12V DC input, Support AT/ATX mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~95%, non-condensing

Ordering Information

HYPER-ASL-R4C-R10 PICO-ITX SBC supports Intel Atom® x7835RE on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA, COM, RoHS
HYPER-ASL-R3C-R10 PICO-ITX SBC supports Intel Atom® x7433RE on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA, COM, RoHS
HYPER-ASL-N2C-R10 PICO-ITX SBC supports Intel® Alder Lake-N N97 on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA,COM, RoHS

Package Contents

Package Content

  • 1 x HYPER-ASL SBC with heat spreader

  • 1 x iSATA cable

  • 1 x QIG

Download Specs.
