FSP060-DHAN3

60 W AC/DC Adapter

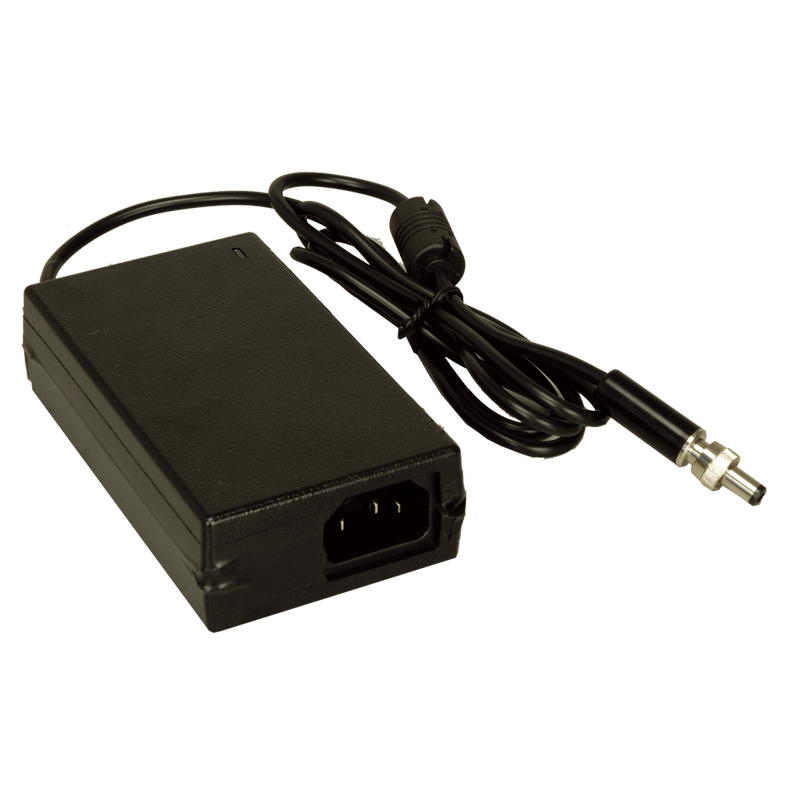

FSP060-DHAN3 power adapter
  • FSP060-DHAN3 power adapter
60 W AC/DC Adapter

Hardware Spec.

Environment
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 80°C
Input
Voltage 90-264 VAC
Frequency 47-63 Hz
Input Current 1.8A
Output
Voltage 12V
General
Watt 60W
Efficiency 85%
Dimensions 62 x 110 x 31.5 (mm)

Ordering Information

63040-010060-211-RS Adapter Power;FSP;FSP060-DHAN3;9NA0608097;;Vin:90~264VAC;60W;Dim:62.0*110*31.5mm;Plug=7.5mm;Cable=1200mm;Erp(NO LOAD 0.21W);Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS
63040-010060-200-RS Adapter Power;FSP;FSP060-DHAN3;9NA0608011;;Vin:90~264VAC;60W;Dim:62.0*110*31.5mm;Plug=9.5mm;Cable=1500mm;Erp(NO LOAD 0.21W);Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS
