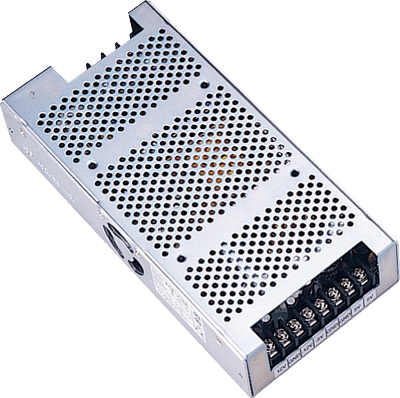

ACE-716AP

150W 1U Type AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2022/11/01

150W 1U Type AT Power Supply

Hardware Spec.

General
Dimensions 198 x 97 x 40.5
Efficiency 75%
MTBF 149000
Operating temperature -20°C ~ 70°C
Storage temperature -20°C ~ 85°C
Watt 150W
Input
Voltage 85 ~ 265 VAC Full Rang
Frequency 47 ~ 440 Hz
Input Current 18 A (RMS) @ -24 VDC
Output
Voltage +5V/18A,+12V/4A,-12V/1A,-5V/0.5A
Over Voltage Protection + 5 V:4.75V~5.25V
+12V:11.4V~12.6V
-12V:-11.4V~-12.6V
-5V:-4.75V~-5.25V

Ordering Information

ACE-716AP-RS Rugged AC input 150W PFC power supply;;;;CCL;RoHS
