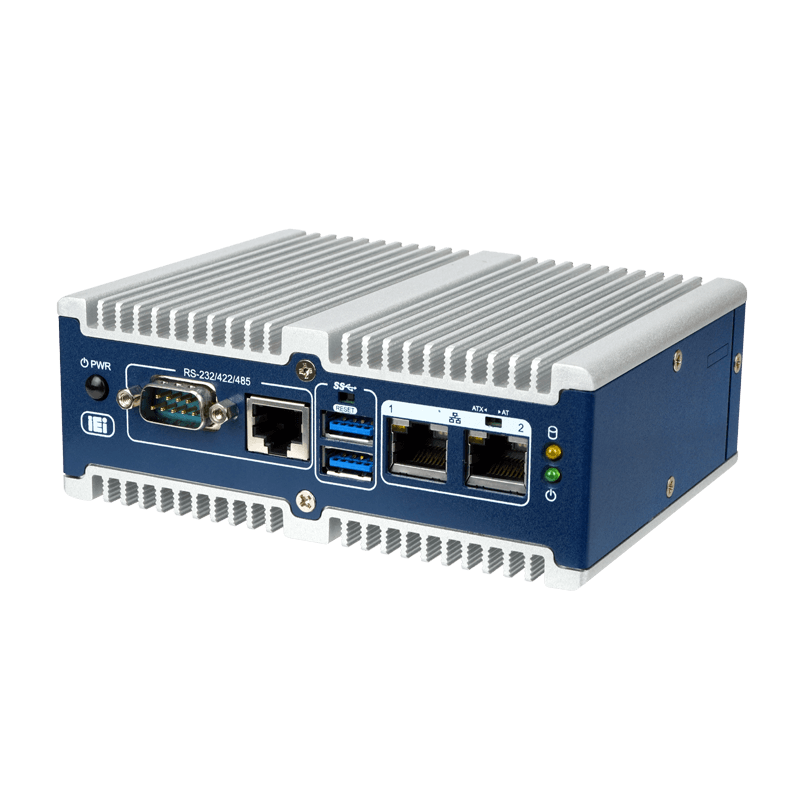

ITG-100AI

Fanless Ultra Compact Size AI Embedded System

ITG-100AI-AI-embedded-system
ITG-100AI-AI-embedded-system
ITG-100AI-AI-embedded-system
  • ITG-100AI-AI-embedded-system
  • ITG-100AI-AI-embedded-system
  • ITG-100AI-AI-embedded-system
» Intel®Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
» Two GbE LAN ports
» Two RS-232/422/485
» M.2 A-key slot for WiFi Module
» Pre-installed Mustang-MPCIE-MX2, 2 x Intel Myriad X VPU for AI deep learning workload consolidation

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
  • Chipset:
    SoC
  • System Memory:
    1x 204-pin DDR3L SO-DIMM slot pre-installed with 8 GB memory
  • Power:
    Input : 2-pin terminal block: 9~36V DC-in
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
    Operating Vibration: MIL-STD-810G 514.6C-1
    Safety/EMC: CE/FCC
I/O Interface
I/O Ports
  • USB: 2 x USB 3.0
  • Ethernet:2 x RJ-45 PCIe GbE by Intel® I211 controller
  • COM Port:2 x RS-232/422/485 (DB-9/RJ45)
  • Display:1 x VGA
Expansion Slots
Expansion Slots M.2:
1 x M.2 A key 2230 (PCIe by 1, USB2.0)
PCIe Mini:
Pre-installed Mustang-MPCIE-MX2
System
Cooling method / System Fan Fanless
Drive Bays SATADOM: Pre-installed 128GB
eMMC: 1 x eMMC 5.0 support (up to 32GB optional)
Micro SD: 1 x Micro SD Slot
Indicator&Buttons
Buttons 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators 1 x LED for HDD (Yellow)
1 x LED for Power (Green)
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Blue & Silver
Dimensions
Dimensions 137 x 102.8 x 49.4 (WxDxH) (mm)
Environment
Operating Temperature -20°C ~ 50°C with air flow
Humidity 10% ~ 95%, non-condensing

Ordering Information

ITG-100AI-E1/8GB/S-R10 Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 8GB DDR3L pre-installed memory, VGA, M.2, COM, 9-36V DC, Mustang-MPCIE-MX2 and RoHS

Package Contents

Package Content
  • 1x 36w Adapter

  • 1x Power Cable
