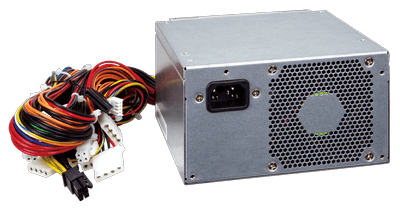

ACE-A130C

300 W PS/2 ATX Power Supply with ErP

ACE-A130C
ACE-A130C-S
  • ACE-A130C
  • ACE-A130C-S
300 W PS/2 ATX Power Supply with ErP

Hardware Spec.

Input
Voltage 90~264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 4A (RMS)@115VAC, 2A (RMS)@230VAC
Inrush Current 80A max. for 115VAC, 160A max. for 230VAC
Output
Voltage +3.3V/19A,+5V/16A,+12V1/17A,+12V2/17A,-12V/0.5A,+5Vsb/3A,-5V/0.1A
Over Voltage Protection +3.3V: 3.7V-4.3V
+5V: 5.74V-7.0V
+12V1 and +12V2: 13.4V-15.6V
Short Circuit Protection +3.3V, +5V, +12V or -12V shutdown and latch off
General
Watt 300
Efficiency 87%
MTBF 100000
Operating temperature 0°C ~ 50°C
Storage temperature -20°C ~ 80°C
Dimensions 140 x 150 x 86
Output Connector 1 x 20+4-PIN ATX,
2 x 4-pin 12V CPU,
7 x HDD/CDROM,
1 x Graphics card power,
1 x FDD,
2 x SATA

Ordering Information

ACE-A130C-S-R11 300W PS/2 ATX Power Supply with ERP/PFC & on/off switch,meets 80 plus(Gold);RoHS
ACE-A130C-R11 300W PS/2 ATX Power Supply with ERP& PFC,meets 80 plus(Gold);RoHS
