POCm-W24C-ULT3

24” Medical Panel PC with 6th Generation Intel® mobile
ULT Core™ i7/i5/Celeron® processor

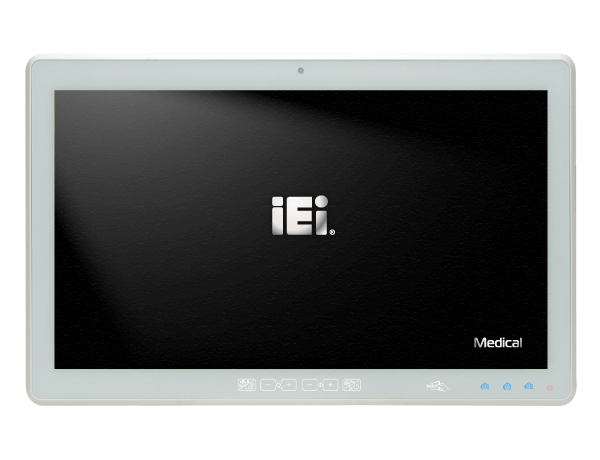

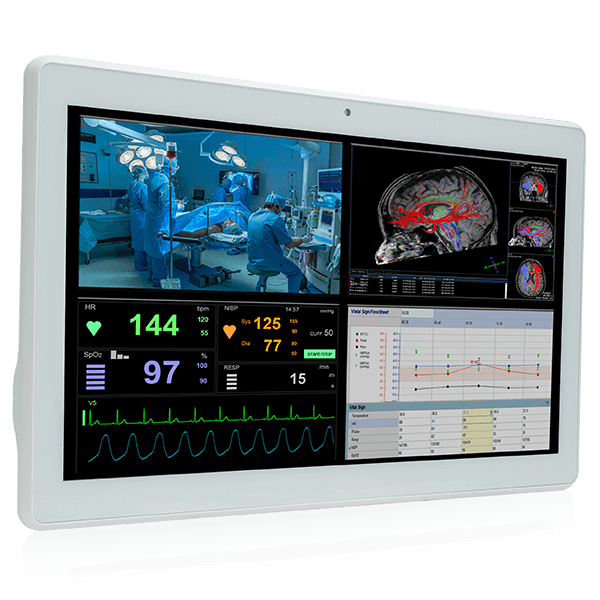

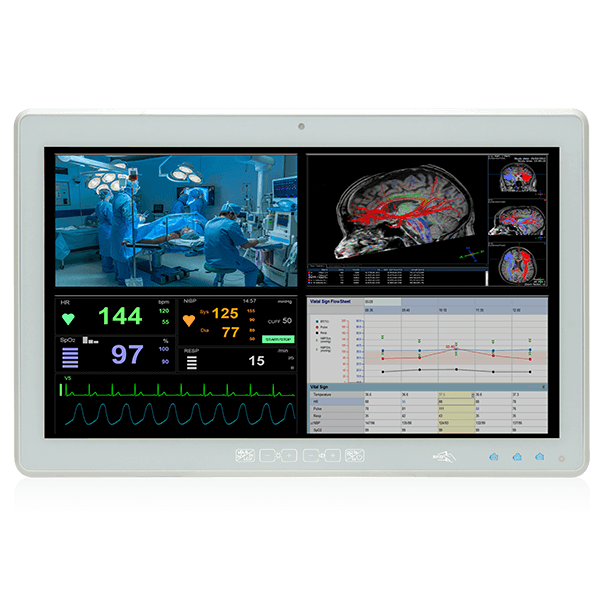

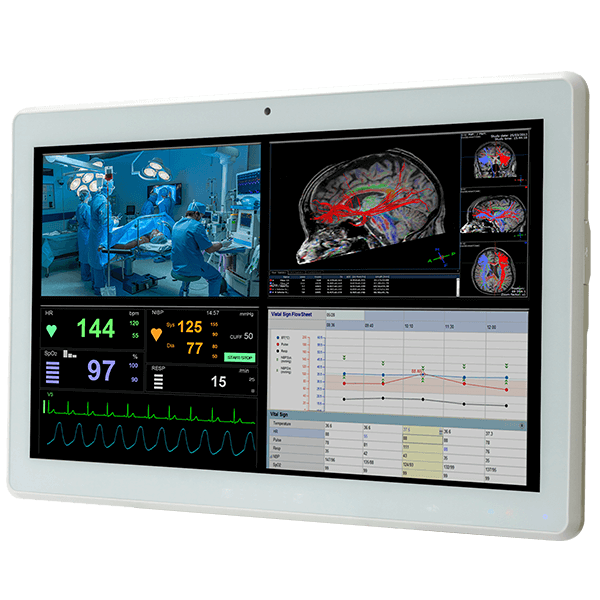

POCm-W24C-ULT3 Medical Panel PC
POCm-W24C-ULT3-medical-panel-PC
POCm-W24C-ULT3-medical-Panel-PC
POCm-W24C-ULT3-medical-Panel-PC
POCm-W24C-ULT3-medical-Panel-PC
POCm-W24C-ULT3-medical-Panel-PC
  • POCm-W24C-ULT3 Medical Panel PC
  • POCm-W24C-ULT3-medical-panel-PC
  • POCm-W24C-ULT3-medical-Panel-PC
  • POCm-W24C-ULT3-medical-Panel-PC
  • POCm-W24C-ULT3-medical-Panel-PC
  • POCm-W24C-ULT3-medical-Panel-PC
» 24＂ fanless FHD medical grade panel PC
» Intel® Celeron®, Core™ i5/i7 Skylake ULT SoC processor
» Three hot-swappable batteries with a total runtime of 8~16 hours is ideal for non-powered medical carts
» The battery docking station can perform fast charging, taking only 3 hours from 0 to 100%

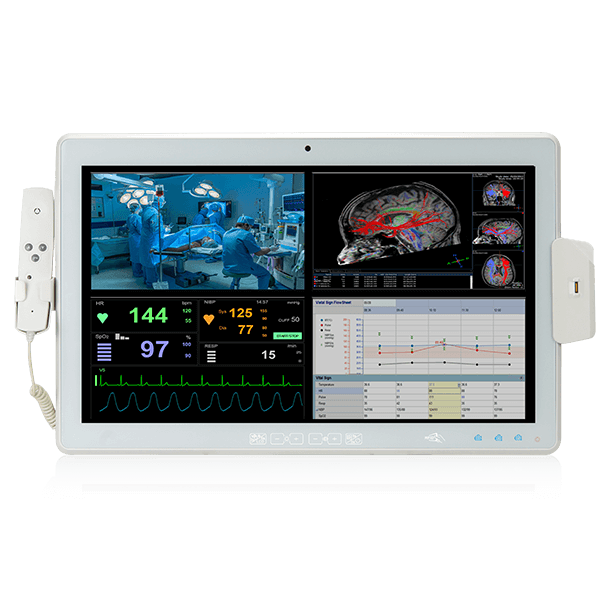

» Optional integrated RFID, 3-in-1 card reader, external 1D/2D barcode reader and USB phone
» Certification:CE,FCC Class B Part18, IEC 60601-1:2005+AMD1:2012 ( Edition 3.1), IEC 60601-1-2: 2014 (Edition 4.0)

Specifications

Hardware Spec.

Display
LCD Size 24＂
Brightness(cd/m2) 250
Max Resolution 1920x1080
Contrast Ratio 1000:1
Backlight MTBF(hrs) 30000
System
Cooling method / System Fan Fanless
CPU 6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U
Storage 1 x 2.5＂ accessible SATA HDD bay
2 x M-key M.2 2242/60/80 (PCIe+SATA) with RAID
Communication
Bluetooth V4.2 (M.2 2230 A-E key module)
Wi-Fi IEEE 802.11 a/b/g/n/ac 2T2R module
I/O Interface
Audio 2 x 3W Speaker
Expansion 1 x Full-size/half-size PCIe Mini (PCIe+USB)
RAM Two 260-pin 2400/2133MHz dual-channel DDR4 SO-DIMM, 4GB pre-installed (system max. 32GB)
I/O Ports and Switches 2 x USB 2.0 (side)
4 x USB 3.0 port
2 x HDMI™ output
2 x GbE LAN port
2 x RS-232/422/485
1 x Audio out (side) + 1 x Mic in (side)
1 x Digital Mic
1 x DC jack
Power
Power adapter 150W medical power adapter
Power Supply 3 slots for hot swappable battery pack
Environment
Operating Temperature 0°C~40°C
Humidity 10% to 90% (non-condensing)
Storage Temperature -20°C~60°C
IP Level Front: IP65, Back: IP32
Physical Characteristics
Color White
Mounting Wall, Stand and Arm VESA 100/75
Dimensions (LxWxH) (mm) 594.6 x 379.6 x 71 mm
Construction Front Panel ABS+PC plastic with anti-bacterial material
Weight
Weight 8.18 kg without batteries
9.53 kg with 3 batteries
Touch
Touch Screen Projected capacitive type with 10-point multi-touch
Other Features
Camera 5-megapixel CMOS front-facing camera with auto-focus and digital microphone
System Cooling Fanless
Microphone digital microphone
OSD Function
OSD Function 1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock & LCD on/off
1 x Task Manager & Power on/off
LED Function
LED Function 1 x RFID indicator
3 x Battery indicator (Color : Blue/Red)
1 x Power Indicator

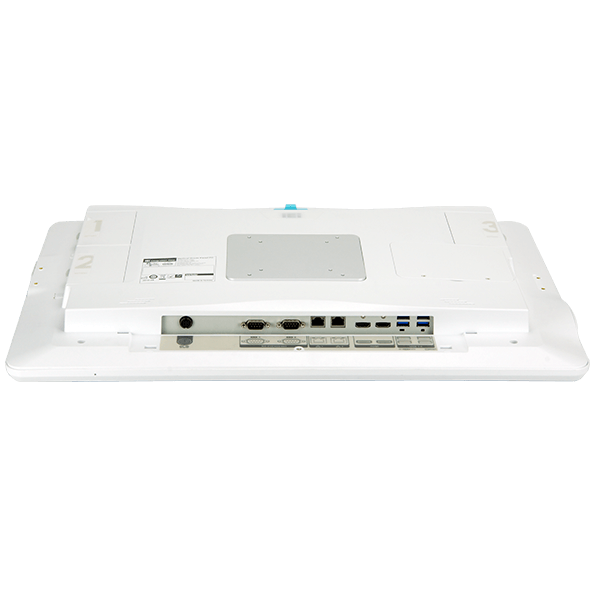

I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Mic
1 x Line out
2 x USB 2.0
4 x USB 3.2 Gen1x1
2 x LAN (GbE)
2 x RS-232
2 x HDMI™
1 x Power In (19V DC jack)
2 x Speaker

Ordering Information

POCm-W24C-ULT3-i7/PC/4G-R10 23.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i7-6600U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10
POCm-W24C-ULT3-i5/PC/4G-R10 23.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i5-6300U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10
POCm-W24C-ULT3-C/PC/4G-R10 23.8" 250cd/m² FHD Medical panel PC ,with Intel® Celeron 3855U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10

Package Contents

Package Content

  • 1 x Power Adapter

  • 1 x Power Cord
