End of Life Notice
* Effective Date: 2021/11/08

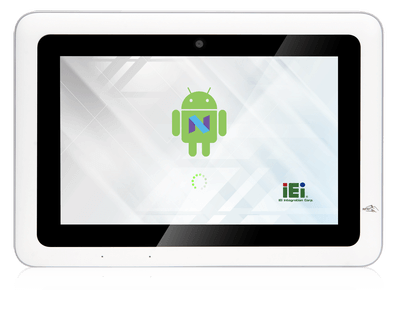

» 10.1” 1280x800 LCD
» Project Capacitive Touch Screen
» CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
» OS: Android 7.1
» Boot Flash: 16GB eMMC Nand Flash
» RAM: 2GB LPDDR3
Hardware Spec.
| Communication | |
|---|---|
| Bluetooth | Bluetooth V4.1 |
| Wi-Fi | 802.11 a/b/g/n/ac |
| Display | |
| Brightness(cd/m2) | 250 cd/m2 (typ.) |
| Contrast Ratio | 800:1(typ.) |
| LCD Size | 10.1” |
| Max Resolution | 800(RGB) x 1280 |
| Environment | |
| Humidity | 10% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 50°C with air flow |
| Safety & EMC | CE/FCC Class B |
| Storage Temperature | -20°C ~ 60°C |
| Form factor | |
| Form factor |
10.1” 1280x800 LCD Project Capacitive Touch Screen CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz) OS: Android 7.1 Boot Flash: 16GB eMMC Nand Flash RAM: 2GB LPDDR3 |
| Function Key | |
| Function Key | 1 x Reset button |
| I/O Interface | |
| Ethernet | 1 x GbE RJ45 by RTL8211E with PoE (PD) |
| I/O Ports |
1 x RS-232 (DB-9) 1 x RS-232/422/485 (DB-9) 4 bit DIO (2 in, 2 out) |
| USB |
1 x USB 3.0 Type A 2 x USB 2.0 Type A |
| Other Features | |
| Audio | 1 x Speaker (2W) |
| Camera | Front 5-megapixel (CMOS) |
| Microphone | 2 x Digital Mic in |
| RFID Reader |
13.56 MHz ISO4443 A/B, read-write capable, ISO 14443A (MIFARE), ISO 14443B (FeliCa) |
| Physical Characteristics | |
| Color | White |
| Dimensions (LxWxH) (mm) | 293 x 209.5 x 44.5 |
| Mounting | VESA Mount 75mmx75mm |
| Net Weight | 1.84 kg |
| Power | |
| Input |
9 V~30 V DC input (φ2.5/5.5mm DC Jack) 2 pin terminal block DC input |
| Storage | |
| Storage | 1 x Micro SD slot |
| System | |
| Chipset | SoC |
| Cooling method / System Fan | Fanless |
| CPU |
Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz) |
| On-board Memory | 2GB LPDDR3-1866 |
| Storage | 16GB eMMC NAND FLASH |
| Touch | |
| Touch Screen | 10 points Project Capacitive |
| LED Function | |
| LED Function |
1 x Power LED 1 x Wi-Fi LED 1 x Bluetooth LED |
Ordering Information
| IOVU-210AD-RK39-R10-US | 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, US reg, ROHS |
|---|---|
| IOVU-210AD-RK39-R10-TW | 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, TW reg, ROHS |
| IOVU-210AD-RK39-R10-EU | 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, EU reg, ROHS |
| IOVU-210AD-RK39-R10-CN | 10.1" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, WiFi/BT, IEEE 802.3at for POE, phone jack, 4xGPIO, Android 7.1, NFC, CN reg, ROHS |
Package Contents
| Package Content |
|
|---|
