IOVU-207AR-RK39

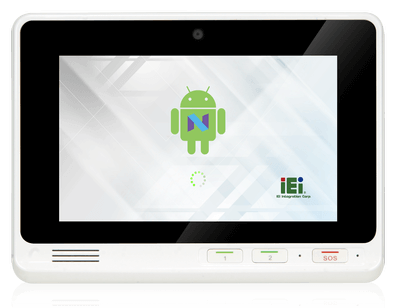

7” RISC-based Panel PC

End of Life

End of Life Notice

* Effective Date: 2021/09/06

» OS: Android 7.1
» CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
» Boot Flash: 16G eMMC Nand Flash
» RAM: 2GB LPDDR3-1866
» 1 x SOS Key (with red bar): Press for calling help in case emergency
» 2 x Function Keys ( with green bar ): Default hot key by AP programming

Hardware Spec.

Communication
Bluetooth Bluetooth V4.1
Wi-Fi 802.11 a/b/g/n/ac
Display
Brightness(cd/m2) 300 cd/m2 (typ.)
Contrast Ratio 800:1(typ.)
LCD Size 7”
Max Resolution 720 RGB (H) x 1280 (V)
Environment
Humidity 10% ~ 95%, non-condensing
Operating Temperature -10°C ~ 50°C with air flow
Safety & EMC CE/FCC Class B
Storage Temperature -20°C ~ 60°C
Form factor
Form factor OS: Android 7.1
CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
Boot Flash: 16G eMMC Nand Flash
RAM: 2GB LPDDR3-1866
1 x SOS Key (with red bar): Press for calling help in case emergency
2 x Function Keys ( with green bar ): Default hot key by AP programming
Function Key
Function Key 1 x SOS button key
1 x Reset Button
2 x Function Key
I/O Interface
Ethernet 1 x GbE RJ45 by RTL8211E
I/O Ports 2 pin terminal block for SOS key
USB 1 x USB 3.0 Type A
1 x USB 2.0 Type A
Other Features
Audio 1 x Speaker (2 W)
Camera Front 5-megapixel (CMOS)
Microphone 1 x Digital Mic in
Physical Characteristics
Color White
Dimensions (LxWxH) (mm) 210.7 x 154.7 x 29.6
Mounting VESA Mount 75mmx75mm
Net Weight 0.72 kg
Power
Input 9 V~30 V DC input (φ2.5/5.5mm DC Jack)
Storage
Storage 1 x Micro SD slot
System
Chipset SoC
Cooling method / System Fan Fanless
CPU Rockchip RK3399
(Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
On-board Memory 2GB LPDDR3-1866
Storage 16GB eMMC NAND FLASH
LED Function
LED Function 1 x Power LED
1 x Mail
1 x Phone
1 x Exclamation Mark

Ordering Information

IOVU-207AR-RK39-R10-US 7" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, Gigabit Ethernet, US reg, ROHS
IOVU-207AR-RK39-R10-TW 7" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, Gigabit Ethernet, TW reg, ROHS
IOVU-207AR-RK39-R10-EU 7" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, Gigabit Ethernet, EU reg, ROHS
IOVU-207AR-RK39-R10-CN 7" TFT-LCD; Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Camera, WIFI/BT, Gigabit Ethernet, CN reg, ROHS

Package Contents

Package Content
  • 1 x IOVU-207AR Device

  • 1 x Wall mount bracket

  • 1 x Screw set


Download Specs.
