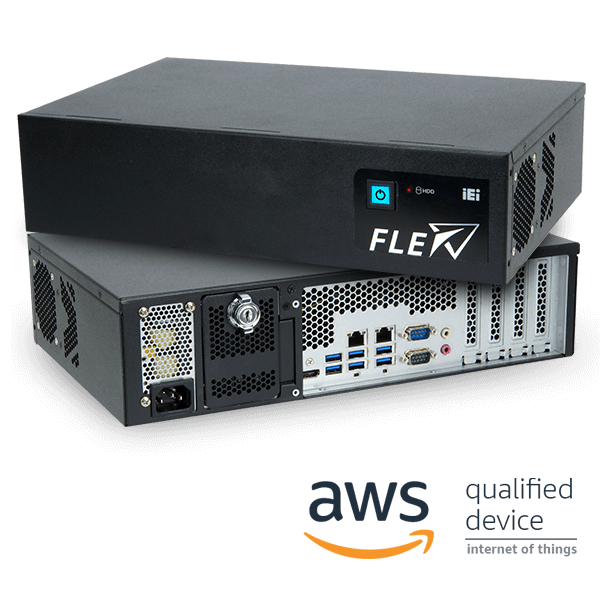

Overview● 2U AI Modular PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor● Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10● Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots● Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support● QTS-Gateway support● Modular LCD panel kit design (Please refer: FLEX-PLKIT Selection)
IEI AI Ready Solution Accelerates Your AI Initiative
The FLEX-BX200 is an AI hardware ready system ideal for deep learning inference computing to help you get faster, deeper insights into your customers and your business. IEI’s FLEX-BX200 supports graphics cards, Intel FPGA acceleration cards, and Intel VPU acceleration cards, and provides additional computational power plus end-to-end solution to run your tasks more efficiently. With the NVIDIA TensorRT, QNAP QuAI, and Intel OpenVINO AI development toolkit, it can help you deploy your solutions faster than ever.
8th Generation Intel® Core™ Desktop Processors
4-Bay Hot Swappable HDD RAID 0/1/5/10 Protection
The FLEX series offers four 2.5”HDD bays with high speed SATA 6Gb/s interface that can expand storage capabilities and enable fast data transfers. The equipped Intel Q370 chipset provides reliable and high performance hardware RAID protection to back-up your media and critical information. You can configure the RAID 0/1/5/10 from the BIOS menu to increase performance and/or provide automatic protection against data loss from drive failure.
What type of RAID do I need?
● RAID 0 (Striping) -The highest performing level
● RAID 1 (Mirroring) - Data safety
● RAID 5 (Distributed Parity)-offers both data safety and performance
● RAID 10 (combining mirroring and striping) data safety and big data volume
Four PCIe x4/x8 Low Profile Expansion Slots
The FLEX series supports multiple PCIe slots including two PCIe 3.0 x8 and two PCIe 3.0 x4 slots, which are compatible with standard low profile add-on cards, to meet different edge inference computing applications.
● High Speed: 10GbE card, fiber network card
● I/O card: Serial port card, USB card, LAN card, etc.
● AI accelerating card: VPU card, FPGA, GPU card, etc.
● Wireless card: Wi-Fi card, mobile wireless card, etc.
● Storage card
HDMI 1.4 Output Delivers 4K High Definition Video and Audio
The FLEX-BX200 integrated with Intel® Coffee Lake Desktop processor supports HDMI 1.4 output port delivering 4K 24 Hz with amazing details. And a single HDMI cable carries both video and audio signals, which makes hookup particularly easy.
Thunderbolt™ 3 Dual Ports (optional)
The FLEX-BX200-Q370 is designed in 2U height for easy and quick installation in control cabinets.
The FLEX-200-Q370 wall-mountable industrial box PC provides two-way direction for wall mounting, allowing users to orient the I/O panel upwards or downwards.
All-in-One Panel PC
The FLEX series featuring a modular design can be fitted with different sizes of panel kits to expand its capabilities.
● More than 7 SKUs provided
● Various monitor choices: 15"/15.6"/17"/18.5"/22"/24"
● PCAP touch screen
● 250W or 350W AC power supply
● Easy assembly and maintenance
● One stop shopping and build your own system to accelerates time to market
Spec Item Description Form factor SBC Form Factor 8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151
Intel® 300 Series Chipsets Q370
FLEX AI Modular Box PC
I/O Interface I/O Ports 1 x HDMI output
2 x GbE LAN
6 x USB 3.0 Type-A
2 x RS-232 DB-9 type
1 x Mic in
1 x Line out
1 x AC power in Inlet
Expansion Slots Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
2 x PCIe 3.0 by 4 (maximum card size supported: 68 mm x 167 mm)
System Cooling method / System Fan System fan Drive Bays 4 x Accessible 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1/5/10 support) Indicator&Buttons Buttons Power button with power LED (power on=Blue)
AT/ATX mode switch
Color Color Black C Dimensions Dimensions 357 x 230 x 88 Weight Weight 4kg Environment Operating Temperature -20°C ~ 50°C (with SSD and TDP 65W processor)
-20°C ~ 40°C (with HDD or add-on cards without fan)
Humidity 5% ~95%, non-condensing
Item No. Description FLEX-BX200-Q370-i3/25-R10 2U AI Modular BOX PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 250W PSU, R10 FLEX-BX200-Q370-P/25-R10 2U AI Modular BOX PC, Intel® Penturm® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 250W PSU, R10
HDD door key
