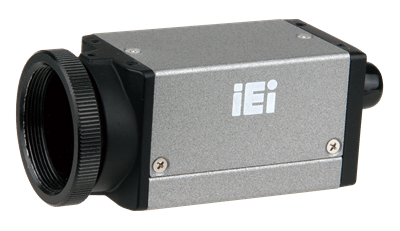

HSC-03M2-O

Lightweight USB 3.0 Camera, Micron MT9V022 CMOS, Global Shutter, 60 FPS at 752x480, without Lens

End of Life

End of Life Notice

* Effective Date: 2019/11/06

» IEI Vision SDK available
» Compact and lightweight industrial camera with Aptina global shutter CMOS sensor
» Compatible with USB 3.0 SuperSpeed specification
» Resolutions up to 752x480
» Frame rates up to 60 FPS
» Support AMCap and other DirectShow compatible software
» Other commercial vision software supported through DirecShow, ex: Halcon
» IEI Similarity technology can provide image enhancement

Hardware Spec.

Appearance
Dimension 58.9 mm x 29 mm x 29 mm
Environment
Operating Temperature 0°C ~ 45°C
Storage Humidity 20% ~ 95%
Storage Temperature -30° ~ 60°C
Operating Humidity 20% ~ 80%
Others
Power Consumption < 3.5W
Power Requirements 5V via external connector or USB 3.0
Parameters
ADC 8-bit/10-bit
Pixel Size 6.0 µm
Readout Method Global shutter
Resolution 752 x 480
Sensor Name Micron MT9V022
Sensor Type CMOS
Auxiliary Output 3.3 V, 100 mA max
Sensor Size (inch) 1/3-inch
Chroma Mono
Compliance CE, FCC
Frame Rate 60FPS
Interface USB 3.0 interface
Lens Mount CS-mount
Mass 79g
Megapixels 0.3 MP
Software Support
SDK 1 x Windows
OS Support 1 x Microsoft Windows 7 64-bit
Operating System(Support UVC)
1 x Microsoft Windows 10 64-bit
1 x Microsoft Windows 8.1 64-bit
1 x Microsoft Windows 8.1 32-bit
1 x Microsoft Windows 7 32-bit
1 x Microsoft Windows 10 32-bit
System Requirement
CPU Intel® Core™ i5 or above
Memory 2GB or more

Ordering Information

HSC-03M2-O-R10 USB3.0 Monochrome Indutrial camera, 1/3" Aptina(On-semi) CMOS, 752x480 pixel, 60FPS

Package Contents

Package Content
  • 1 x HSC-03M2-O

  • 1 x Mounting bracket

  • 1 x CS to C mount adapter

  • 1 x QIG
