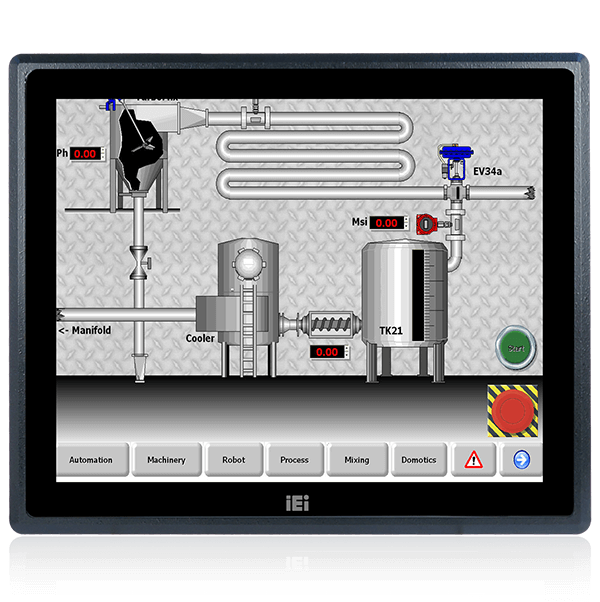

PPC-F17B-BT

17” Fanless Intel® Bay Trail Solution

PPC-F17B-BT_industrial_panel_PC
PPC-F17B-BT_industrial_panel_PC
PPC-F17B-BT_industrial_panel_PC
  • PPC-F17B-BT_industrial_panel_PC
  • PPC-F17B-BT_industrial_panel_PC
  • PPC-F17B-BT_industrial_panel_PC
» Intel® Celeron® J1900 quad-core SoC
» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Projected capacitive multi-touch and resistive single touch options
» Dual full-size PCIe Mini card expansion
» 9V~36V DC wide range DC input

Hardware Spec.

Display
LCD Size 17”(5:4)
Brightness(cd/m2) 350
Max Resolution 1280 (W) x 1024 (H)
Contrast Ratio 800:1
Backlight MTBF(hrs) 50000
I/O Interface
I/O Ports and Switches 2 x RJ-45 LAN Port
2 x USB 3.0
2 x USB 2.0
1 x HDMI™ output
2 x RS-232
1 x RS-232/RS-422/485
1 x VGA
1 x 9 V~36 V DC jack (4-pin)
1 x 9 V~36 V DC terminal block
1 x Line-out (PPC-F15B and PPC-17B only)
1 x Power switch
Power
Power adapter 9V~36V DC
Environment
Operating Temperature -10°C~50°C (14°F~122°F)
Humidity 10% to 95% (non-condensing)
Storage Temperature -20°C~60°C (-4°F~140°F)
IP Level IP 65 compliant front panel
Physical Characteristics
Dimensions (LxWxH) (mm) 341.4 x 408.4 x 51.8
Cutout Dimensions 323 x 390
Weight
Weight 5 kg
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.26 x 0.26
Viewing Angle (H-V) 170° / 160°
Touch
Touch Screen 2-point projected capacitive type touchscreen 6H
Touch Controller 5-wire resistive single-touch type flat touchscreen 3H

Ordering Information

PPC-F17B-BTi-J1/2G/R-R13 17" 350 cd/m2 SXGA Panel PC with Intel® Celeron® Processor J1900, TDP 10W, 2GB RAM*1, support iRIS-2400, black color, 9-36V DC input, resistive touch window with AG coating, R13

Package Contents

Package Content
  • 1 x PPC-FxxB-BTi Panel PC

  • 1 x User Manual

  • 1 x Touch Pen

  • 1 x Power Cord

  • 1 x Screw Pack

  • 1 x Power Adapter
