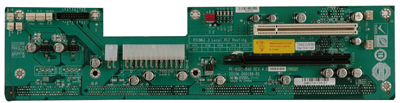

5-slot backplane with one PCIe x16 slot, two PCIe x1 slots and one PCI slot

End of Life

End of Life Notice

* Effective Date: 2017/09/19

Hardware Spec.

Total Slot Total Slot
Expansion Slots PCIe x 16
PCIe x 1 2
PCI Slot 1
PSU Type PSU Type
USB Connectors by Pin USB Connectors by Pin

Ordering Information

PE-6SD2-R40 PICMG 1.3 ,2U,5 Slots Backplane with 1PCIe x16 and 2PCIe x1 and 1PCI Slots,RoHS
