ACE-A622A/B

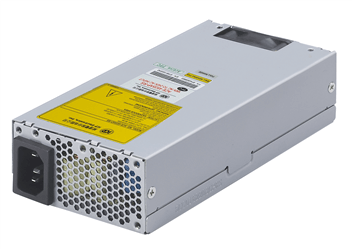

220 W 1U Type ATX Power Supply

End of Life

End of Life Notice

* Effective Date: 2019/10/23

220 W 1U Type ATX Power Supply

Hardware Spec.

General
Dimensions 150 x 81.5 x 40.5
Efficiency 68%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector 20-pin ATX, 4-pin 12 V, 3 x HDD, 1 x FDD
Storage temperature -20°C ~ 80°C
Watt 220W
Input
Voltage 90~264 VAC Full Range
Output
Voltage +3.3V/14A,+5V/16A,+12V/16A,+12v2/10A,-12V/0.8A,5Vsb/2.5A

Ordering Information

ACE-A622B-RS-R10 1U flex ATX 220W Power Supply;90~264VAC;ERP;CCL;RoHS
