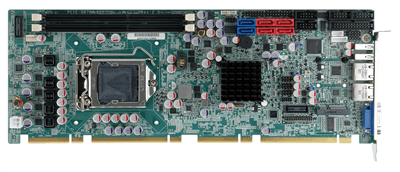

Full-size PICMG 1.3 CPU Card supports LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q67

End of Life

End of Life Notice

* Effective Date: 2020/12/31

» PICMG 1.3 full-size graphics grade solution
» LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processors supported
» Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
» Supports dual independent display by VGA and DVI-D (DVI model)
» Supports PCIe Mini expansion
» Intel® PCIe GbE with Intel® AMT 7.0 support
» Supports SATA 6Gb/s
» Supports RAID function via SATA 6Gb/s and SATA 3Gb/s
» TPM v1.2 hardware security provided by the TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU LGA 1155 socket supports Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor
Chipset Intel® Q67
Memory Two 240-pin 1333/1066 MHz dualchannel unbuffered DDR3 & DDR3L SDRAM DIMMs
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 338 X 126
Net Weight 420g
Storage 6 x SATA :2 X6Gb/s (RAID 0/1/5/10 supported), 4 X 3Gb/s (RAID 0/1/5/10 supported)
I/O Interface
Display Output 1 x VGA :up to 2048x1536@75Hz
Ethernet 2 x LAN LAN1: Intel® 82583V PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 7.0
Audio Description: Supports 7.1-channel HD Audio by IEI
AC-KIT-892HD-R10 kit
I/O Interface 4 x Internal RS-232 :2x5 pin, p=2.54
1 x Internal RS-422/485 :1x4 pin, p=2.0
1 x PS/2 :1x6 pin
1 x LPT :2x13 pin
Expansion Description: PCIe signal and PCI signal via golden finger
1 x PCIe mini Card Slot :Full/Half-size
Other Features
TPM 2x10 pin
Power Consumption 5V@3.45A, 12V@0.32A, Vcore_12V@5.24A,
3.3V@1.69A, 5VSB@0.17A (3.4GHz Intel®
Core™ i7-2600K with two 2 GB 1333 MHz DDR3
Power Supply Support AT/ATX mode
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

PCIE-Q670-R20 Full-size PICMG 1.3 CPU Card supports LGA1155 Intel Core i7/i5/i3/Pentium and Celeron CPU per Intel Q67,DDR3,VGA,Dual Intel PCIe GbE,SATA 6Gb/s,mini PCIe,HD Audio,four RS-232,RoHS

Package Contents

Package Content
  • 1 x PCIE-Q670 single board computer

  • 4 x SATA cable

  • 1 x Dual RS-232 cable

  • 1 x Mini jumper pack

  • 1 x USB cable

  • 1 x QIG
