ACE-935AL

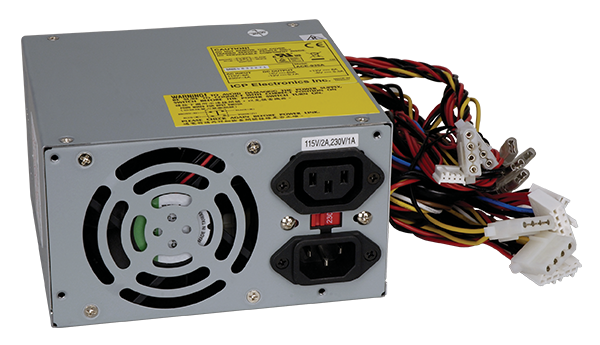

300 W PS/2 AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2021/12/16

300 W PS/2 AT Power Supply

Hardware Spec.

General
Efficiency 68%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector 1 x P8+P9, 1 x Extra +5V (P10), 5 x HDD/CDROM, 2 x FDD
Storage temperature -40°C ~ 75°C
Watt 300W
Input
Voltage 85 ~ 140 VAC, 170 ~ 270 VAC Auto Range
Output
Voltage +5V/40A,+12V/8A,-5V/0.3A,-12V/0.7A

Ordering Information

ACE-935AL-RS 300W AC input PS/2 type AT Power Supply;CCL;RoHS
