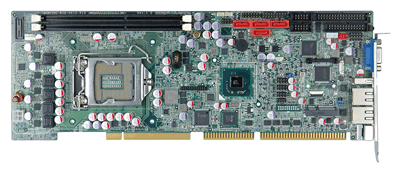

WSB-H610

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61,

End of Life

End of Life Notice

* Effective Date: 2020/12/31

» Full-size PICMG 1.0 CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Two DDR3 & DDR3L 1333/1066 MHz DIMM SDRAM supported up to 16 GB
» Embedded controller on board supports infrared and PECI 2.0 technologies
» Dual Realtek PCIe GbE and LAN1 with ASF 2.0 support
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create raipd OS backup and recovery

Hardware Spec.

System
CPU Intel® Core™ i7/i5/i3, PentiumR, Celeron® processor
Chipset Intel® H61
Memory Two 240-pin 1333/1066MHz dualchannel DDR3 & DDR3L (1.35V) DIMMs
Memory Max. 16GB
Cooling method / System Fan CF-1156A-RS-R11
CF-1156C-RS
CF-1156D-RS
CF-1156E-R11
Physical Characteristics
Dimensions (LxWxH) (mm) 338 X 122
Net Weight 260
Storage
Storage 4 x SATA :3Gb/s(no AHCI & RAID support)
I/O Interface
Display Output 1 x VGA :up to 2048x1536@75Hz
1 x DVI-D :up to 1920x1200@60Hz(Optional)
Ethernet 2 x LAN :1 x Realtek RTL8111E PCIe GbE
controller with ASF 2.0 support,1 x Realtek RTL8111E PCIe GbE controller
Audio Description: :Supports by IEI AC-KIT-892HD-R10 audio kit
I/O Interface 2 x Internal RS-232 :2x5 pin, P=2.54
1 x Internal RS-422/485 :1x4 pin, P=2.0
1 x External USB 2.0
6 x Internal USB 2.0 :2x4 pin, P=2.54
2 x PS/2 :1 x 1x6 pin
1 x LPT :2x13 pin
Expansion 1 x PCIe mini Card Slot
Other Features
TPM 2x10 pin
Power
Power Consumption 5V@4.53A, 12V@0.19A, Vcore_12V@7.81A, 5VSB@0.18A (3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)
Power Supply 5V/12V, Support AT/ATX mode
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

WSB-H610-R10 Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel Core™ i7/i5/i3 CPU per Intel H61,DDR3,VGA,Dual Realtek PCIe GbE,USB 2.0,SATA 3Gb/s,COM,HD Audio and RoHS
WSB-H610-DVI-R10 Full-size PICMG 1.0 CPU card supports 32nm LGA1155 Intel Core™ i7/i5/i3 CPU per Intel H61,DDR3,VGA/DVI-D,Dual Realtek PCIe GbE,USB 2.0,SATA 3Gb/s,COM,HD Audio and RoHS

Package Contents

Package Content
  • 1 x WSB-H610 single board computer

  • 1 x Dual RS-232 cable with bracket

  • 2 x SATA cable

  • 1 x KB/MS Y cable

  • 1 x Mini jumper pack

  • 1 x USB cable

  • 1 x QIG


Download Specs.
