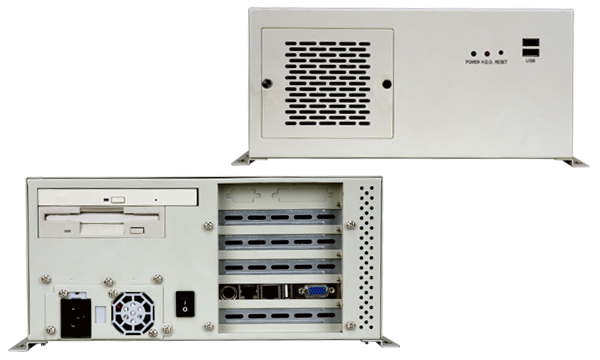

PR-1500G
» RoHS compliant design
» One slim type 5.25” drive bay
» One 3.5” drive bay and one internal 3.5” HDD bay
» Two USB ports on the front panel
» One 8 cm cooling fan
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Half-size, slot SBC |
| I/O Interface | |
| I/O Openings | 1 x LPT, 1 x COM |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots | 5 slots |
| System | |
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays |
1 x 3.5" HDD 1 x Front accessible 3.5” 1 x Slim 5.25” |
| Indicator&Buttons | |
| Buttons | Power switch, reset |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | W: White |
| Dimensions | |
| Dimensions | 254 mm x 286 mm x 132 mm(DxWxH) |
| Weight | |
| Weight | 3.6 kg/6.2 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| PR-1500GWPX-R20/180W | 5-Slot Half size Chassis,White,Powder paint,1x 8cm fan,with 180W ATX PSU,RoHS |
|---|---|
| PR-1500GWPX-R20 | 5-Slot Half size Chassis,ATX Power Switch，White,Powder paint,W/O PSU,RoHS. |
| PR-1500GW-R20 | 5-Slot Half size Chassis,AT Power Switch，White,Powder paint,W/O PSU,RoHS |
