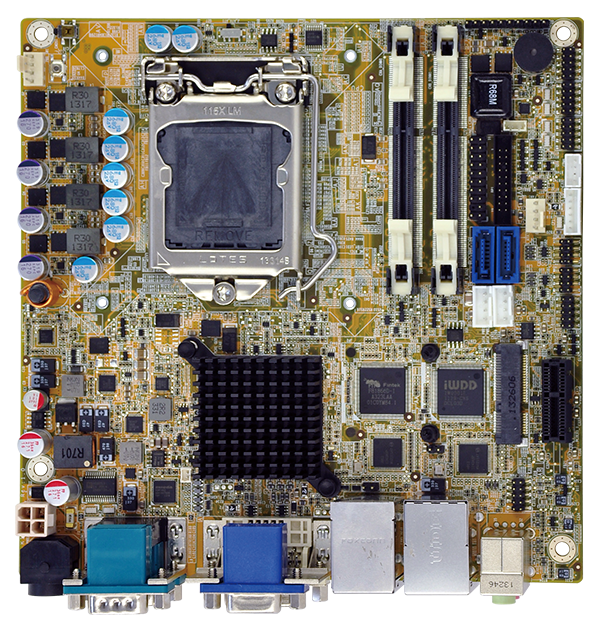

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU

» 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» DDR3 1066/1333/1600 MHz dual-channel SDRAM
» 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
» Rich media acceleration for hardware decode and encode acceleration
» High-speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA
» IEI Jumper-less function

Hardware Spec.

System
CPU 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
Chipset Intel® H81
Memory Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM unbuffered SO-DIMM
Memory Max. 16GB
Physical Characteristics
Dimensions (LxWxH) (mm) 170 X 170
Net Weight 450g
Storage
Storage 2 x SATA :6Gb/s with SATA power connector
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x DVI-D :up to 2560x1600@60Hz
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN Intel® I211-AT PCIe controller
Audio Description: Realtek ALC662 HD Audio codec
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 2 x External RS-232
3 x Internal RS-232 :2x5 pin, p=2.0
2 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 :2x4 pin, p=2.0
Expansion 1 x PCIe x1
1 x PCIe mini Card Slot :Full-Size slot(support mSATA)
Other Features
TPM 2x10 pin
Power
Power Consumption +12V@6.03A
(Intel® Core™ i7-4770K 3.90 GHz CPU with two 1333 MHz 4 GB DDR3 memory)
Power Supply 12V only DC input
1 x External DC jack (4-pin DIN)
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DH810-R10 Mini-ITX SBC support LGA1150 CPU, DVI-D /VGA / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
KINO-DH810-ECO-R10 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® CPU, DDR3, DVI-D, VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS

Package Contents

Package Content
  • 1 x KINO-DH810 single board computer

  • 2 x SATA with power cable kit

  • 1 x I/O shielding

  • 1 x QIG
