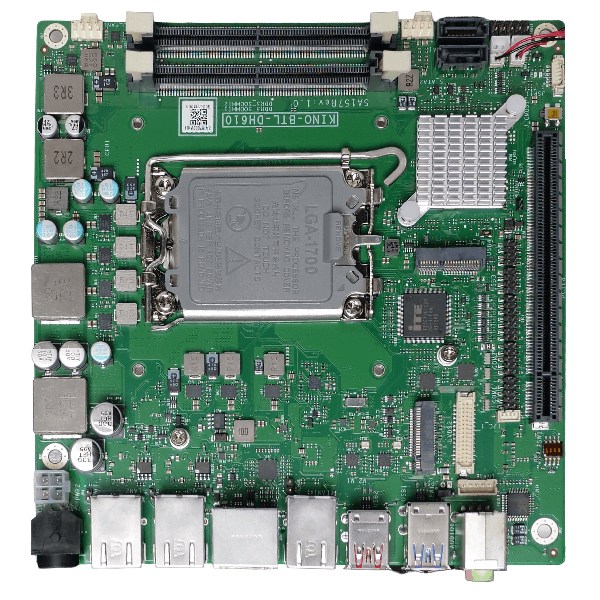

KINO-BTL-DH610
» mini-ITX SBC supports 12th/13th/14th Gen Intel® Core™ processors (Alder Lake-S / Raptor Lake-S) and Intel® Core™ Processors (Series 2) (Bartlett Lake-S)
» 2 x 262-pin DDR5 5600 MHz SO-DIMM, dual-channel, supports up to 96GB
» Triple independent display via LVDS, HDMI and DP
» Support triple Intel® I226V 2.5GbE controller
» Support PCIe Gen4 x16, M.2 M key and M.2 E key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX SBC |
| System | |
|---|---|
| CPU | LGA1700 socket supports 12/13/14th generation Intel® Core™ i9/i7/i5/i3, Celeron®, Pentium® processor and Intel Core Processors (Series 2) (Bartlett Lake S) (up to 65W TDP CPU) |
| Memory | 2 x 262-pin DDR5 5600 MHz SO-DIMM, dual-channel |
| Memory Max. | up to 96GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW:900g / NW:450g |
| Storage | |
|---|---|
| Storage | 2 x SATA : 6Gb/s |
| I/O Interface | |
|---|---|
| Display Output | 1 x Display Port : 1.4 (up to 4K @60Hz) |
| 1 x HDMI™ : 2.0 (up to 4K @60Hz) | |
| 1 x LVDS : up to 1920 x 1200 | |
| Ethernet | 3 x LAN - LAN1: Intel® I219LM 1GbE controller LAN2: Intel® I226-V 2.5GbE controller LAN3: Intel® I226-V 2.5GbE controller |
| Audio | HD Audio : Realtek ALC888S HD codec 2 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External USB 3.2 Gen1x1 : Type-A, 5Gb/s | |
| 2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C : 1x4 pin, p=1.25 | |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 1 x PCIe x16 : with x16 Signal Gen4 |
| Other Features | |
|---|---|
| TPM | 1 x Intel TPM 1 x Onboard TPM (Infineon SPI TPM 2.0 with SLB9670VQ2.0) |
| Power | |
|---|---|
| Power Consumption | 12V@10.9A, 19V@6.8A, 24V@5.3A, 28V@4.6A, (Intel® Core 14900 with 16 GB 4800 MHz DDR5 memory, EuP mode disabled) |
| Power Supply | 12-28V DC |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Card Slot Interface | |
|---|---|
| M.2 | 1 x M.2 M key (2280, PCIe Gen3 X 4) 1 x M.2 E key (2230, PCIe Gen3 x1 &USB 2.0) |
Ordering Information
| KINO-BTL-DH610-R10 | Mini-ITX SBC supports LGA1700 12/13/14th Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processor & Intel Core Processors (Series 2)(Bartlett Lake S), DDR5, Triple independent displays, quad LAN, USB 3.2, SATA 6Gb/s and RoHS |
