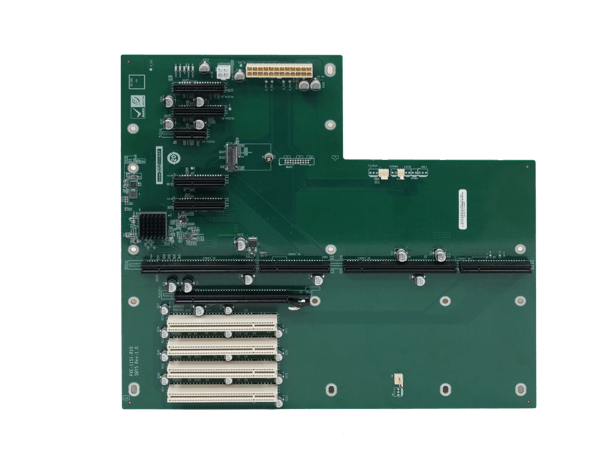

PICMG 1.3 Passive Backplane

» PICMG 1.3
» 11 Slots Backplane with one PCIe x16 (x8 signal), one PCIe x1, three PCIe x4 (x4 signal), one PCIe x4 (x2 signal) and four PCI Slots
» RoHS

Hardware Spec.

I/O Interface
Expansion 1 x M.2(NGFF) : 1 x M.2 A key (2230)
4 x PCI Slot
1 x PCIe x1
1 x PCIe x16 : x8 signal
4 x PCIe x4 -
3 x PCIe (x4 signal)
1 x PCIe (x2 signal)

Ordering Information

PXE-11S1-R10 PICMG 1.3 ,11 Slots Backplane with 1PCIe x16, 1PCIe x1 and 4PCIe x4(1PCIe Gen3 x2 signal) and 4PCI Slots,RoHS

Package Contents

Package Content
  • 1 x PXE-11S1 Expansion Card

Download Specs.
