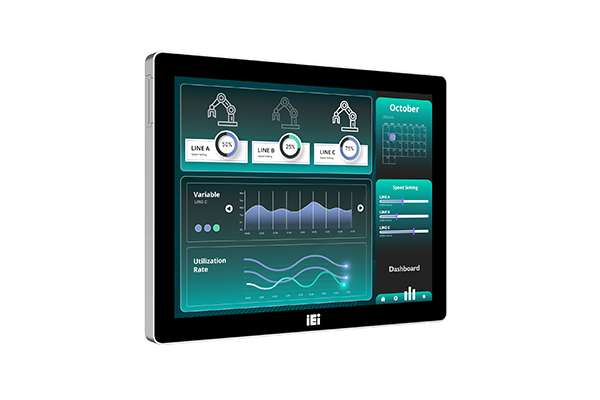

AFL4-W101-ADLP
» Intel® Alder Lake-P Platform
» New narrow bezel design
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Support WiFi 6E and Bluetooth5.2
The AFL4-ADLP is a fanless and stylish panel PC from IEI's AFOLUX series, which offers affordable luxury solutions for light industrial markets. It runs on a 12th Gen Intel® Core™ processor and 8GB LPDDR4x soldered memory, providing excellent performance and reliability. It features an optimized PCAP touchscreen, a rich I/O port selection, and the latest wireless communication technology – Wi-Fi 6E and Bluetooth 5.2, making it ideal for applications that need high-speed connectivity and large embedded RAM. The AFL4-ADLP is suitable for various fields such as factory automation, retail, digital signage, transportation and surveillance.
8GB LPDDR4x & NVMe
Front Panel IP64
10-point AG PCAP Touch with Anti-UV
Narrow Bezel
2.5 GbE LAN
WiFi 6E & Bluetooth 5.2
-10°C~50°C
Fanless
Superior Performance by the Power of 12th Gen Intel Core Processor
With the 12th Gen Intel® Core™ i7/i5/i3 processor (code name: Alder Lake-P) integrated, the AFL4-ADLP series delivers unparalleled edge computing performance and real-time IoT workload consolidation and AI inferencing. The powerful processor boasts an impressive maximum of 12 cores, ensuring exceptional multitasking capabilities and delivering lightning-fast performance with a burst frequency of 4.7GHz. The AFL4-ADLP series also features the Intel® Iris® Xe graphics with up to 96 graphics execution units (EUs), which boosts graphics performance and enables the panel PC to display high-quality visuals and better support imaging applications.
Powerful Graphics and Computing Performance for Diverse Applications
PCAP Touch Screen with High Sensitivity, Visibility and Durability
With glass-glass PCAP touch technology and industrial-grade controllers, IEI's rugged touchscreen offers high sensitivity, visibility and durability for industrial applications. IEI AFOLUX panel PCs with this rugged touchscreen can work with gloves in harsh environments, such as food processing, chemical and beverage industries.

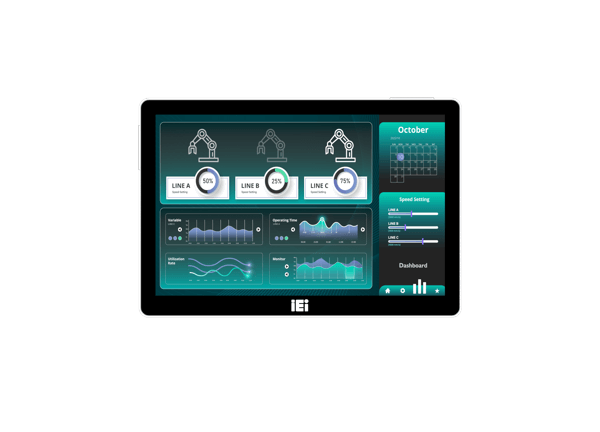

A Touch of Elegance and a Dash of Durability
The AFL4-ADLP panel PC is designed to be both aesthetically pleasing and highly durable. Its sleek aluminum housing and narrow bezel surrounding the true-flat screen give it a modern and stylish appearance. Furthermore, its IP64 compliant front panel ensures that it is dust-tight and resistant to water splashing, making it suitable for use in harsh and challenging environments such as factories, warehouses, workshops, and outdoor settings. With its strong build quality, this panel PC is capable of withstanding tough conditions, thereby enhancing industrial productivity and efficiency.
Durable Aluminum Die Casting Housing
The AFL4-ADLP panel PC stands out with its robust aluminum die casting housing, providing exceptional durability, corrosion resistance, and superior thermal conductivity. This makes it an ideal choice for industrial use, surpassing the limitations of plastic enclosures. The panel PC is also environmentally friendly as it is crafted from recyclable and reusable aluminum.
{{ icon.title }}
Connect Fast NVMe SSDs with Dual M.2 PCIe Gen4 Slots
The AFL4-ADLP panel PC features two M.2 M-key slots, offering versatile connectivity options for various devices such as NVMe SSDs, I/O expansion cards, and peripherals, ensuring efficient usage of space and power. These M.2 M-key slots support PCIe Gen4, a cutting-edge interface that provides double the bandwidth and data transfer capabilities compared to PCIe Gen3. With PCIe x4 bus connections, the AFL4-ADLP can achieve a maximum theoretical bandwidth of 64 Gbps. This advanced technology allows for high-performance expansion options, enhancing the overall functionality and productivity of the panel PC.
Expand the Screen with 4K HDMI™
Connect a second display and stream 4K videos smoothly with the panel PC powered by Intel® Iris® Xe graphics. The AFL4-ADLP has 96 EUs and hard decoding capability, which enables high-quality and uninterrupted videos on the screen. The HDMI™ port on the side panel is easily accessible and connectable, which facilitates switching between different tasks or sharing the screen with others.
IoT Deployment Made Easy with Wireless Network Capability
The AFL4-ADLP industrial panel PC is equipped with cutting-edge wireless network capability, featuring the advanced Wi-Fi 6E and Bluetooth 5.2 technologies, allowing for seamless and fast data transmission through its internal 2T2R antennas, thereby ensuring reliable performance even in high-volume applications while eliminating any interference from cables.
2.5GbE High-Bandwidth Low-Latency Data Transmission
The panel PC offers 2.5GbE connectivity, making it ideal for large-scale workloads that require high bandwidth. This feature is particularly beneficial for implementing IoT solutions such as smart surveillance and home automation systems, where fast and reliable communication is crucial. By leveraging this technology, businesses can achieve lightning-fast transmission speeds and ensure efficient automation processes.
Touch-enabled BIOS
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.
Shortcut to boot device setup
The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.
Easy-access function keys
The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.
On-screen keyboard
An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.
Customize Your Installation with Various Mounting Options
The AFL4-ADL series features a 75x75 or 100x100 VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs.

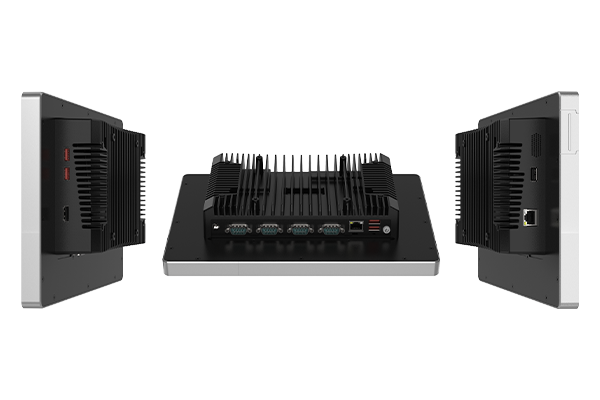

I/O Interfaces
{{ title }}
Dimensions
Optional Mounting Kits
Related Products
Hardware Spec.
| System | |
|---|---|
| CPU | 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P) |
| On-board Memory | Dual channel On board LPDDR4X 8G |
| Communication | |
| Wireless |
IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.0 (M.2 2230 A-key) |
| I/O Interface | |
| Ethernet |
LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225-LM 2.5GbE controller (Intel AMT) |
| Audio | AMP 1.2W (internal speaker) |
| Expansion |
1 x M.2 M key 2242 (PCIE Gen4 x 4) 1 x M.2 M key 2280 (PCIE Gen4 x 4) |
| Audio Codec | Realtek ALC888S |
| Power | |
| Input | 12V DC |
| Environment | |
| Operating Temperature | -10°C ~ 50°C |
| Safety & EMC | CE/EMC , FCC , RED (Class A) |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C ~ 60°C |
| IP Level | Front panel IP65 |
| Physical Characteristics | |
| Color | Silver+Black |
| Mounting | Wall, Rack, Stand, ARM, VESA100 |
| Construction Front Panel | Aluminum die casting+SECC |
| LCD | |
| Size | 10.1” |
| Resolution | 1280 x 800 (16:10) |
| Brightness (cd/m2) | 350(cd/m²) |
| Contrast Ratio | 900:1 |
| Viewing Angle (H-V) | 170°/170° |
| Backlight MTBF | 30000 hours |
| Touch | |
| Touch Screen |
Multi-point projected capacitive type (anti-UV / anti-glare coating,support gloves) Surface hardness: ≥7H |
| Touch Controller | EETI EXC 81 Series |
| I/O Interface | |
| I/O Interface | 2 x RS-232 (by DB9) |
| 2 x RS-232/422/485 (by DB9) | |
| 2 x LAN | |
| 1 x DC Input Jack | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 2 x USB 3.2 Gen1x1 | |
| 1 x USB2.0 | |
| 1 x HDMI™ (up to 3840*2160 @30Hz) | |
| 2 x LAN (Intel® I225V 2.5GbE controller) | |
| 2 x USB 3.2 Gen2 | |
| OS Support | |
| OS Support |
Windows 10 IoT Linux |
Ordering Information
| AFL4-W101-ADLP-i7/8G-R10 | 10.1" 350cd/m² 1280x800 fanless panel PC with Intel® Core™ i7-1260P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10 |
|---|---|
| AFL4-W101-ADLP-i5/8G-R10 | 10.1" 350cd/m² 1280x800 fanless panel PC with Intel® Core™ i5-1240P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10 |
| AFL4-W101-ADLP-i3/8G-R10 | 10.1" 350cd/m² 1280x800 fanless panel PC with Intel® Core™ i3-1220P on-board processor, 8GB LPDDR4x on-board, Wi-Fi 6E and Bluetooth 5.2 module, PCAP touch, 12V DC, R10 |
