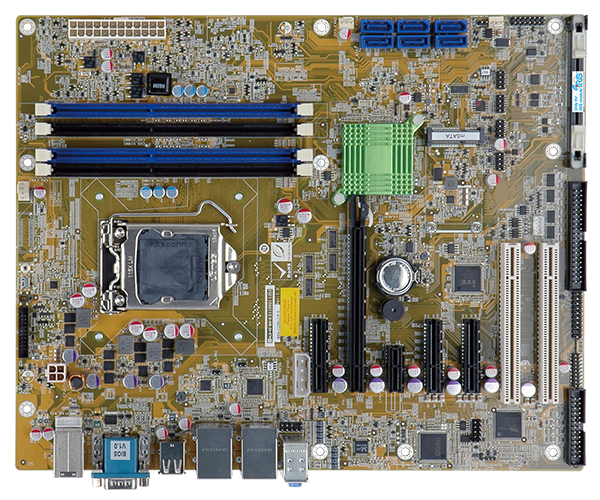

IMBA-C2260-i2

ATX motherboard supports 22nm LGA1150 Intel® Xeon E3, Core™ i3, Pentium® and Celeron®

  • Overview

    ● LGA1150 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® processor supported
    ● Dual-channel DDR3 1600/1333 MHz support up to 32 GB
    ● Intel® PCIe GbE with Intel® AMT 9.0 support
    ● Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
    ● USB 3.0, SATA 6Gb/s and mSATA supported
    ● High-speed interface for one PCIe x8 or two PCIe x4 add-on cards
    ● IEI jumper-less function
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
    ● Support IPMI 2.0 via iRIS-2400 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1156A-RS-R11
      CF-1156E-R11
      Display
      DisplayVGA (up to 1920x1200 @ 60 Hz)
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x PCIe x16 slot
      3 x PCIe x4 slot (support PCIe x1)
      Default setting
      1 x PCIe x8 Gen 3 + 2 x PCIe x4 Gen 3 signal
      Optional setting
      1 x PCIe x1 slot
      2 x PCI slot
      FSB
      FSBN/A
      I/O Interface
      AudioRealtek ALC662 HD audio codec (Line out, Mic) (2x5 pin)
      Digital I/O8-bit digital I/O (4-bit input/4-bit output)
      EthernetLAN1: Intel® I217LM with Intel® AMT 9.0 support
      LAN2: Intel® I210-AT PCIe controller with NCSI support
      I/O Interface9 x RS-232
      1 x RS-422/485
      2 x USB 3.0
      11 x USB 2.0
      1 x 4-pin wafer for SMBus
      1 x 4-pin wafer for I2C
      1 x PS/2 KB/MS
      1 x TPM connector (2x10 pin)
      I/O Interface
      I/O Interface1 x RS-232
      1 x LPT
      2 x LAN LED
      1 x KB/MS
      1 x I2C
      1 x Internal RS-422/485
      4 x Internal RS-232
      4 x USB 3.0
      1 x SMBus
      2 x USB 2.0
      4 x Internal USB 2.0
      Option
      iRIS1 x iRIS-2400 slot
      Power
      Power consumption3.3V@0.57A, 5V@4.50A, 12V@0.14A, Vcore_12V@5.20A, 5VSB@0.19A
      (Intel® E3-1240 v3 3.4GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory)
      System
      ChipsetIntel® C226
      CPUIntel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
      CPU SocketLGA1150
      Memory Max.Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM ECC and non-ECC
      unbuffered DIMMs support up to 32GB
      Storage1 x mSATA (colay SATA 6)
      6 x SATA 6Gb/s (RAID 0/1/5/10 support)
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      IMBA-C2260-i2-R11ATX motherboard supports 22nm LGA1150 Intel® Xeon E3, Core™ i3, Pentium® and Celeron® per Intel® C226, DDR3, VGA, Dual Intel® PCIe GbE, Four USB 3.0, Six SATA 6Gb/s, HD Audio, iRIS-2400 and RoHS
    • Package Contents

      • 1 x IMBA-C2260-i2 single board computer

      • 1 x I/O shielding

      • 1 x Utility CD

      • 2 x SATA cable 1 x QIG
