PPC2-CW133-EHL

13.3” Fanless Panel PC with Intel® Celeron® Processor J6412

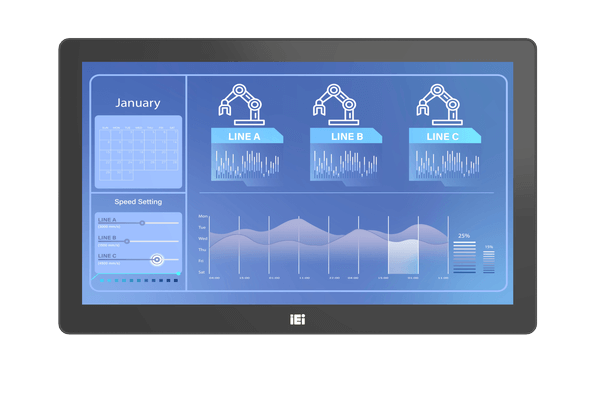

PPC2-CW133-EHL Front
PPC2-CW133-EHL Right Side
PPC2-CW133-EHL Left Side
PPC2-CW133-EHL IO
  • PPC2-CW133-EHL Front
  • PPC2-CW133-EHL Right Side
  • PPC2-CW133-EHL Left Side
  • PPC2-CW133-EHL IO
» Intel® Elkhart Lake Platform
» Dual M.2 (M.2 B Key & M.2 M Key) support
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Newly Designed Panel Mount Kit

Hardware Spec.

System
Cooling method / System Fan Fanless
CPU Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10w
On-board Memory 8GB dual-channel on-board LPDDR4x
Storage 1 x 2.5” HDD/SSD drive bay
I/O Interface
Ethernet 2 x 2.5GbE LAN via Intel I225-V
Expansion 1 x M.2 2242/2280 B key (PCIe Gen3 x1 + USB 3.0)
1 x M.2 2242 M key (PCIe Gen3 x2)
Environment
Operating Temperature -10°C ~ 60°C
Safety & EMC CE, FCC Class A
Humidity 10% ~ 95%@40°C, non-condensing
Storage Temperature -20°C ~ 60°C
Physical Characteristics
Color Black
Mounting VESA 75/100
Panel, Wall, Rack, Stand and Arm
LCD
Size 13.3”
Resolution 1920 x1080 (16:10)
Brightness (cd/m2) 400
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.153 x 0.153
Viewing Angle (H-V) 170°/170°
Backlight MTBF 50,000 hours
Touch
Touch Screen Multi-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: ≧7H
Touch Controller EETI 8X
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x Clear CMOS Button
1 x DC Input Jack
1 x HDMI™ (up to 3840*2160 @30Hz)
2 x LAN
2 x Power In -
1 x 12V-24V DC jack
1 x Power terminal block (2-pin)
1 x Power Switch
1 x Reset Button
2 x RS-232 (by DB9)
1 x RS-232/422/485
4 x USB 2.0
2 x USB 3.2 Gen2x1 (10Gb/s(Type A))

Ordering Information

PPC2-CW133-EHL-J1/8G-R10 13.3” 350 cd/cm² 1920x1080 Fanless Panel PC with Intel® Celeron® Processor J6412, TDP 10W, 8GB LPDDR4x on-board, HDMI™ output, black, 12-24V DC input, projected capacitive touchscreen with AG, R10

Package Contents

Package Content
  • 1 x PPC2-CW133-EHL

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x Panel Mount Kit

  • 1 x QIG

  • 1 x Screw Pack
